ORTOFON SPU Classic N E

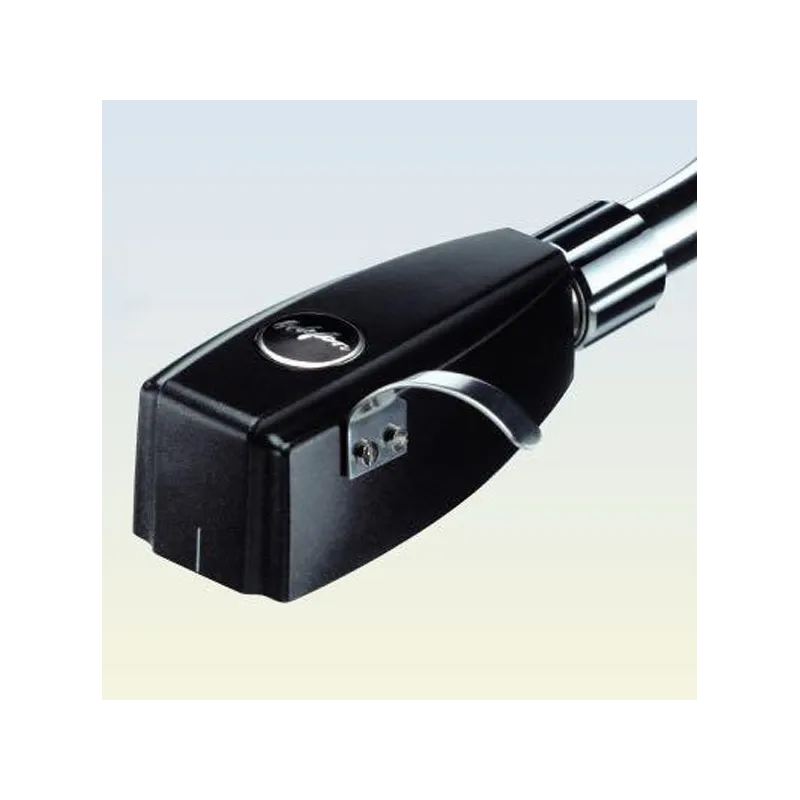

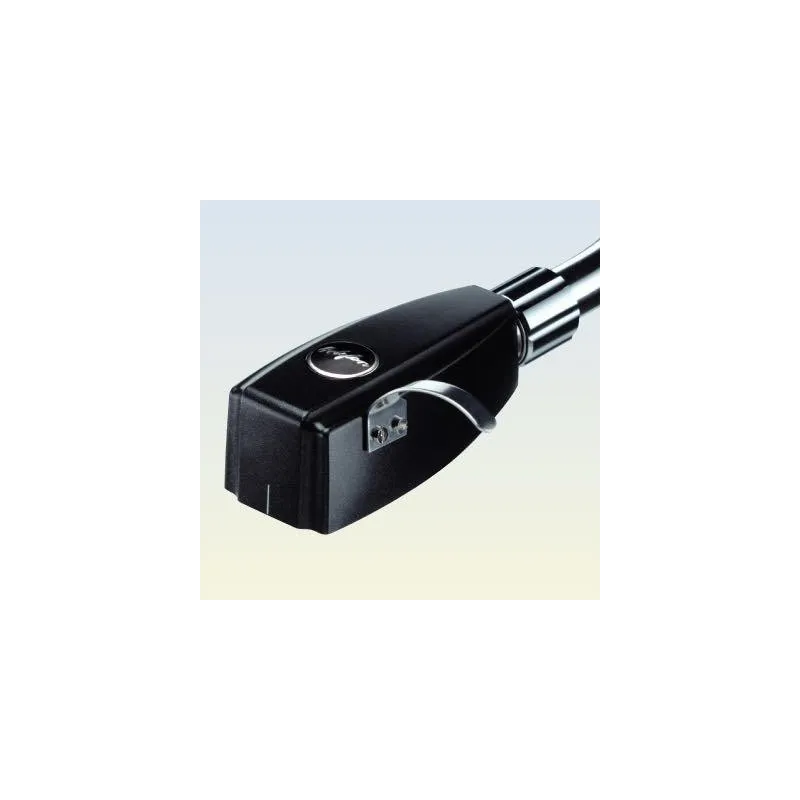

Ortofon SPU Classic N E. Mobile coil cartridge (MC).
Bankwire payment (3% DTO)
If you choose Bankwire payment you will get a 3% discount on your order.
Shipping Policy
Return policy
Ortofon SPU Classic N E. Mobile coil cartridge (MC).
The SPU Classic N can be defined as the version of the SPU Classic GM mkII devoid of the characteristic SPU integrated capsule holder, allowing it to be used with all types of reading arms. Recall that the SPU, was introduced in the market in 1958 in response to the demand for capsules to reproduce the new stereo vinyl records. The acronym "SPU" is the acronym for "stereo pick-up" or "capocaptora capsule" since until then - that is to say during the decades of the 50 'and 60' of the last century - the capsules in the market were called " Capsules "to dry. Of the SPU is also fundamental the relevance that had in his development Robert Gudmandsen, one of the most brilliant engineers of Ortofon. Based on a 10-year-old technology and Ortofon's experience in the design of monophonic capsules, the SPU immediately defined the quality standard for sound-absorbing caps for professional and audio -phile applications, while setting the way forward In the design of products of its class for the next 57 years. Supplied as standard with an SPU adapter in N, the SPU Classic N is a moving coil capsule that assembles a 18-inch radius Nude spherical diamond diamond needle, which in conjunction with Ortofon's exclusive SPU signal generation concept Allows to reproduce with a fresh, vital and spacious sound (thanks to an excellent separation between channels) all type of recordings in vinyl.
Technical characteristics:
- Mobile coil cartridge (MC) of very high performance.
- Designed to fit into standard holder.
- SPU adapter in N supplied as standard.
- Output voltage from 0.2 mV to 1 kHz and 5 cm / s.
- Frequency response of 20-25,000 Hz (cut-off points at -3 dB).
- Recommended Load Impedance: MC /> 10 ohms.
- Tracking Skill: 65 um (at 315 Hz).
- Dynamic Compliance: 8 um / mN.
- Recommended Support Force: 4 g.
- For moderate and high mass reading arms.
- Weight: 13 g.
