EVO AS Premium Arm Tube and Wiring

The EVO AS arm utilizes an S-shaped aluminum tube with internal damping and a bayonet-style universal headshell. This design is not only aesthetically striking on any turntable but also offers significant technical advantages. The S-shaped geometry reduces groove angle distortion, resulting in exceptional tracking. Additionally, the user-replaceable headshell facilitates cartridge swapping for music enthusiasts. Securing the arm tube with a single screw allows for easy azimuth adjustment. As for internal wiring and headshell cables, high-purity silver-plated flexible conductors combined with crystal are used, ideal for conveying low-level phonographic signals with high-fidelity detail. Each cable is equipped with a gold-plated cartridge connector to ensure a secure and quality connection.

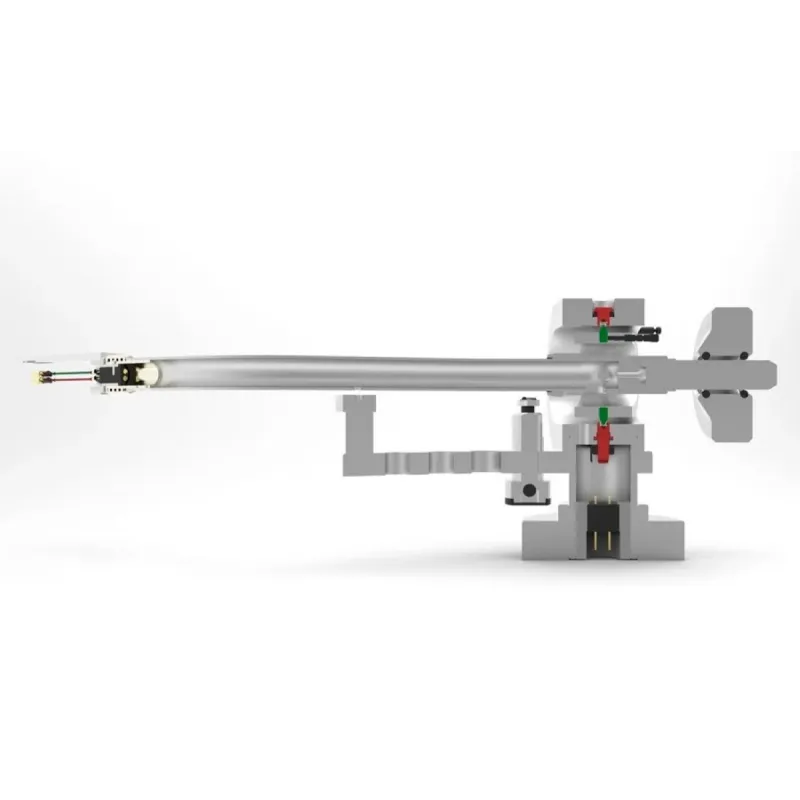

Arm Bearing

The arm rotates on a quality ABEC 7 inverted gimbal bearing with 4 stainless steel tips. This type of bearing offers high stability and low friction, ensuring precise and clean tracking. The stainless steel mass housing that houses the bearing provides the necessary stability and keeps unwanted cartridge and arm critical parts vibrations and resonances at bay. Furthermore, the open design of the gimbal's outer ring helps to avoid bell mode resonance. While the bearing design does not require maintenance, adjustment is easy if necessary.

Tracking Force and VTA Adjustment

Each arm comes with two counterweights to offer broad compatibility with a variety of cartridges. These counterweights are dampened with TPE to effectively control resonance. The EVO Premium counterweights fully encase the TPE for a cleaner and aesthetic appearance. It is recommended to use the counterweight closest to the pivot that allows achieving the desired tracking force, thus ensuring maximum stability and low arm inertia.

The arm height can be continuously adjusted by loosening and tightening the set screws on the arm base, allowing for precise adjustment according to the user's VTA requirements. Experimenting with VTA and azimuth is essential to maximize the performance of phono cartridges.

Pro-Ject Arm Design Philosophy

The arm is a crucial part of a turntable and can significantly influence sound quality. After extensive listening and performance testing with various types of bearings, arm materials, and cartridge combinations, we have developed the EVO and EVO Premium series. These arms are the result of our dedication to research and continuous improvement.

Ten Key Research and Development Ideas

For over three decades, Pro-Ject has been at the forefront of turntable arm design.

Our research has led us to these ten key ideas:

1. Damped counterweights and gimbals with large mass bearings reduce arm resonance.

2. A one-piece arm tube increases rigidity and transparency.

3. Low-compliance cartridges perform best with high effective mass arms.

4. A large mass flange is crucial for securely attaching the arm to the plinth.

5. A variety of counterweights optimize arm stability and inertia.

6. A tapered arm tube shifts resonance away from the cartridge and reduces moving mass.

7. The right combination of arm and cartridge is crucial for precise and controlled bass tracking.

8. Good conductors, such as high-purity silver and copper, enhance the phono cartridge signal.

9. A solid arm support reduces overall resonance.

10. Precision arm manufacturing ensures optimal performance.

The EVO series is based on these principles, using 4-point low-friction bearings and Swiss design to ensure precise tracking and expansive soundstage.

Turntable and Arm Compatibility

EVO arms are compatible with a wide range of Pro-Ject turntables. Different arm lengths can be selected to suit individual user needs. It is important to ensure that the arm length is compatible with the turntable plinth for optimal performance. Additionally, detailed instructions are provided for installing and adjusting EVO arms in different turntable configurations.

Additional Information

- Available Lengths: 9", 10", 12"

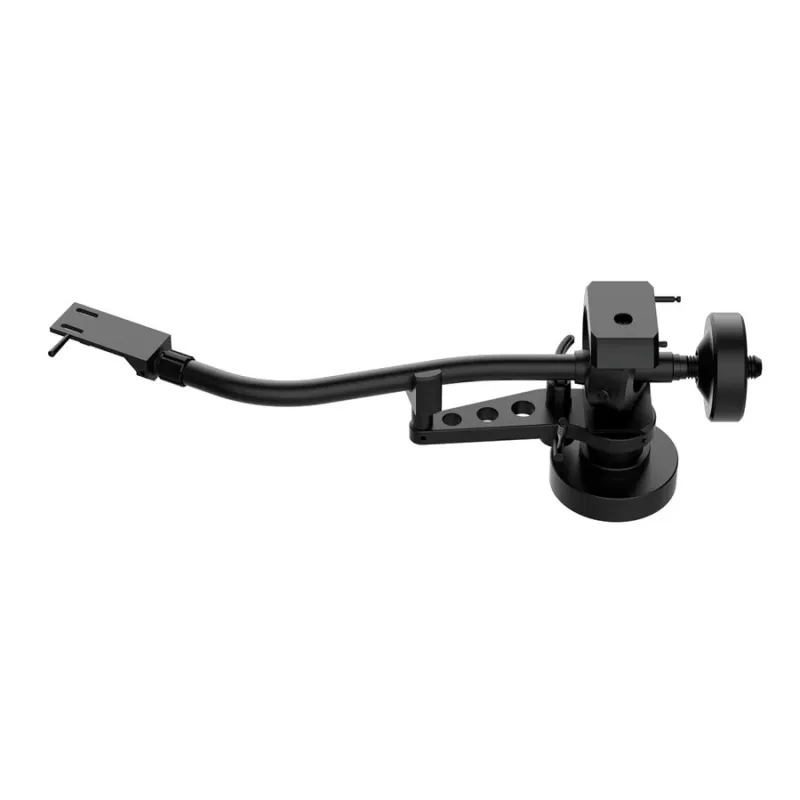

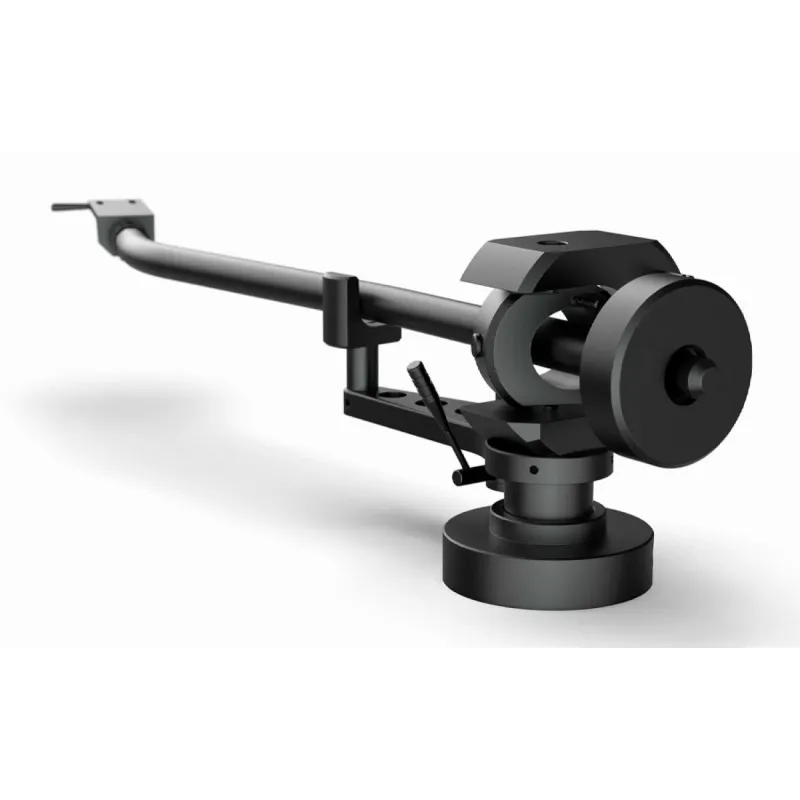

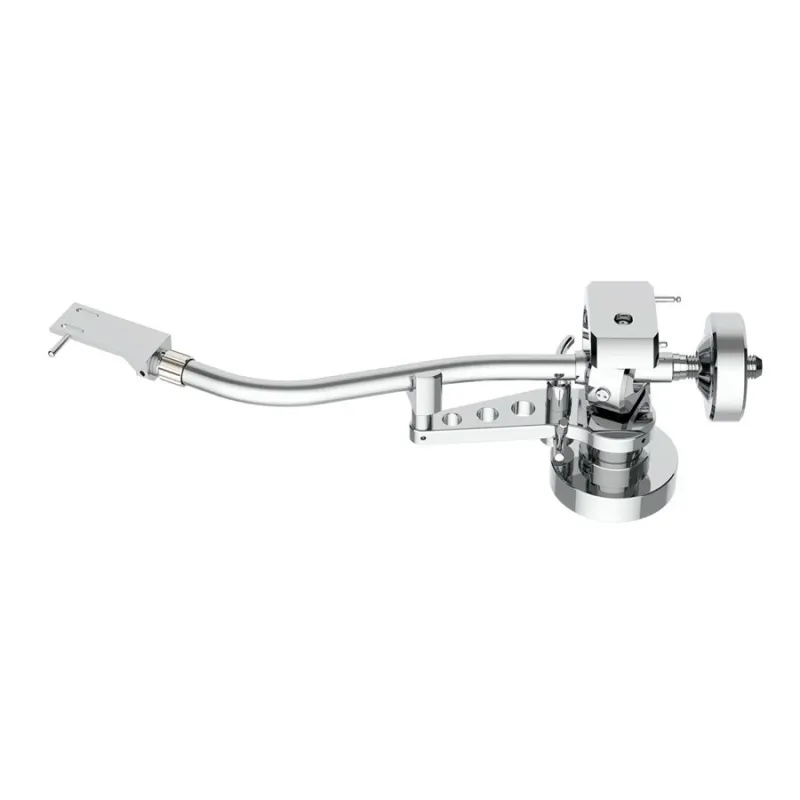

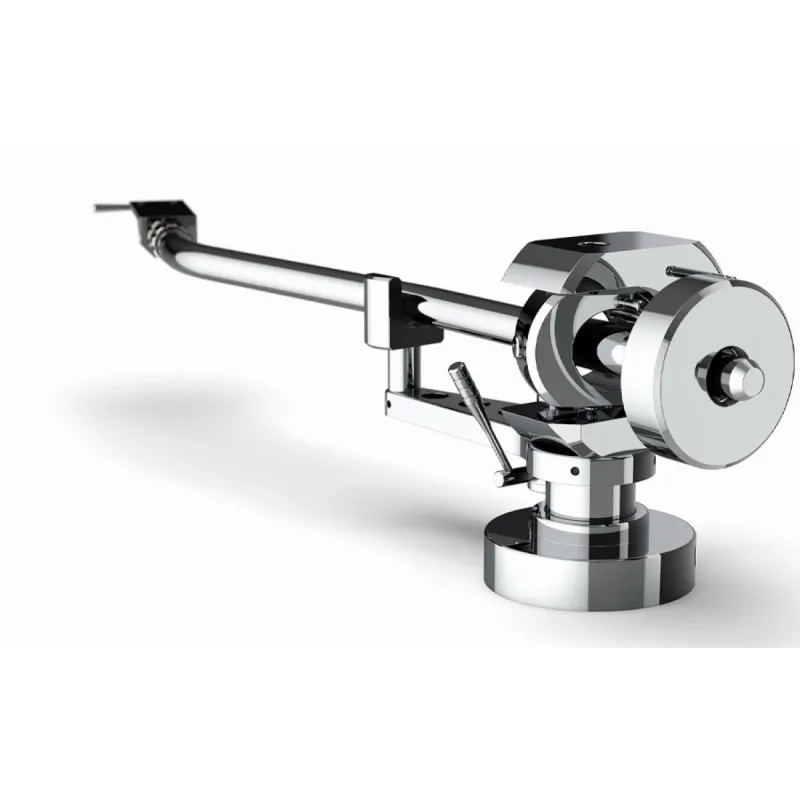

- Available Finishes: High Gloss Black, Hand-Polished Silver

Features:

High-purity silver internal wiring and headshell.

Heavy stainless steel bearing block.

Massive internal arm bearing design (solid ring type)

Swiss quality ABEC 7 inverted bearing

4 stainless steel tips on gimbal bearings.

High precision CNC machining

TPE-damped counterweight design (enclosed)

Aluminum arm tube with bayonet-style headshell

Outer ring is open to avoid bell mode resonances.

Hand-polished silver aluminum parts.

Precise azimuth and VTA adjustment

Silicone-damped arm lifter can be adjusted to suit arm height

Gold-plated 5-pin DIN output socket

Available as AS Premium Black and AS Premium HG in 9, 10, and 12″

Made in Europe

Specifications (12 / 10 / 9")

Effective arm length: 304.8 / 254 / 230 mm

Mounting distance: 291.6 / 238 / 212 mm

Offset angle: 18 / 21.4 / 24°

Overhang: 13.2 / 16 / 18 mm

Cartridge mounting slots pitch: 12.7 mm

Effective mass with headshell: 25.5 / 22 / 20 g

Effective headshell mass: 10 g

Cartridge weight: 7-22 / 6.5-18 / 6.5-16 g

Tracking force range: 0-3g

Minimum null point: 125 / 126.8 / 130.6 mm

Maximum null point: 251.7 / 248.2 / 243.7 mm

Arm weight: 510 / 507 / 506 g
