AUDIOMATICA CLIO 14 Standard
Professional electroacoustic measurement system (CLIO FW-03 hardware + CLIO 14 software).
24-bit resolution / up to 192kHz | USB interface with XLR/jack inputs and RCA/jack outputs
CLIO 14 software: includes Standard and QC (automated quality control) versions
Measurement of frequency response, distortion, impedance, Thiele & Small, directivity, etc.
Compatible with Audiomatica microphones, turntables, QCBOX Model 5, and laboratory accessories
Built-in signal generator and external synchronization via Trigger
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?
Audiomatica CLIO X 14. Professional Electroacoustic Measurement System
The Audiomatica CLIO X 14 is a state-of-the-art electroacoustic analysis and measurement system that integrates next-generation hardware with powerful software to deliver unmatched precision, reliability, and versatility. Designed for both R&D laboratories and production line quality control, CLIO X 14 is the complete solution for loudspeaker manufacturers, acoustic engineers, certification labs, and audio professionals.
Key Features
High-Precision USB Audio Interface
Includes the new CLIO FW-03 interface, a professional-grade bidirectional audio device supporting up to 192 kHz / 24-bit resolution.
Versatile CLIO 14 Software Suite
Bundles both the Standard and QC (Quality Control) versions—ideal for automated testing in industrial environments.
Comprehensive Acoustic & Electrical Testing
Measures frequency response, harmonic distortion, impedance, Thiele & Small parameters, and performs both time- and frequency-domain analyses.
Automated Quality Control
The CLIO QC platform enables seamless integration into production workflows, with customizable scripts, full automation, report generation, and SQL database logging.
Full Compatibility with Audiomatica Accessories
Works with QCBOX Model 5 switchboxes, precision measurement microphones, anechoic chambers, automatic turntables, and more.
Technical Specifications

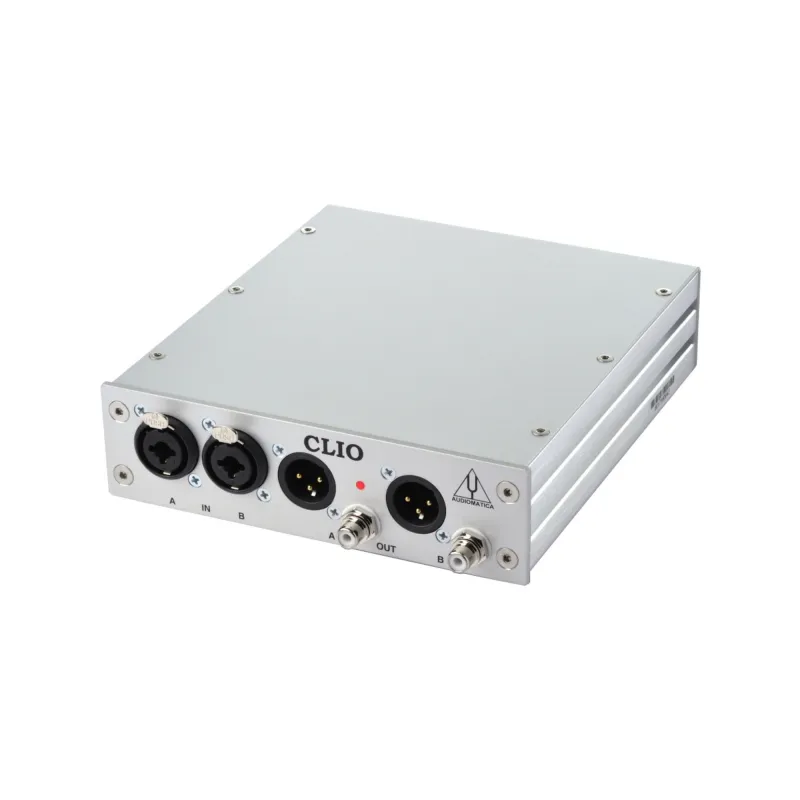

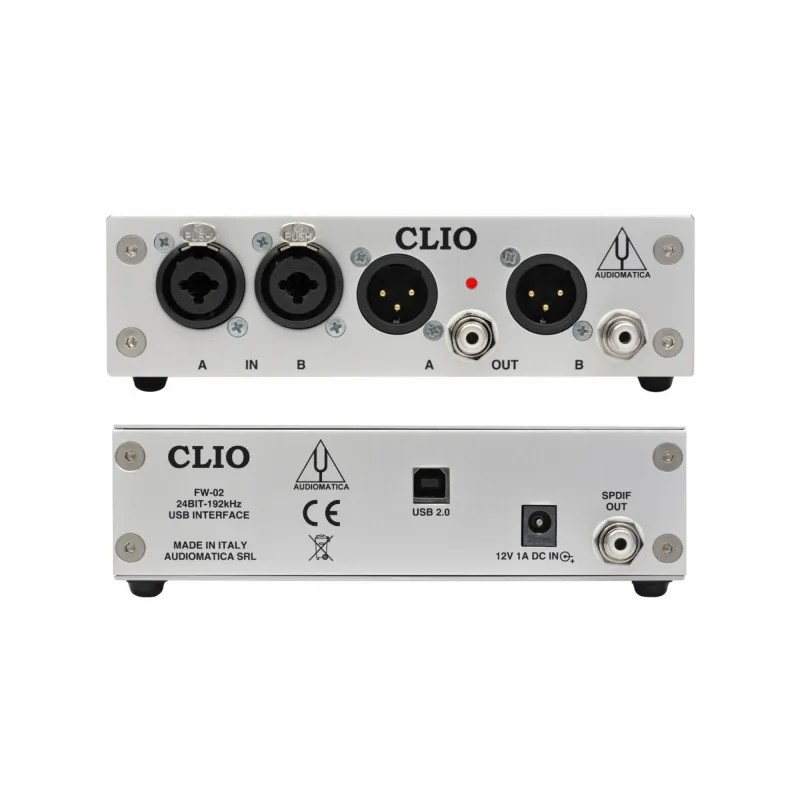

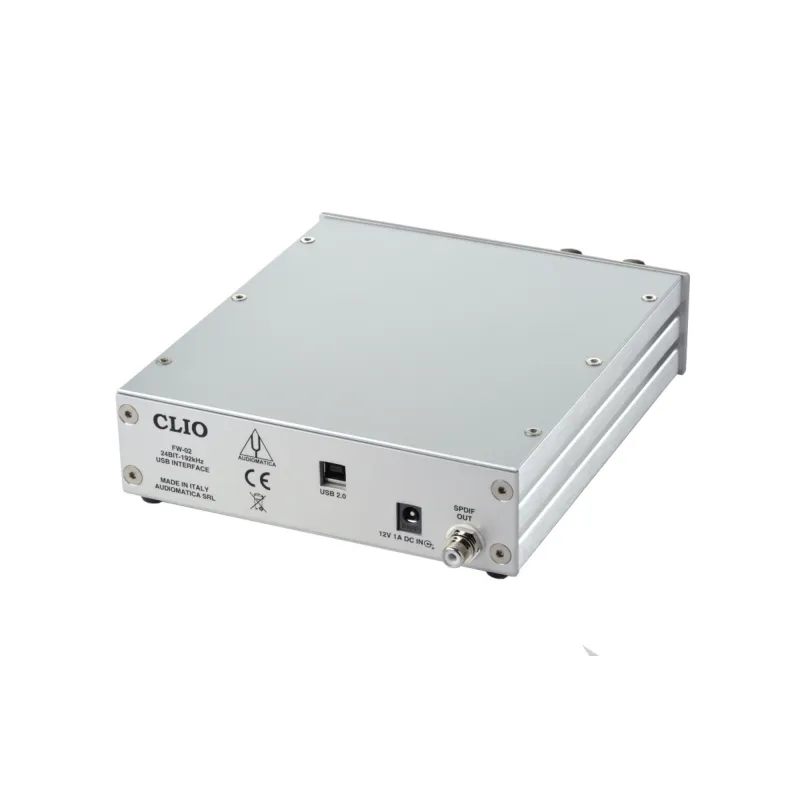

CLIO FW-03 | USB Audio Interface
Resolution: 24-bit / up to 192 kHz
Inputs: 2 × balanced analog (XLR/Combo Jack)
Outputs: 2 × analog (RCA / Jack)
Mic input: Phantom-powered (48 V)
Built-in Signal Generator: Sine, pink noise, white noise, multi-tone
Trigger Output: For external device sync
CLIO 14 Software (Standard & QC Included)
CLIO Standard
Frequency response, phase, distortion, impedance
MLS, Log-Sweep, Burst, and FFT analysis

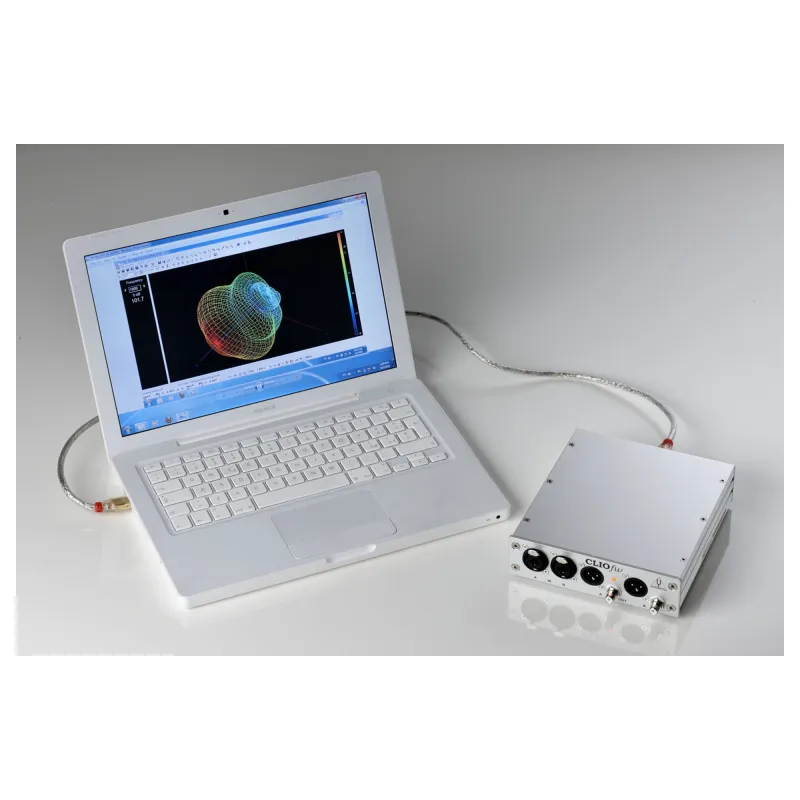

Directivity measurement (3D Balloon, Polar Plots)
Automatic Thiele & Small parameter extraction
Anechoic or free-field measurements
Export formats: .txt, .wav, .mls, .zma, .frd
CLIO QC
Fully automated production line testing
Custom scripting and sequential test execution
External control via TCP/IP
PDF report generation and SQL database integration
Testing of speakers, drivers, headphones, microphones, amps, etc.
System Requirements
OS: Windows 10 / 11 (64-bit)
CPU: Intel i5 or higher
RAM: Minimum 4 GB (8 GB recommended)
USB: USB 2.0 or higher
Display: Minimum resolution 1280 × 800
Compatibility & Expansion
Works with Audiomatica MIC-01 and MIC-02 microphones
Compatible with CLIO Turntable and QCBOX Model 5
Supports integration with measurement chambers, environmental test setups, and automated test benches
Typical Applications
R&D and testing of high-fidelity loudspeakers, studio monitors, and professional drivers
Evaluation of microphones, headphones, and amplifiers
Industrial audio quality control
Acoustic noise testing for consumer electronics
Acoustic compliance verification in lab environments
Why Choose CLIO X 14
CLIO X 14 is Audiomatica’s most advanced measurement platform to date, combining intuitive operation with professional-grade accuracy and expandability. It’s the preferred choice for demanding users who value repeatable results, system flexibility, and workflow efficiency in the field of electroacoustics.
