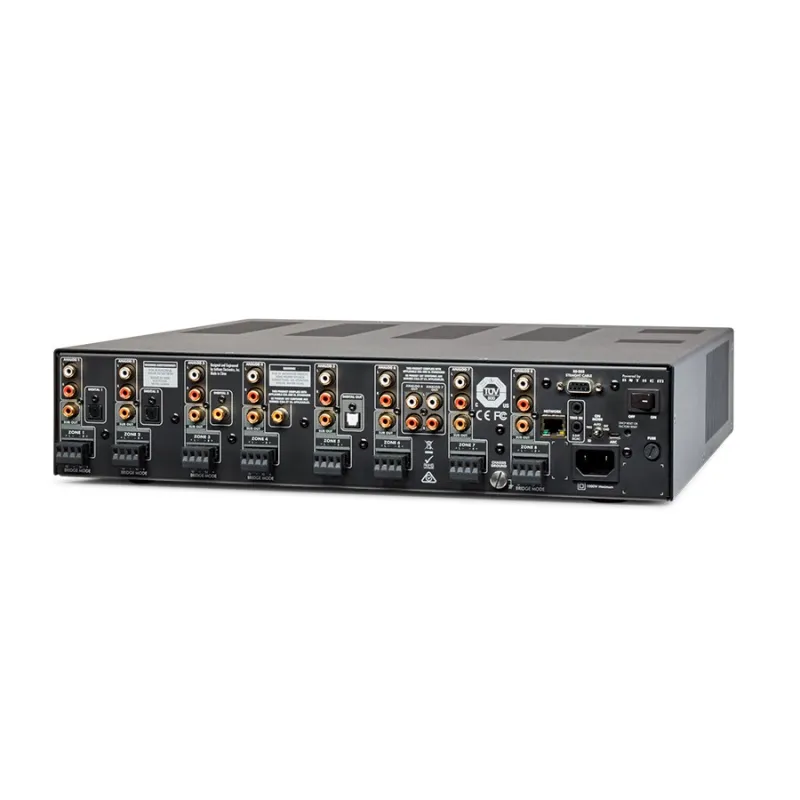

ANTHEM MDX 16
ANTHEM MDX 16
Very high performance 16-channel power amplifier. Power rating 16x60 W at 8 ohms.
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?
The MDX 16, part of Anthem's advanced MDX series of distributed sound amplifiers, is an elegant 16-channel power amplifier that offers exceptional versatility. Capable of powering up to 8 zones, each with its own subwoofer, it also acoustically optimises each space using the sophisticated ARC Genesis room correction system. Designed for state-of-the-art custom applications, the MDX 16 combines reliability, power and superior sound quality to meet the requirements of the most complex installations, all facilitated by simplified setup and calibration through intuitive web-based controls and software specifically designed to suit the user's needs.
Each zone can be configured in a fully customisable way, from input source selection to zone naming, with independent settings for parameters such as cutoff frequency, level, phase and polarity. The output section of the MDX 16 features high power Class D amplification, which can be substantially increased in mono configuration for each stereo channel pair, along with high efficiency and Anthem's unique Advanced Load Monitoring (ALM) protection system, which protects the audio signal without intrusion, ensuring consistent performance under extreme conditions.
Additionally, the MDX 16 includes a DAC section with 24-bit/192 kHz technology and switching functionality that allows digital inputs to be interconnected between multiple MDX 16 units, ensuring seamless and expandable integration. Compatible with leading home automation systems such as Crestron, Control4, Savant, ELAN, URC and RTI via IP/RS232 connection after installation of the appropriate controller, Anthem's MDX 16 represents the latest in amplifier technology for the modern, connected home.
Technical features:
High-performance power amplifier for distributed sound.
16 channels/8 zones with the possibility to configure each stereo pair in mono.
Output section configured in high-efficiency Class D.
Web-based configuration menu adaptable to the user's needs.
Anthem Advanced Load Monitoring (ALM) protection technology.
Built-in Anthem ARC Genesis room correction system.
DAC section with 24-bit/192 kHz technology.
4 digital (2 coaxial and 2 optical) inputs and 1 digital (optical) output.
Possibility of linking multiple MX units via digital and analogue.
Preset user DSP profiles for Paradigm CI loudspeaker systems.
Extensive customisation possibilities, with subwoofer for each zone.
Compatible with the most popular home automation systems.
Output power of 16x60 W at 8 ohms or 16x120 W at 4 ohms.
200 W power at 8 ohms for each stereo pair bridged to mono.
Frequency response 10-20,000 Hz, +/-0.5 dB.
Dimensions: 432x99x432 mm (W x H x D).
Weight: 10.8 kg.
