MONITOR AUDIO SoundFrame 1 In-Wall
3-way in-wall speaker.
Drivers: 165 mm RST woofer + 102 mm IDC driver + 25 mm pivoting C-CAM tweeter
Ultra-slim design: only 87 mm deep, discreet wall integration
Sealed enclosure, simple and versatile installation
55 Hz – 35 kHz · 86 dB · 106 dB SPL · 100 W RMS
Grilles with pre-designed images or your own photos; glossy black/white frames or frameless
Price per unit.
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?
Monitor Audio SoundFrame 1 In-Wall: Customizable 3-Way Architectural Speaker
The Monitor Audio SoundFrame 1 In-Wall combines audiophile-grade performance with a fully customizable aesthetic to seamlessly blend into any living space. With its shallow 87 mm depth, it integrates discreetly into the wall without compromising sound quality.

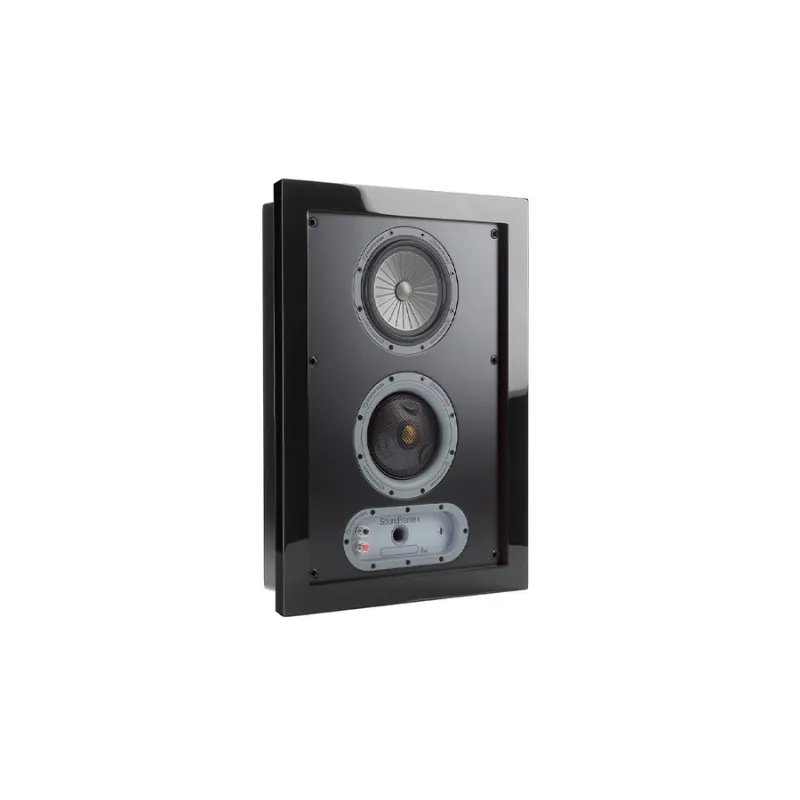

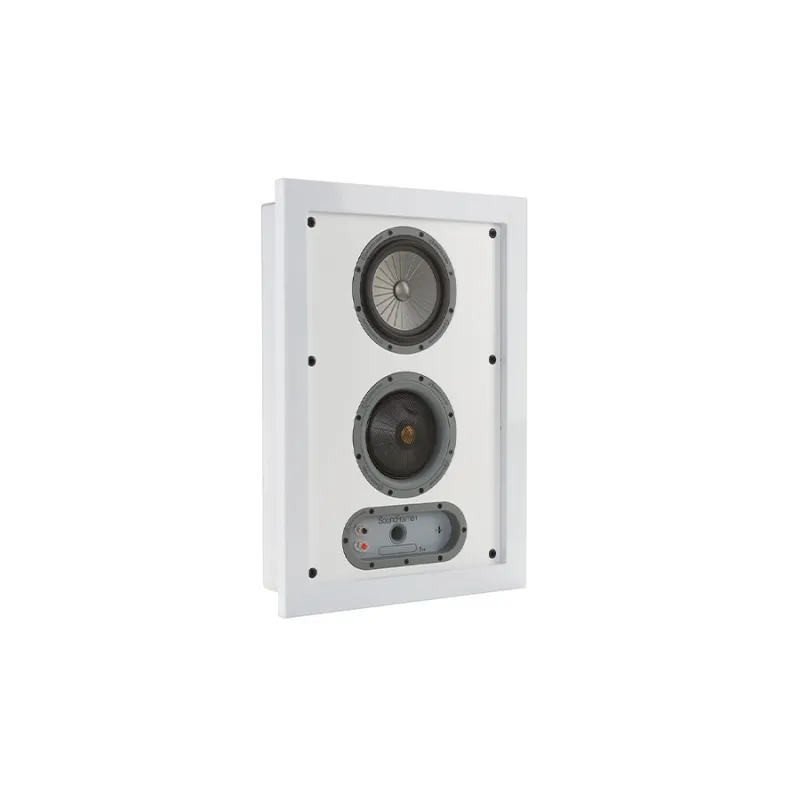

Its innovative true 3-way configuration features a 165 mm (6.5”) C-CAM® RST woofer, a 102 mm (4”) IDC® midrange driver, and a pivoting 25 mm (1”) C-CAM® Gold Dome tweeter, delivering clear, detailed, and well-dispersed sound throughout the room.

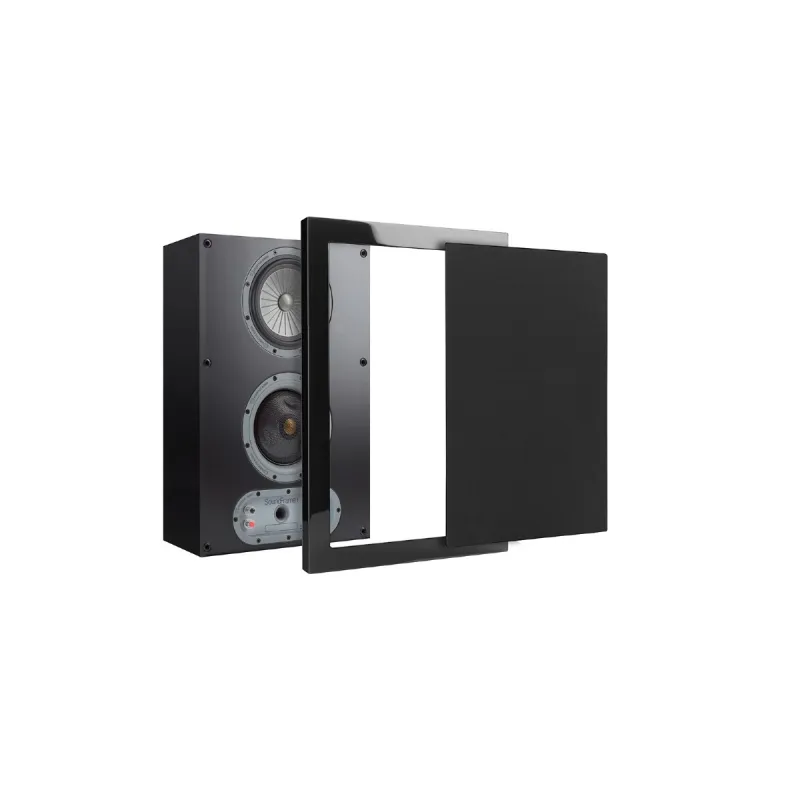

For unmatched design flexibility, Monitor Audio allows extensive custom grille personalization: choose from the brand’s image gallery or supply your own high-resolution photos. Frames are available in gloss white or black lacquer, or the speaker can be installed frameless for a more minimalistic effect.
The result is an ultra-discreet, versatile, and uniquely designed audio/AV system—ideal for both high-fidelity music and home cinema applications.
Key Features
High-performance 3-way in-wall loudspeaker.
Pivoting IDC® tweeter for optimal sound dispersion.
Customizable grilles with artwork or personal photography.

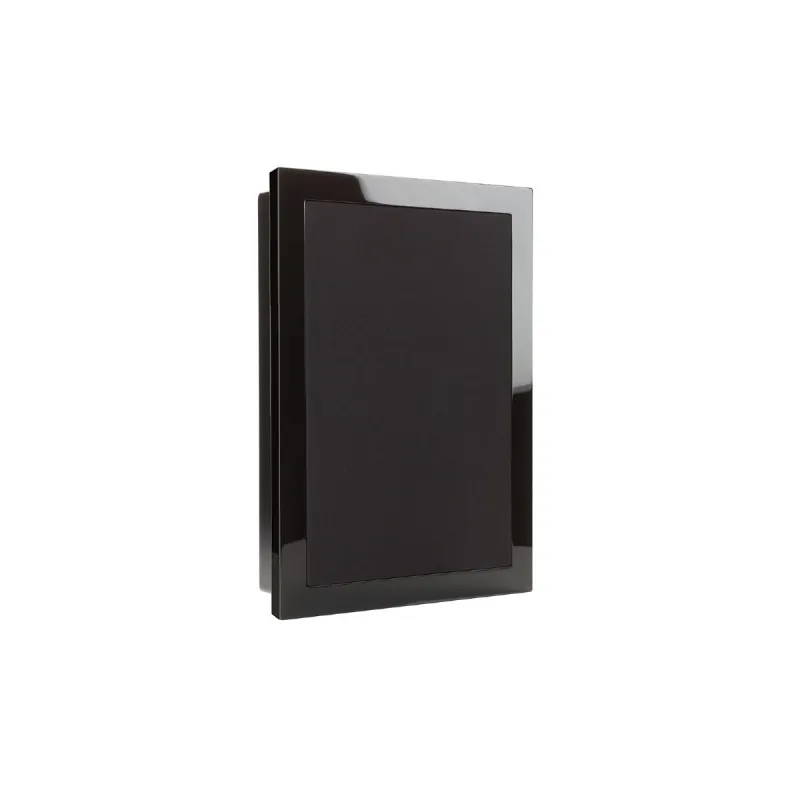

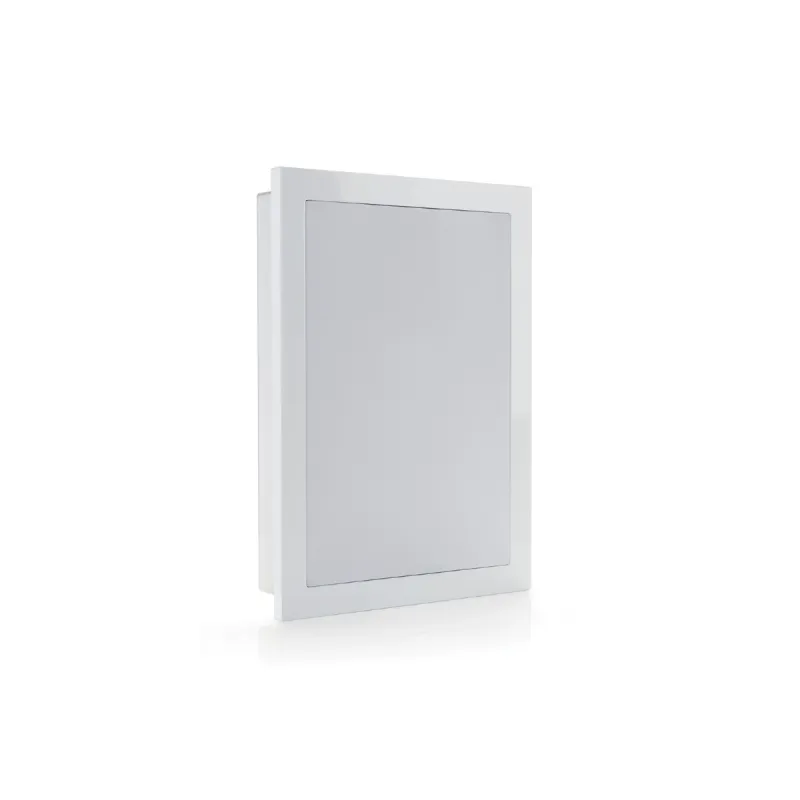

Available with gloss white or black frames, or frameless installation.

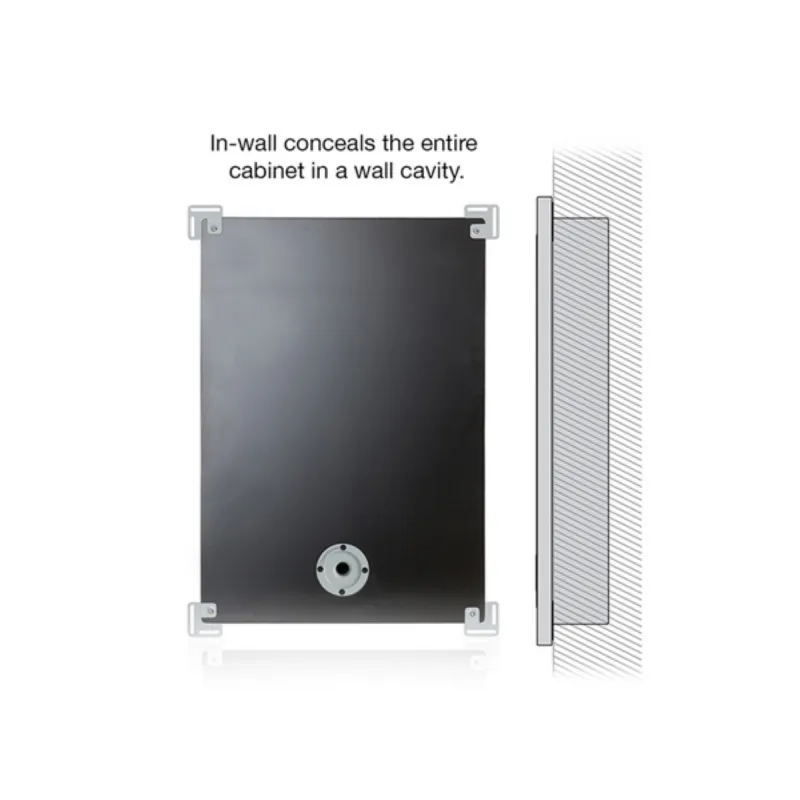

Ultra-slim design (87 mm depth) for seamless architectural integration.
C-CAM® technology ensures fast, clear, and realistic Hi-Fi sound.
Easy installation, adaptable to any interior.
Technical Specifications
Type: 3-way in-wall loudspeaker
Drivers:
1 x 165 mm (6.5”) C-CAM® RST woofer
1 x 102 mm (4”) IDC® midrange driver
1 x 25 mm (1”) pivoting C-CAM® Gold Dome tweeter
Frequency response (-6 dB): 55 Hz – 35,000 Hz
Sensitivity (1W/1m): 86 dB
Nominal impedance: 8 Ω
Maximum SPL: 106 dBA
Power handling (RMS): 100 W
Recommended amplifier power: 25 – 100 W
Crossover frequencies: 550 Hz & 3.3 kHz
Bass alignment: Sealed enclosure
Overall dimensions (with frame): 552 x 402 x 87.5 mm
Cut-out dimensions: 501 x 351 x 75 mm
Weight (packed): 7.53 kg
System configuration: True 3-way
Sold as: Single unit
