MONITOR AUDIO W3M

3-way in-wall speaker (Level 3).

MPD III tweeter → ultra-detailed highs (up to 60 kHz)

C-CAM 76 mm midrange → clear, lifelike vocals

2 RDT III 127 mm woofers → powerful, controlled bass

Performance derived from the Platinum 3G range

Quick installation: Quik-Link + Tri-Grip II

Response 45 Hz – 60 kHz | Sens. 88 dB | Power 150 W

Grill included | Optional back box (WM BOX)

Price per unit.

Colour
€956.25 €1,275.00 -25%

Have you seen it cheaper? Contact us >

Time left

Distributor stock (48-72h)

bloques info producto

Bank Transfer (3% OFF)

If you make the payment via bank transfer, you will receive an extra 3% discount on your order.

Individual Consultancy

Contact us without any obligation.

957460112
info@audiohum.com

Need to upgrade your equipment?

Would you be interested in trading in a device when purchasing this item?

Renovar equipo




Monitor Audio W3M: 3-Way In-Wall Loudspeaker (Creator Series – Level 3)

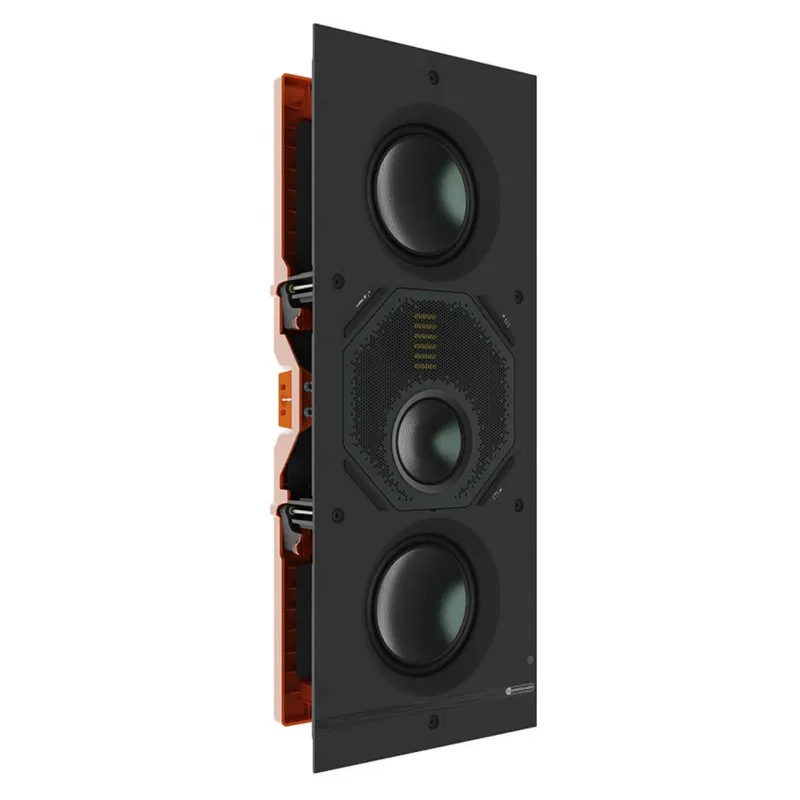

The Monitor Audio W3M is a 3-way in-wall loudspeaker from the Creator Series Level 3, designed to deliver crystal-clear and natural sound in premium custom installations. It combines a MPD III tweeter, a 76 mm (3”) C-CAM midrange driver, and dual 127 mm (5”) RDT III woofers to create a soundstage that is precise, detailed, and dynamic.

Drawing on advanced technologies from the Platinum 3G series, the W3M offers true high-fidelity performance in an architectural format, with transparency and definition comparable to Monitor Audio’s flagship models.

Installation is fast and reliable thanks to the patented Quik-Link connector, which simplifies cabling, and the robust Tri-Grip II fixing system, ensuring a secure and hassle-free fit.

Key Features

3-way in-wall loudspeaker, Creator Series Level 3.

MPD III tweeter with micro-pleated diaphragm for ultra-natural, distortion-free treble.

76 mm (3”) C-CAM midrange driver: lifelike vocals and detailed midrange clarity.

Dual 127 mm (5”) RDT III woofers: powerful, controlled, and dynamic bass.

High-End performance, derived from the Platinum 3G series.

Extended frequency response (45 Hz – 60 kHz) for natural, detailed sound.

Patented Quik-Link connector: simplified and secure installation.

Tri-Grip II fixing system: robust, professional-grade mounting.

Compatible with WM BOX back box and WM-B pre-construction bracket.

Technical Specifications

Type: 3-way in-wall loudspeaker

Drivers:

• 1 x MPD III tweeter

• 1 x 76 mm (3") C-CAM midrange

• 2 x 127 mm (5") RDT III woofers

Frequency response (-6 dB): 45 Hz – 60,000 Hz

Crossover frequencies: 650 Hz / 3,500 Hz

Sensitivity (2.83V/1m): 88 dB

Maximum SPL: 122 dB

Nominal impedance: 6 Ω

Minimum impedance: 4.8 Ω @ 150 Hz

Power handling (RMS): 150 W

Recommended amplifier power: 60 – 225 W

Dimensions (with grille): 560 x 231 x 90 mm (H x W x D)

Cut-out dimensions: 527 x 198 mm

Mounting depth: 85 mm

Adjustments:

• Tweeter: - / 0 / +

• Midrange: - / 0 / +

• Corner Compensation: On / Off

Fixing system: Tri-Grip II

Connections: Gold-plated Quik-Link terminals

Construction: Mineral-loaded ABS with paintable steel grille (UL94-V0, RoHS compliant)

Pre-construction bracket: WM-B

Optional back box: WM BOX

Weight: 4.7 kg
