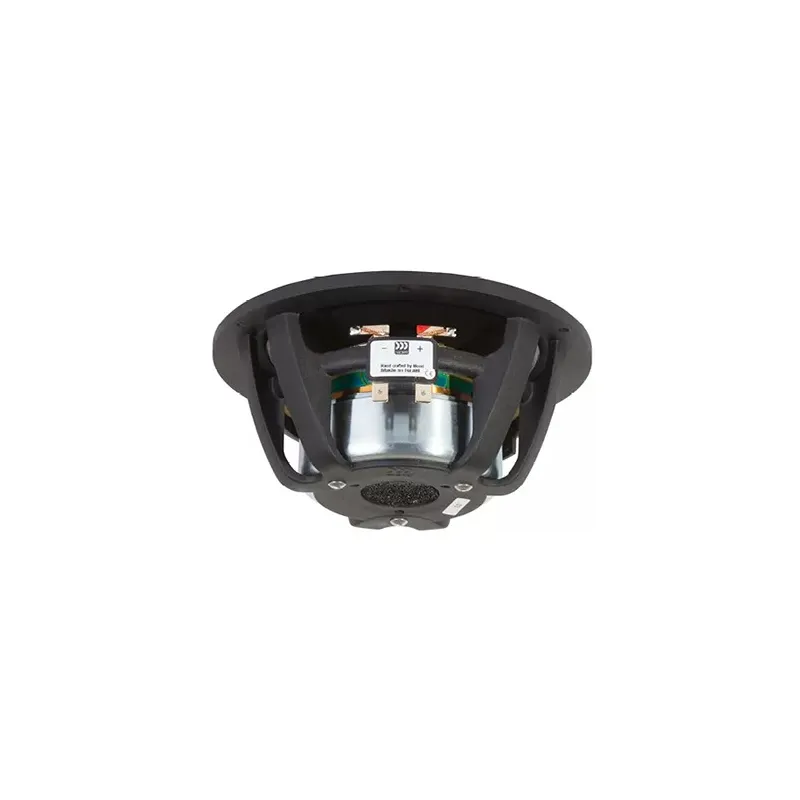

Morel CAW 638 6" Cast Frame Woofer
The Classic Advanced line of woofers is based on Morel’s classic line - the renowned MW series. These products have high power handling due to the aerodynamic Uniflow™ open chassis and large diameter spiders. This woofer has reinforced ferrite magnets for the double magnet system delivering higher magnetic flux motor, resulting in a low resonance frequency and Qts points. Latest evolution of Morel's MW-164, MW-166, and MW-168 woofers.
Product Specifications
- Nominal Diameter6"
- Power Handling (RMS)150 Watts
- Power Handling (max)1000 Watts
- Impedance8 ohms
- Frequency Response30 to 5,000 Hz
- Sensitivity86 dB 2.83V/1m
- Voice Coil Diameter3"
Thiele-Small Parameters
- Resonant Frequency (Fs)43 Hz
- DC Resistance (Re)6.4 ohms
- Voice Coil Inductance (Le)0.63 mH
- Mechanical Q (Qms)2.2
- Electromagnetic Q (Qes)0.58
- Total Q (Qts)0.46
- Compliance Equivalent Volume (Vas)0.55 ft.³
- Mechanical Compliance of Suspension (Cms)0.79 mm/N
- BL Product (BL)7.3 Tm
- Diaphragm Mass Inc. Airload (Mms)16g
- Maximum Linear Excursion (Xmax)4.25 mm
- Surface Area of Cone (Sd)119 cm²
Materials of Construction
- Cone MaterialPoly Composite
- Voice Coil Wire MaterialAluminum
- Voice Coil FormerAluminum
- Basket / Frame MaterialCast Aluminum
- Magnet MaterialFerrite
Mounting Information
- Overall Outside Diameter6.3"
- Baffle Cutout Diameter5.512"
- Depth2.72"
- # Mounting Holes6
Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)
- Sealed Volume0.26 ft.³
- Sealed F374 Hz
- Vented Volume0.7 ft.³
- Vented F337 Hz
Morel CAW 638 6" Cast Frame Woofer
- BrandMorel
- ModelCAW 638
- Part Number297-084
- UPC844632066016
- Product CategoryWoofers
- Unit of MeasureEA
- Weight3.8 lbs.
