ACCUTON BD30-6-458 (Contact us to know the price)

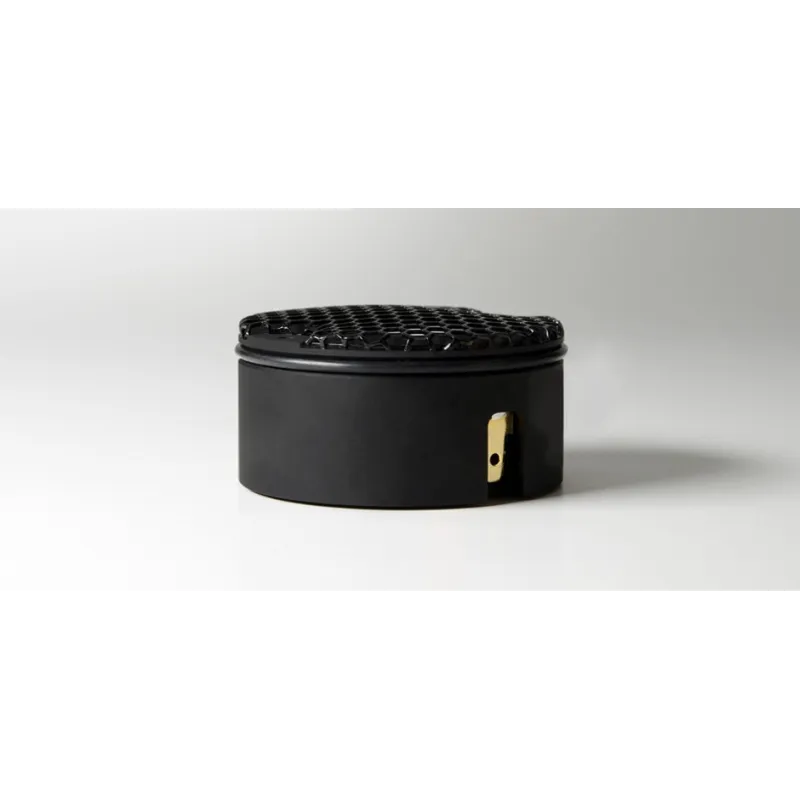

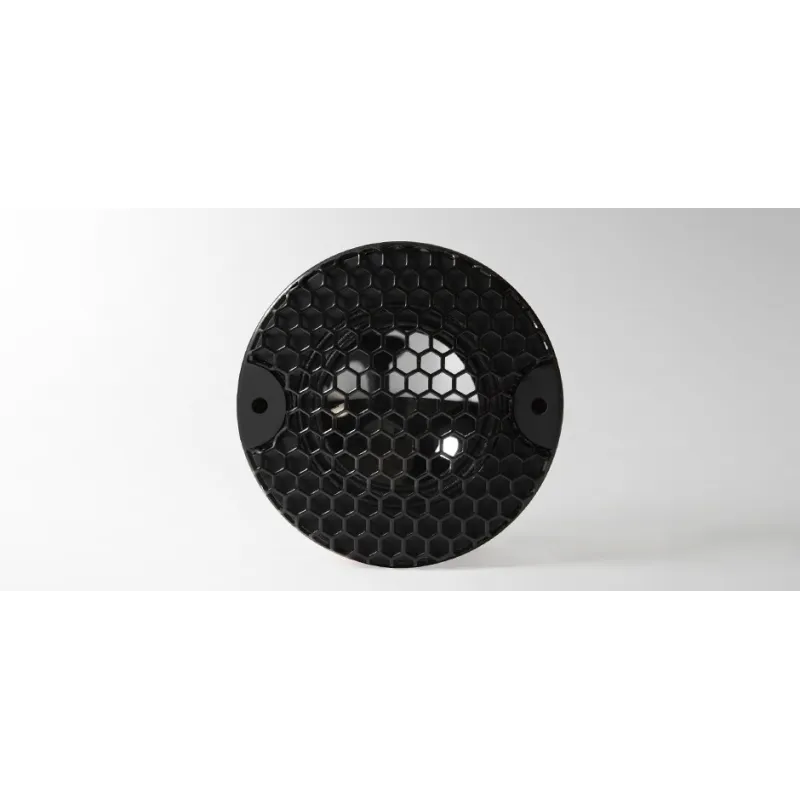

The BD30-6-458 is a 1.2 inch tweeter with ultra hard diamond dome in a 58 mm body. A proprietary clamping technique provides easy mounting and adapting to individual frontplates. As the dome breakup is above the audible range and well damped, no dome cutouts are required. A unique FEA optimized underhung motor design with vented titanium voice coil former and double neodymium magnet guarantees low energy storage, excellent heat transfer and high excursion capability for low power compression and ultra low distortion around 0.07% @ 2.83V and 0.5% max. @ 110dB. The new designed soft fabric surround centers the moving parts with improved linearity. We recommend our BD30-6-458 in an application above 1800 Hz.
Characteristics:
Material | Diamond | |
Type | Tweeter | |

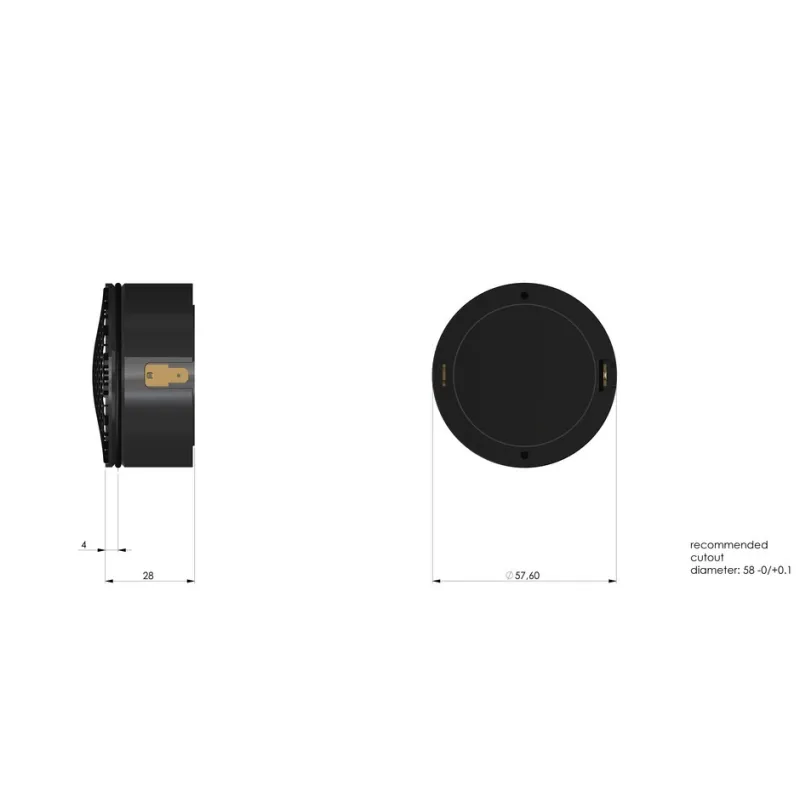

Total Diametre | 58 mm | |
Recorte | 58 mm | |
Altura | 29 mm |
Specifications:
- Sensitivity lp 92 dB
- Resistance (DC) re 5.36ohm
- Frequency of resonance fs 832 hz
- Vas equivalent volume - LTR
- Mechanical quality qs 5.05
- Electrical quality qes 0.96
- General quality quarts 0.81
- Effective membrane area sd 8.55 cm²
- Moving mass mms 0.45g
- Cone suspension resistance cms 0.145 mm / N
- Mechanical resistance rms 0.97 kg * s
