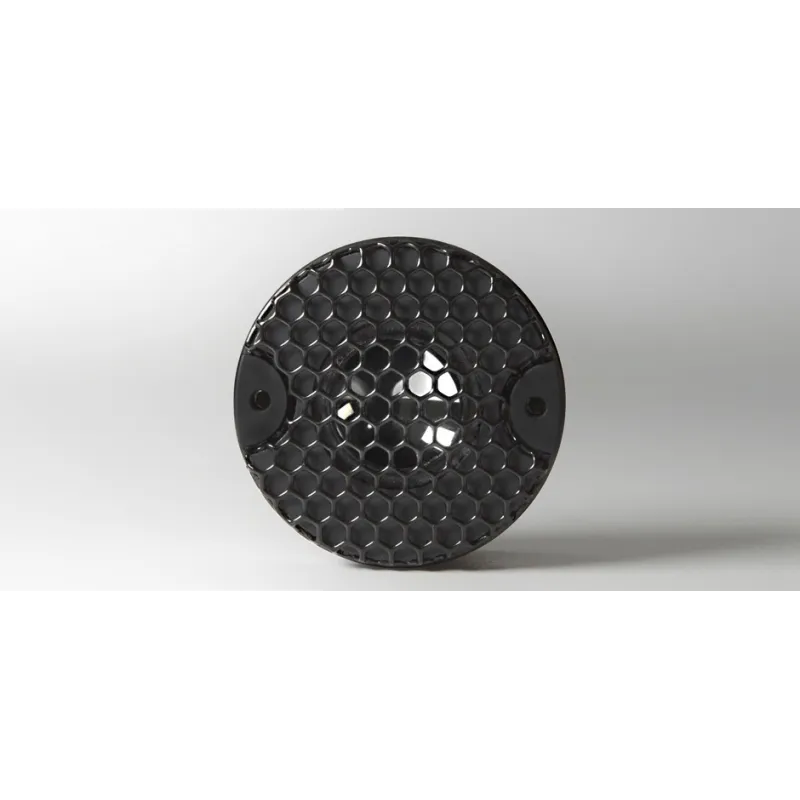

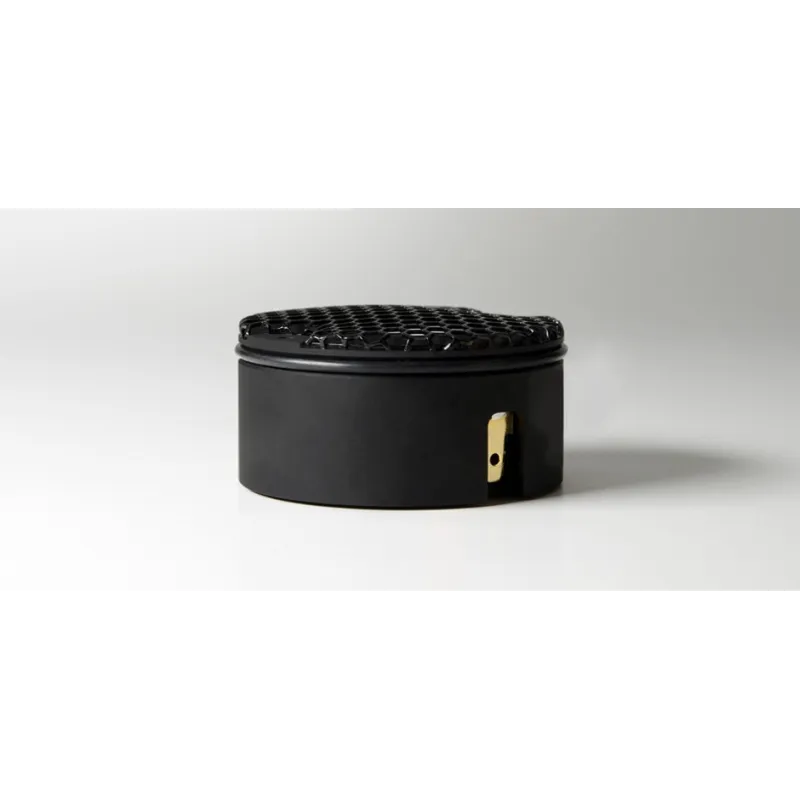

BD 20-5-048 CELL 20MM DIAMOND TWEETER
The BD20-5-048 is a 0.8-inch ultra-hard diamond dome tweeter in a 48mm body. A patented clamping technique provides easy mounting and adaptation to individual faceplates. Since the dome break is above the audible range and is well damped, dome breaks are not required. A unique FEA-optimized suspended motor design with vented titanium voice coil and dual neodymium magnets ensures low energy storage, excellent heat transfer, and high excursion capability for low-power compression and ultra-low distortion. New wrap-around soft cloth design centers moving parts with improved linearity.
We recommend our BD20-5-048 in an application above 2500 Hz.
Technical specifications:
DOME MATERIAL: DIAMOND
TYPE: TWEETER
OVERALL DIAMETER: 47.6MM
DIAMETER OF CUT/SQUARE: 48 MM
OVERALL DEPTH: 29MM
ENGINE MOUNTING DEPTH --
MOTOR ASSEMBLY DIAMETER --
