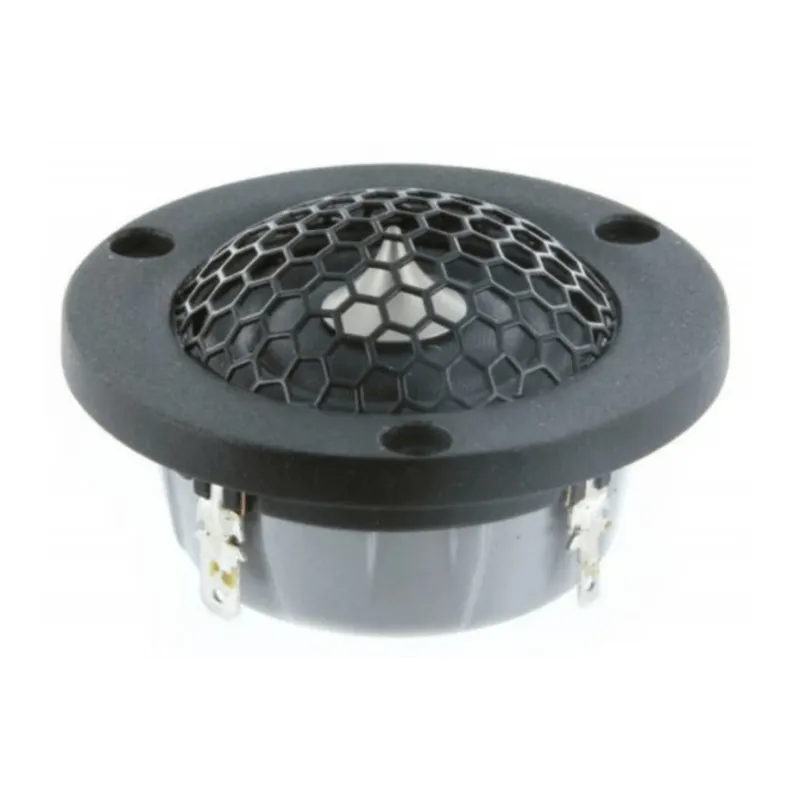

SCAN SPEAK R3004/602000 Illuminator Ring Radiator - Tweeter
1" Soft Ring Dome
Ring Neodymium Magnet
Patented Symmetrical Drive (SD-2) motor
Patented Phase Plug Design
Aluminum Face Plate and Housing
Sound Transparent Protective Grill
Shallow Non Resonant Alu Rear Chamber
9mm (2.44") diameter flange with 21.5mm (0.85") depth
Excellent choice for both home hi-fi and autosound applications
Scan-Speak Illuminator R3004/602000 1" Ring Radiator
The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion. The face plates are die cast in aluminum for a beautiful look with maximum mechanical stability.
The R3004-602000 is optimized to offer small package sizes that can fit into tight spaces such as compact cabinets and automotive trim pieces. The back chamber is die cast in aluminum and designed with a contoured shape that functions as a heat sink in high power applications.
Tweeter Type: Ring Radiator
Tweeter Series: Illuminator Series
Cone / Dome Diameter: 25 mm | 1"
Power Handling (RMS): 50 Watts
Power Handling (max): 130 Watts
Impedance (Z): 4 Ω
Sensitivity (SPL at 1m / 2.83V): 87.4 dB
Resonant Frequency (Fs): 625 Hz
DC Resistance (Re): 3 ohms
Voice Coil Inductance (Le): 0.02 mH
Mechanical Q (Qms): 5.73
Electromagnetic Q (Qes): 1.43
Total Q (Qts): 1.14
