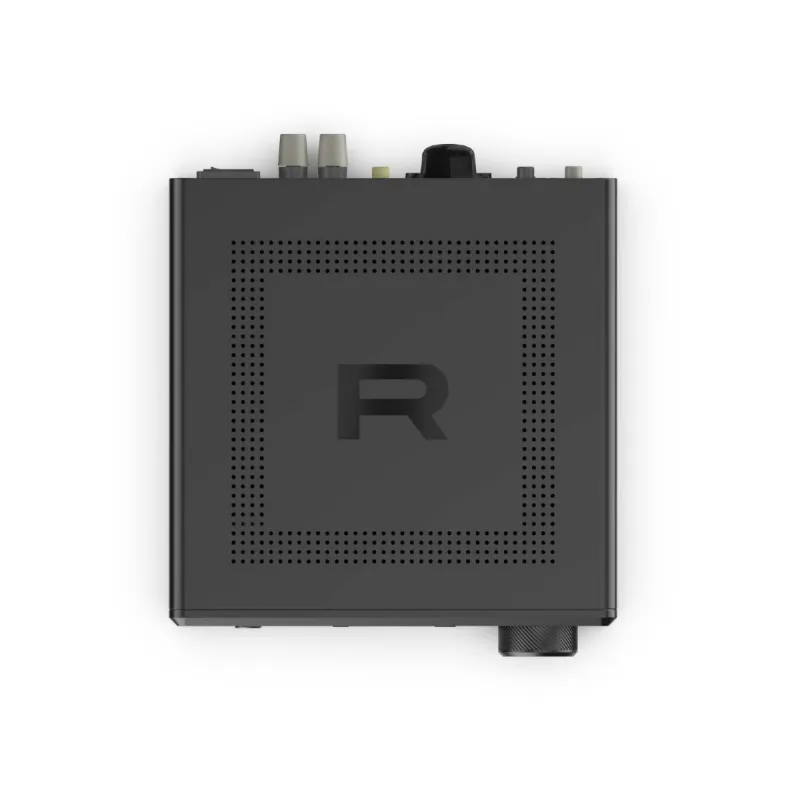

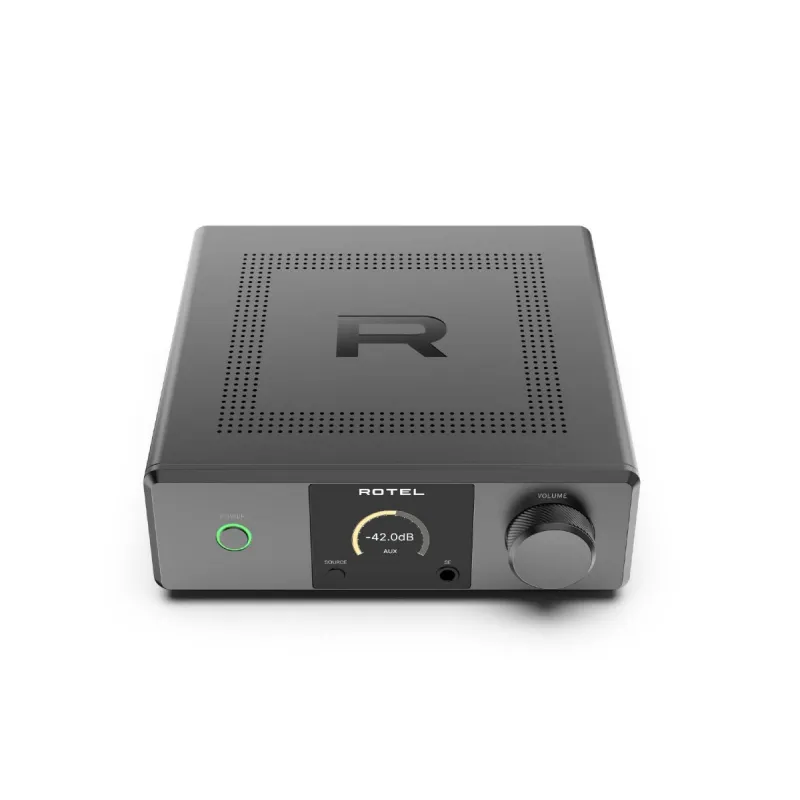

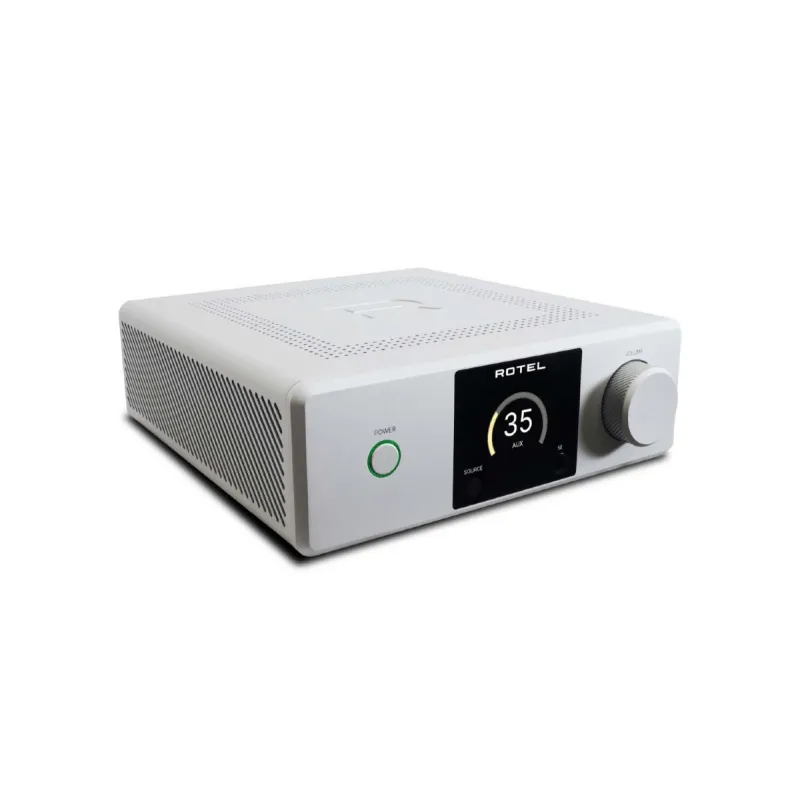

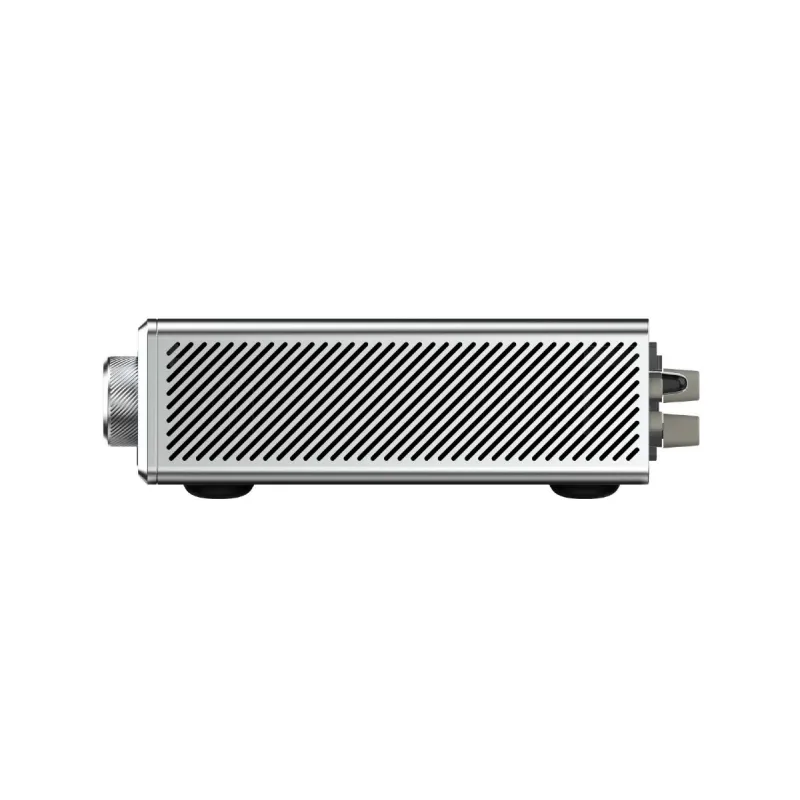

ROTEL DX-5
Compact, high-performance integrated amplifier.
2 x 33 W (4 Ω) / 25 W (8 Ω) in Class AB
ESS ES9039Q2M DAC (32-bit), Roon Tested
Inputs: HDMI ARC, USB-B (PCM 384 kHz, DSD256), optical, coaxial, RCA
Bluetooth aptX HD / AAC
Subwoofer output + 6.35 mm headphone jack
TFT color display + remote control
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?
Rotel DX-5: High-Performance Compact Integrated Amplifier with ESS DAC and aptX HD Bluetooth
The Rotel DX-5 is a high-end compact stereo integrated amplifier designed for audiophiles seeking premium sound quality in small to medium-sized setups. Combining classic Class AB amplification with a 32-bit ESS DAC and modern digital connectivity, the DX-5 delivers refined audio performance in a sleek, space-saving design.
Precision Engineering and Powerful Sound

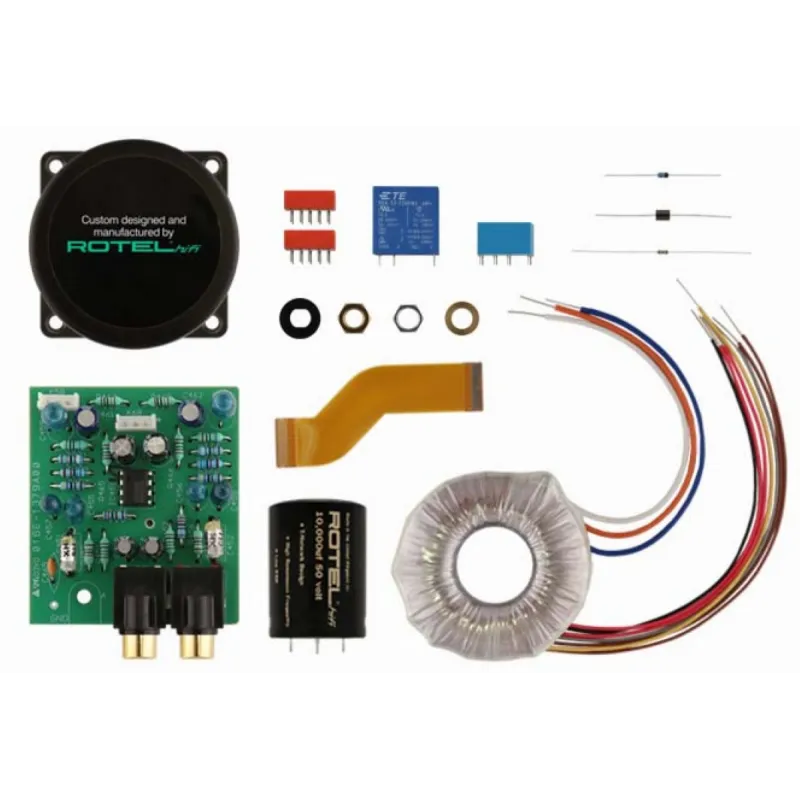

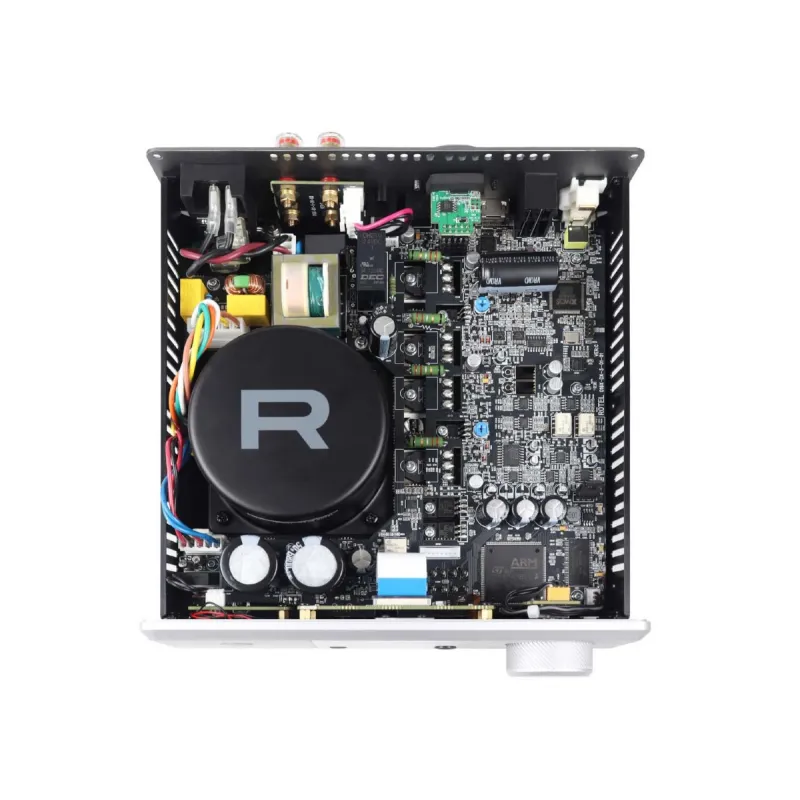

At its heart, the DX-5 features Rotel’s custom-built toroidal transformer, ensuring stable high-current power delivery. It outputs 33 watts per channel into 4 ohms (25W into 8 ohms)—ideal for bookshelf speakers or desktop Hi-Fi systems. With ultra-low distortion (<0.03%) and wide frequency response (10 Hz – 100 kHz), this amplifier offers exceptional clarity, detail, and musical dynamics.
Built-in ESS DAC for Superior Digital Playback
Equipped with the ESS ES9039Q2M 32-bit DAC, the DX-5 excels in digital playback. It supports high-resolution PCM up to 384 kHz, DSD up to DSD256, and DoP, ensuring optimal performance with the most demanding digital audio formats. Whether from USB, Bluetooth, or optical sources, the DX-5 maintains signal integrity and sonic precision.
Advanced Connectivity for Modern Audio Systems
HDMI ARC: Seamless connection to TVs for superior sound in home entertainment setups.
USB Type-B: Connect directly to computers for high-resolution playback.
Optical and Coaxial Inputs: For CD transports, streamers, or digital sources (24-bit / 192 kHz).
Bluetooth aptX HD & AAC: High-quality wireless streaming from smartphones and tablets.
Analog RCA Input: Connect turntables (with external phono stage) or legacy devices.
Subwoofer Output: Easily integrate a powered subwoofer for extended bass response.
6.35 mm Headphone Output: Drive headphones with authority and clarity.

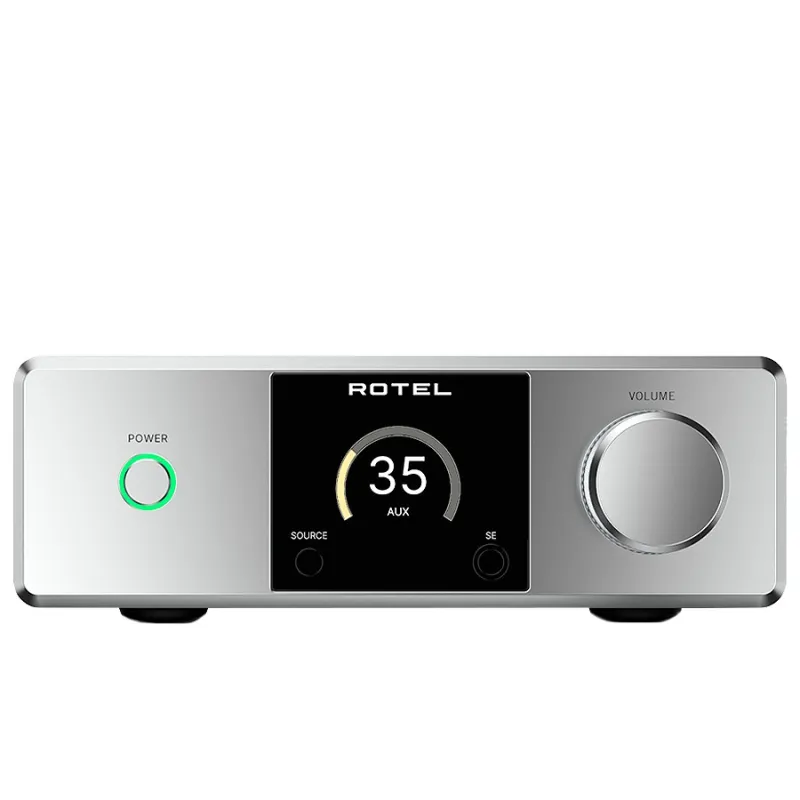

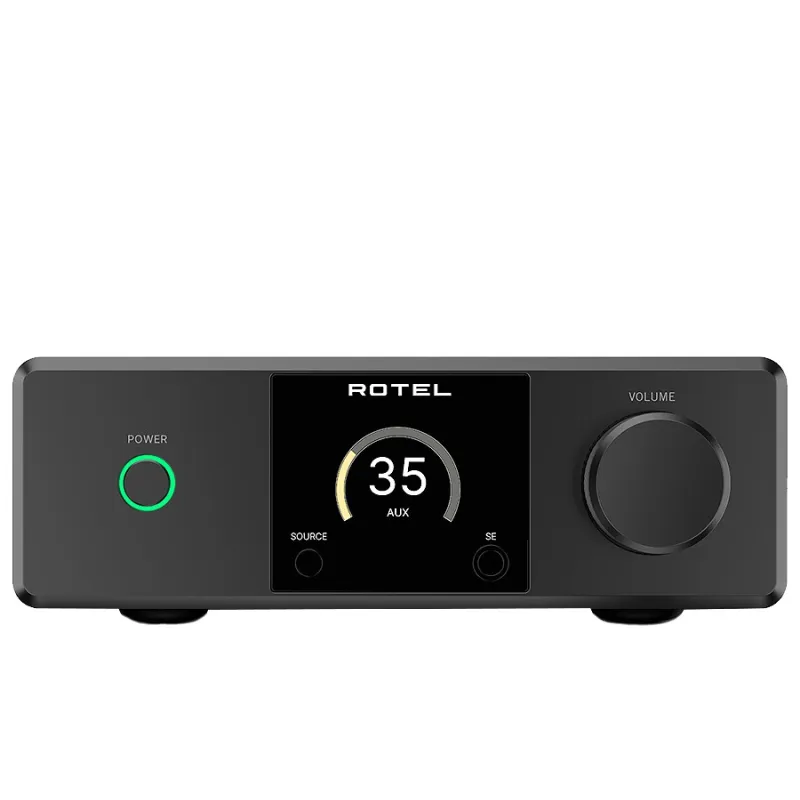

Designed for Simplicity and Control
The DX-5 features a full-color TFT display and intuitive control via the included remote. Its compact chassis (215 x 76 x 251 mm) fits easily into tight spaces while delivering full-size audio quality.
Technical Specifications
Power Output: 2 x 33W (4Ω) / 2 x 25W (8Ω), Class AB
DAC: ESS ES9039Q2M, 32-bit
Frequency Response: 10 Hz – 100 kHz (±0.19 dB)
Total Harmonic Distortion: < 0.03%
Signal-to-Noise Ratio: > 100 dB (A-weighted)
Supported Formats: PCM 384 kHz, DSD256, MQA, DoP
Bluetooth: aptX HD, AAC
Inputs: HDMI ARC, USB-B, Optical x2, Coaxial x2, RCA stereo
Outputs: Subwoofer out, 6.35 mm headphone, RCA pre-out
Power Consumption: 80W (active), <0.5W (standby)
Dimensions (W x H x D): 215 x 76 x 251 mm
Weight: 4.1 kg
Rotel DX-5: Compact Power, Audiophile Sound
Engineered for music lovers with limited space but unlimited expectations, the Rotel DX-5 delivers audiophile-grade performance with versatile connectivity and premium components. Perfect for desktop setups, small Hi-Fi systems, or TV integration, it brings warmth, detail, and energy to every listening session.
