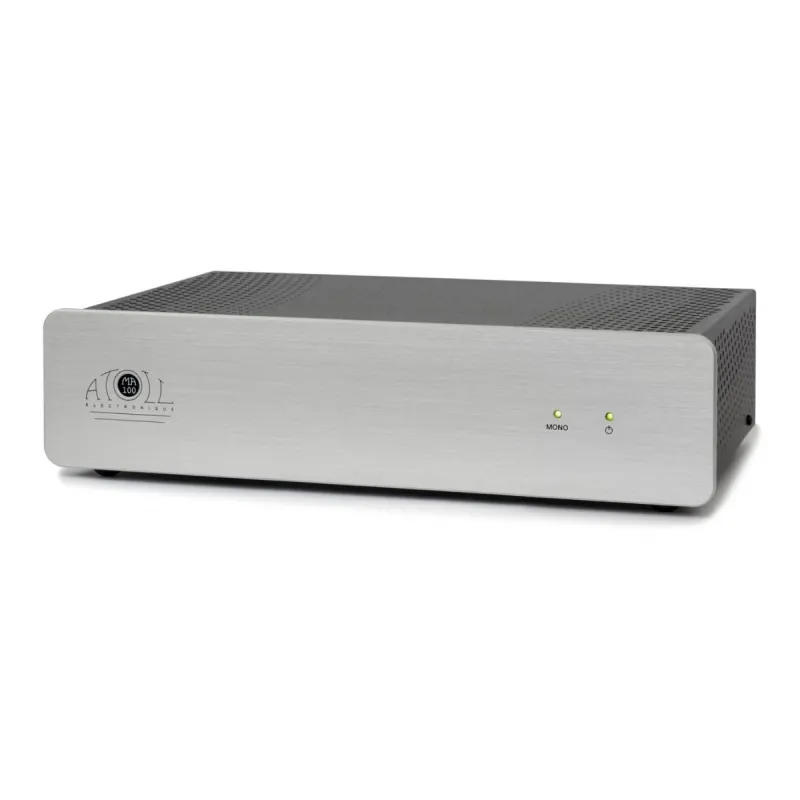

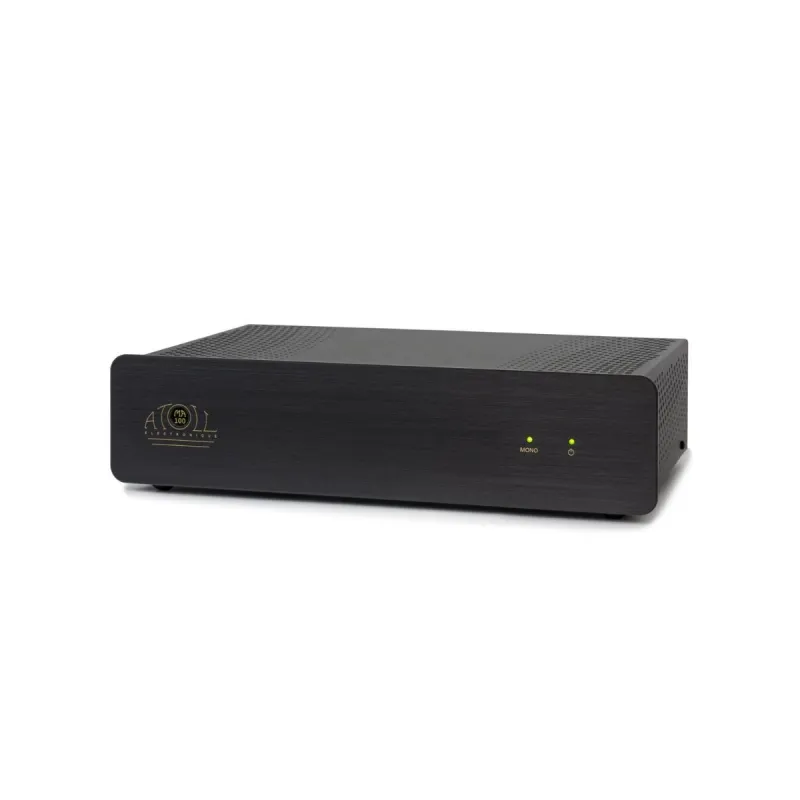

ATOLL MA100 Mini Amplifier
ATOLL MA100 Mini Amplifier. Stereo power amplifier.
Power amplifier 2×60 W - 8 Ω.

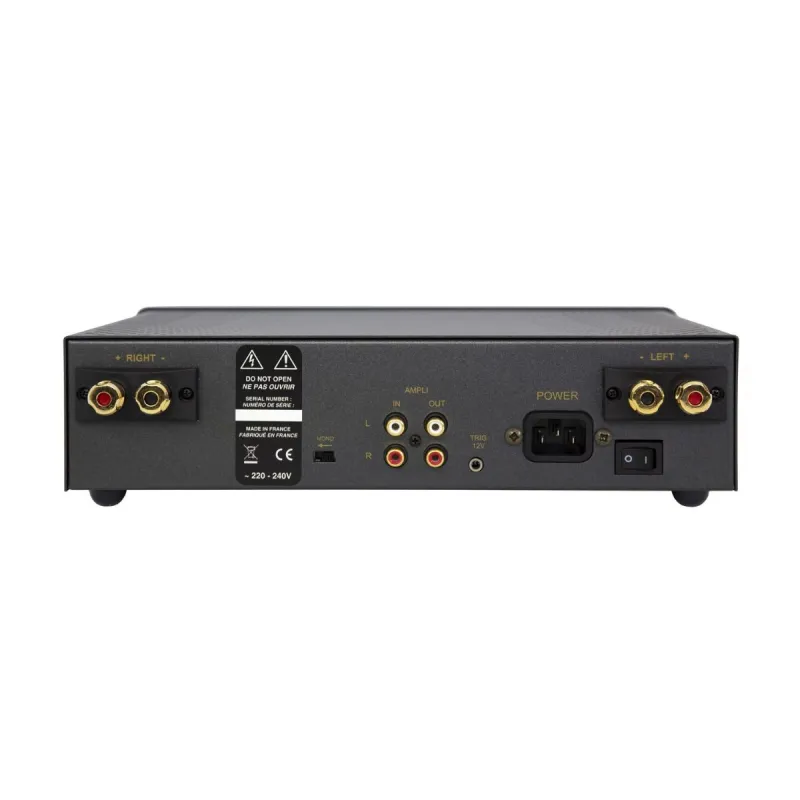

1 RCA input. 1 RCA output.
External stereo/mono switch.
Without remote control.
Bankwire payment (3% DTO)
If you choose Bankwire payment you will get a 3% discount on your order.
Shipping Policy
Return policy
ATOLL MA100 Mini Amplifier
The MA100 mini power amplifier is suitable for most audio and video or HIFI applications. Very scalable, it can be used alone or in bi-amplification. It can be associated with an integrated amplifier or an ATOLL preamplifier. It can be bridged in mono block via an internal switch. It is also equipped as standard with a 12 V Trigger input (direct turn-on in conjunction with a preamplifier).
Technical specifications:
Power 2×60 W - 8 Ω.
170 VA toroidal transformer.
Filtering capacitors: 2×6800 μF.
Bridgeable monoblock.
12V trigger input.
Balanced discrete component audio stages.
MOS-FET power transistor.
Class A/B output stage biasing.
Double-sided circuit boards with nickel/gold finish.
Bridgeable monoblock.
Pulse power: 100 W
Total capacitance: 16,600 µF
Input impedance: 220 kΩ
Sensitivity: 1.68 V
Signal-to-noise ratio: 100 dB
Distortion at 1 kHz: 0.05 % / (10 W)
Bandwidth: 5 Hz - 200 kHz
Rise time: 2 µs
Dimensions: 320×227×83 mm
Weight: 4 kg
