AESTHETIX Callisto Eclipse Linestage

Valve Preamplifier.

Circuit: balanced with signal rejection

Volume control: mechanical, 46 positions

Separate power chassis: minimizes noise

Inputs: 6 (2 RCA/XLR, 4 RCA)

Outputs: 2 RCA (SE), 2 XLR, 1 RCA (tape)

Gain: 23 dB (SE), 29 dB (balanced)

Pipes: 8 in total

Consumption: 300 watts

Colour
€26,000.00

Have you seen it cheaper? Contact us >


Delivery time 4 weeks

Custom Installation Info

+

bloques info producto

Bank Transfer (3% OFF)

If you make the payment via bank transfer, you will receive an extra 3% discount on your order.

For personalized advice, contact us with no obligation

957460112
info@audiohum.com

Need to upgrade your equipment?

Would you be interested in trading in a device when purchasing this item?

Renovar equipo

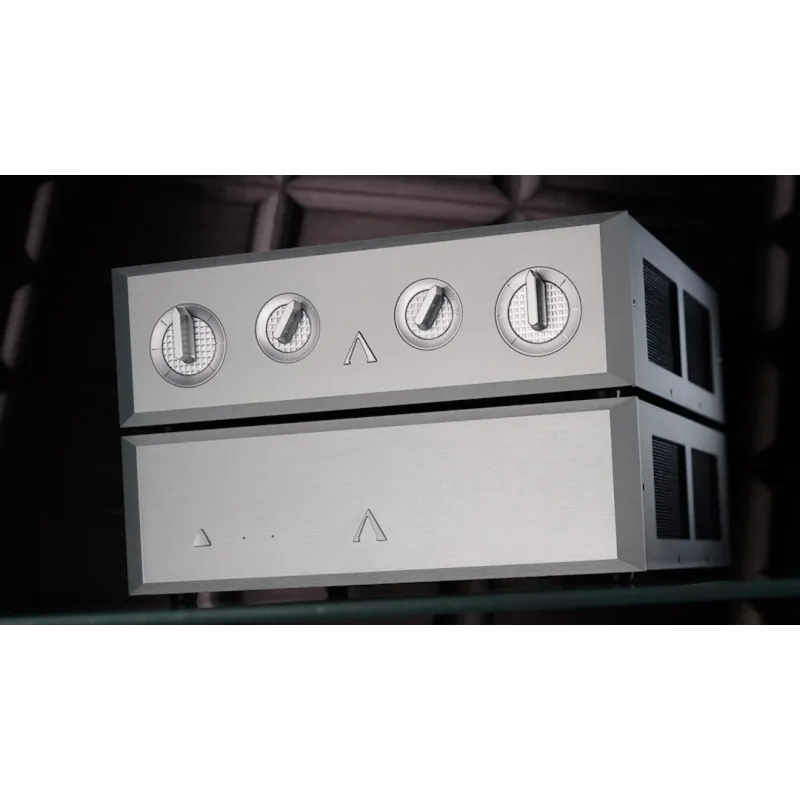

Aesthetix Callisto Eclipse Linestage. Tube Preamplifier

A fully balanced circuit from input to output, including the internal balancing of single-ended inputs, results in superior common-mode noise rejection and a cleaner sound. The innovative switched-resistor volume control maximizes resolution at any listening level. A separate power supply chassis eliminates any possibility of transformer noise corrupting the delicate audio circuits. Stealth capacitors by Peter Moncrief are used in the Eclipse Edition for unprecedented sound quality.

Fully balanced differential circuit with the ability to internally balance a single-ended input signal.

Innovative and unique discrete mechanical voltage control with 46 positions using Roederstein resistors.

Separate volume controls and input selectors for each channel.

Tube amplification and output stage (8 tubes in total).

Independent vacuum tube-regulated power supply using 8 tubes.

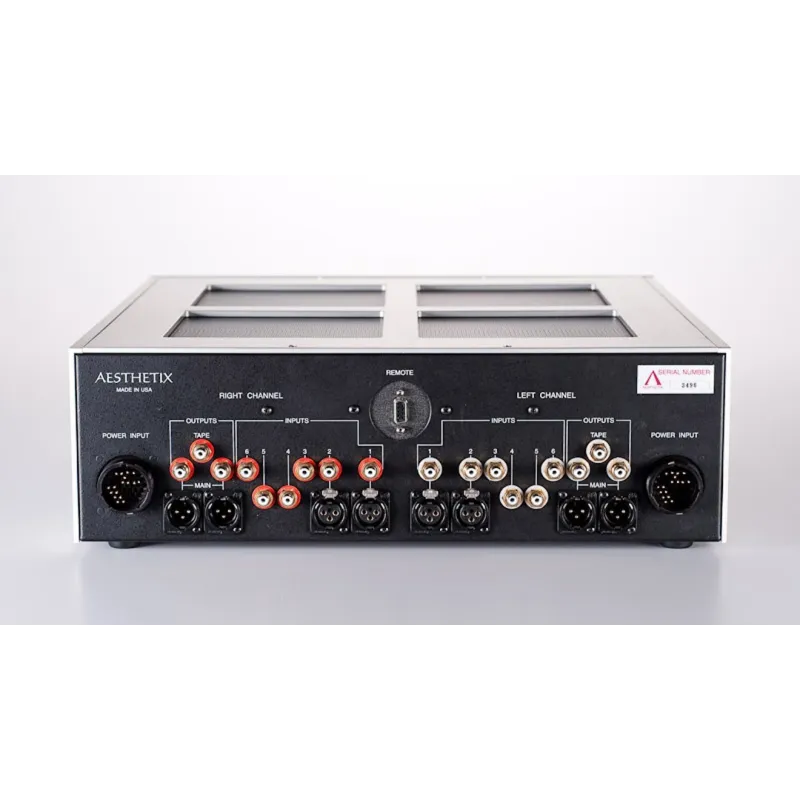

Two sets of XLR and two sets of RCA outputs per channel.

Six inputs: The first two can be RCA or balanced (XLR), while the remaining four are single-ended (RCA) only.

Specifications

Inputs: Six inputs: The first two can be RCA or balanced (XLR), the remaining four are RCA only.

Outputs: 2 RCA (SE) and XLR (balanced), 1 tape RCA.

Line-level gain: 23 dB single-ended (SE) input/output, 29 dB balanced.

Volume control: Switched resistor network volume control with 46 steps.

Front panel controls: Left and right input selection, left and right volume.

Remote controls (optional): Volume, mute, balance, phase (optional).

Frequency response: ±0.25 dB, 20 Hz – 20 kHz.

Signal-to-noise ratio: Measured at a minimum of 70 dB, A-weighted (input reference 1 mV, gain setting 75 dB).

Line input impedance: 100K ohms SE, 200K ohms balanced.

Output impedance: 1K ohms SE, 600 ohms balanced.

Recommended amplifier load: 10K ohms or greater (SE), 20K ohms or greater (balanced).

Tubes per channel (line section):

V1 (6922)

V2 (12AX7)

V3 (6922)

V4 (6SN7)

Power consumption: 300 watts.

Physical Dimensions

Main Unit (MkII or Signature):

Height: 5 5/8"

Width: 19"

Depth: 18" (including connectors)

Main Unit (Eclipse):

Height: 5 1/2"

Width: 17 1/2"

Depth: 18" (including connectors)

Power Supply (MkII or Signature):

Height: 5 5/8"

Width: 19"

Depth: (including connectors)

Power Supply (Eclipse):

Height: 5 5/8"

Width: 17 1/2"

Depth: 18 1/4" (including connectors)

Shipping Weights

Main Unit (MkII or Signature): 42 lbs (19 kg).

Main Unit (Eclipse): 47 lbs (21 kg).

Power Supply (MkII or Signature): 50 lbs (23 kg).

Power Supply (Eclipse): 55 lbs (25 kg).

Specifications are subject to improvements or changes without prior notice.
