NAGAOKA MP-200H
Pre-mounted MM cartridge with boron cantilever.
Super-thin elliptical stylus (0.4 x 0.7 mil)
Boron cantilever: precision, rigidity, and detail
Output: 4.0 mV | Response: 20 Hz – 23 kHz
Pre-mounted on headshell (easy installation)
Replaceable/upgradable stylus (MP-500 compatible)
Cartridge weight: 6.5 g | With headshell: 9.5 g
Warm, smooth, and balanced sound. Ideal for discerning audiophiles seeking musicality and comfort.
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?

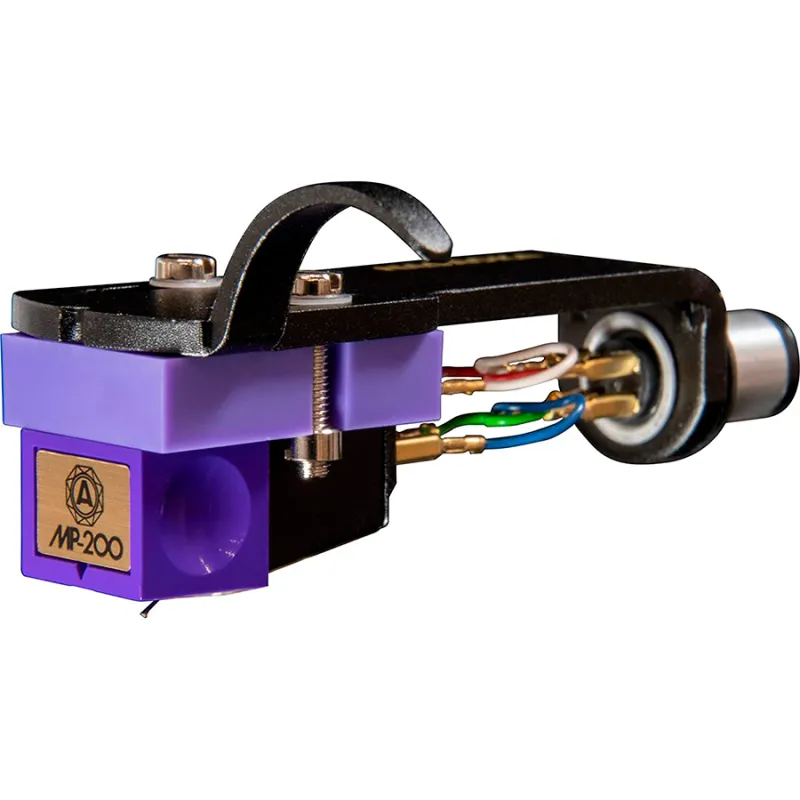

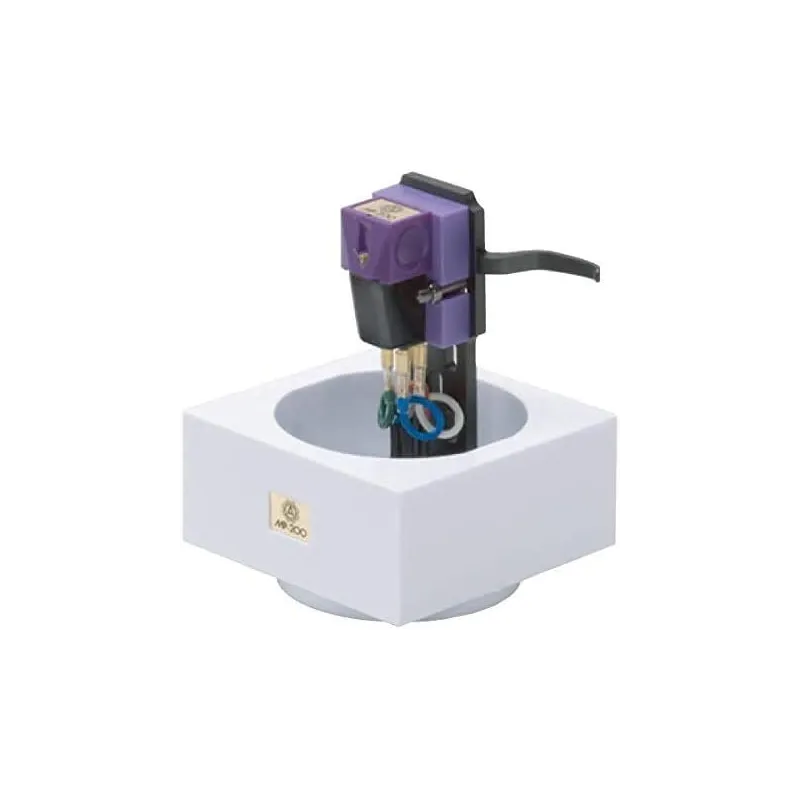

Nagaoka MP-200H. Pre-mounted MM Cartridge with Boron Cantilever
The Nagaoka MP-200H is the pre-mounted headshell version of the acclaimed MP-200 cartridge, offering a rich, fluid, and highly engaging sound. Positioned in the mid-range of Nagaoka’s MM lineup, it inherits much of the sonic character of its flagship sibling, the MP-500—delivering refined musicality, full-spectrum detail, and a deeply natural vocal presentation.
Thanks to its superfine elliptical stylus mounted on a rigid boron cantilever, the MP-200H delivers precise, warm, and dynamic playback—ideal for vocals, acoustic instruments, and demanding analog recordings.
Refined Sound with Character and Precision
Organic and immersive soundstage.
Excellent detail, clarity, and textural nuance.
Exceptionally natural vocals with warm mids and tight bass.
Not just "warm sound"—true balanced fidelity.
Perfect for jazz, classical, vocal, and acoustic music.
Plug & Play Convenience
The MP-200H comes pre-installed on a high-quality headshell, making it the ideal solution for those seeking quick, hassle-free installation. It fits standard SME-type tonearms (1/2” mount) and includes a stylus guard for safe transport and storage.
Note: Screws and screwdriver are not included, as the unit is already mounted.
Replaceable Stylus and Upgrade Path
Built on Permalloy Moving Magnet (MM) technology, the MP-200H offers:
Easy stylus replacement when worn
Upgrade compatibility with the MP-500 stylus, which features a boron cantilever for even greater resolution and fidelity
Recommended Break-In
For optimal performance, Nagaoka recommends a 30-hour break-in period during which the cartridge reaches its full sonic potential.
Technical Specifications
Type: MM (Permalloy Moving Magnet)
Output Voltage: 4.0 mV @ 1 kHz / 5 cm/s
Frequency Response: 20 Hz – 23 kHz
Stylus: Superfine elliptical diamond (0.4 x 0.7 mil)
Cantilever: High-rigidity boron
Static Compliance: 20 x 10⁻⁶ cm/dyne
Dynamic Compliance: 7.2 x 10⁻⁶ cm/dyne
Channel Separation: > 25 dB @ 1 kHz
Channel Balance: ≤ 1.5 dB @ 1 kHz
Recommended Tracking Force: 1.5 – 2.0 g
Recommended Load Impedance: 47 kΩ
Cartridge Weight: 6.5 g
Headshell Weight: 9.5 g
The Nagaoka MP-200H is a premium solution for vinyl enthusiasts seeking high-fidelity performance, elegant convenience, and a signature analog sound that combines technical excellence with musical emotion.
