NAGAOKA MP-300H
Pre-mounted high-end MM cartridge.
Super-thin elliptical stylus with boron cantilever
Output: 3 mV | Response: 20 Hz – 25 kHz
Wide and precise soundstage
Replaceable and upgradeable stylus (MP-500 compatible)
Warm, detailed, and three-dimensional sound. Ideal for audiophiles seeking reference sound without the hassle of setup.
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?

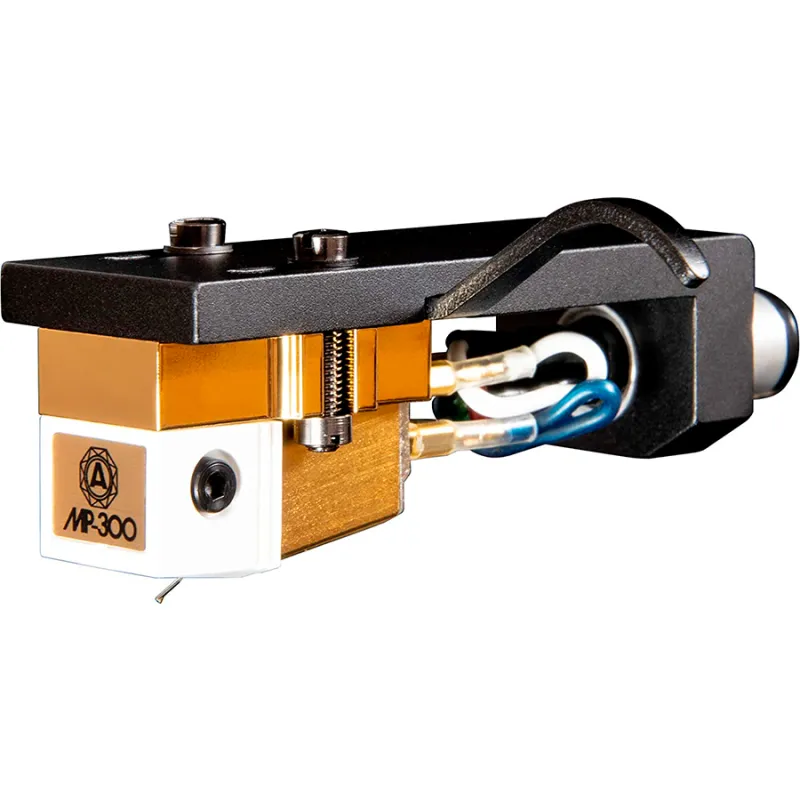

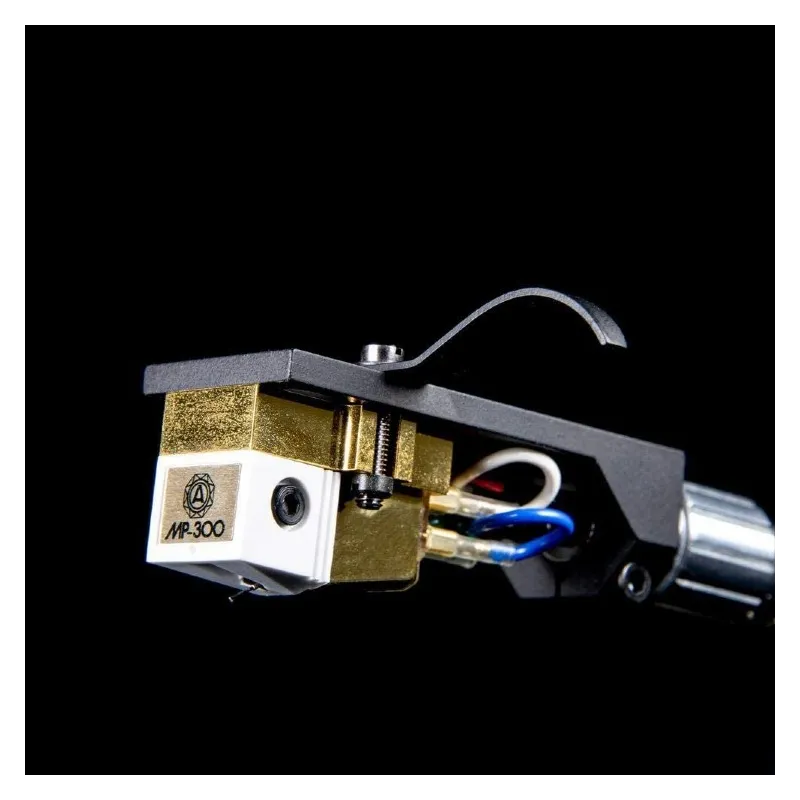

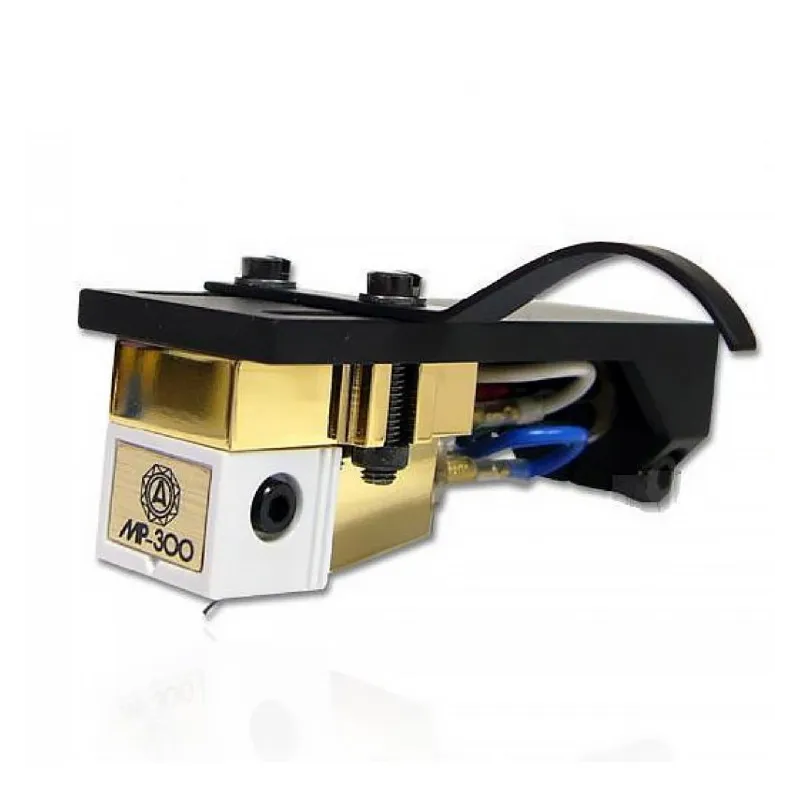

Nagaoka MP-300H. High-End MM Cartridge Pre-Mounted on Original Headshell
The Nagaoka MP-300H delivers reference-grade analog sound, pre-mounted on a high-quality original Nagaoka headshell for a hassle-free setup. This high-performance Moving Permalloy (MM) cartridge is ideal for audiophiles seeking effortless installation and exceptional sonic refinement.
Refined Sound and Immersive Soundstage
Featuring a superfine polished elliptical diamond stylus mounted on a high-rigidity, low-mass boron cantilever, the MP-300H ensures ultra-precise groove tracking and outstanding resolution. Its natural, rich, and detailed sound is presented in a wide, deep, and well-structured soundstage, ideal for jazz, classical, vocals, or rock.
The rigid cartridge body with extremely low resonance minimizes coloration and maximizes musical accuracy—making it one of the most compelling choices among high-end MM cartridges.
Replaceable and Upgradeable Stylus
A major benefit of Nagaoka’s MM design is the ease of stylus replacement at a reasonable cost. For those looking to upgrade, the stylus can be replaced with the top-tier MP-500 stylus, which features a boron cantilever and a line-contact diamond for even greater fidelity.
Ready to Play
Pre-installed at the factory on a genuine Nagaoka headshell, the MP-300H is ready for immediate use. It also includes a stylus guard for safe storage and transport.
(Note: Screws and screwdriver are not included, as installation is not required.)
Recommended break-in time: 30 hours for optimal sonic performance.
Technical Specifications
Type: Moving Magnet (Permalloy)
Output Voltage: 3.0 mV @ 1 kHz, 5 cm/s
Frequency Response: 20 Hz – 25 kHz
Cantilever: High-rigidity boron
Stylus: Superfine polished elliptical diamond
Static Compliance: 20 x 10⁻⁶ cm/dyne
Dynamic Compliance: 8.5 x 10⁻⁶ cm/dyne
Channel Separation: > 27 dB @ 1 kHz
Channel Balance: < 1 dB @ 1 kHz
Recommended Tracking Force: 1.3 – 1.8 g
Recommended Load: 47 kΩ
Cartridge Weight: 8 g
Total Weight with Headshell: 13.5 g
Ideal For:
Audiophiles seeking a reference-quality MM cartridge that is easy to install, with a warm, detailed, and three-dimensional sound, and the added flexibility of stylus replacement or upgrade without changing the entire cartridge.
