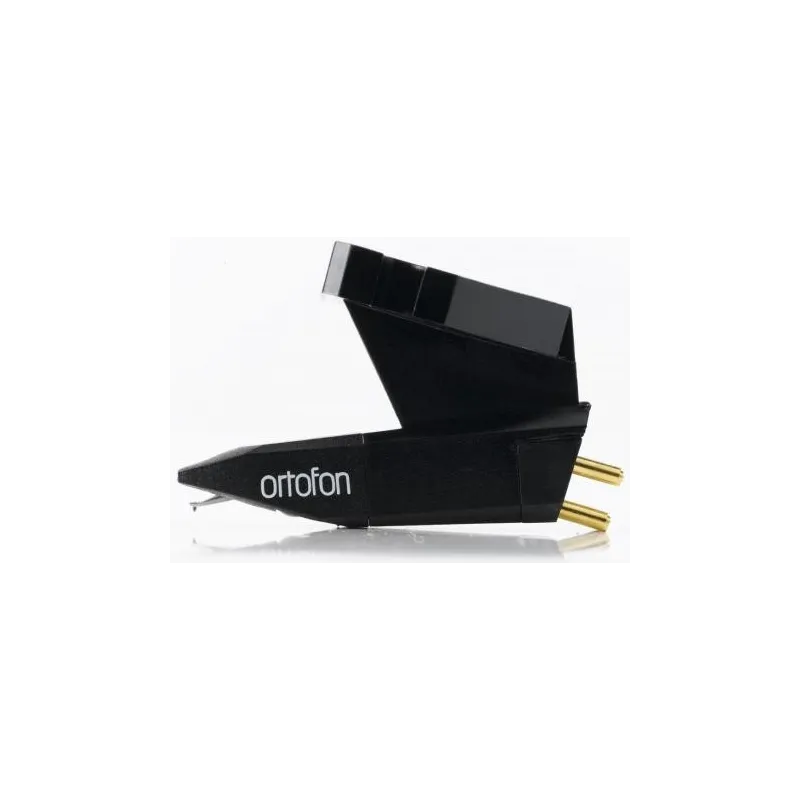

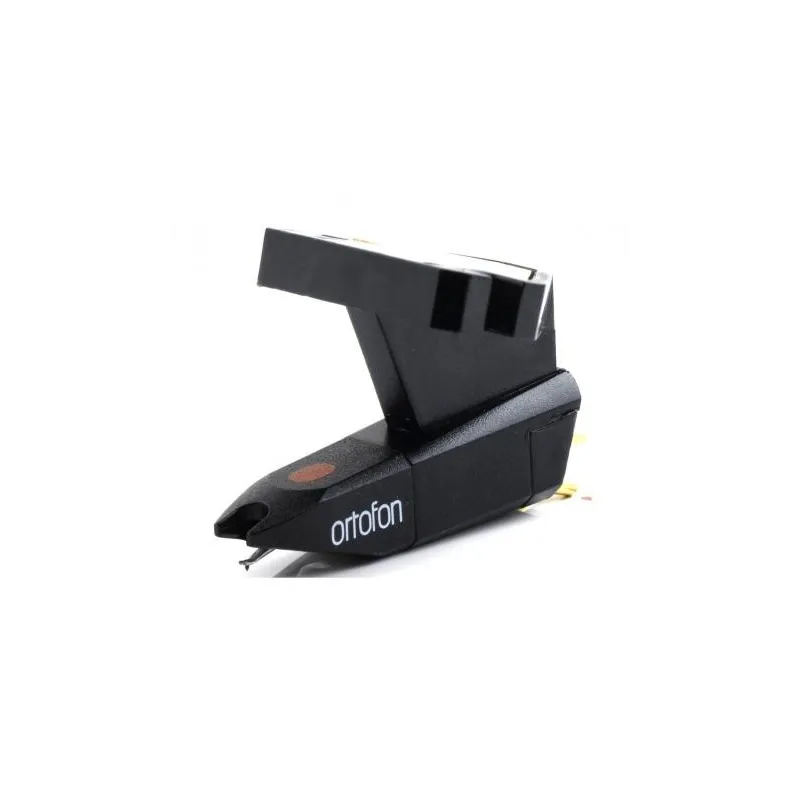

ORTOFON OM 5 E

Name: ORTOFON OM 5 E
Brand: Ortofon
SKU: 3243
Price: 65.29 EUR
Availability: InStock

Versatile MM capsule with excellent quality/price ratio.

Elliptical diamond needle and 4 mV output

Frequency response: 20–25,000 Hz

Very good tracking ability (65 µm)

Dynamic compliance: 20 µm/mN

Recommended support force: 1.75g

Compatible with moderate mass arms (removable mass plate)

€65.29

No VAT included

Have you seen it cheaper? Contact us >

In stock in store

Can we help you? Contact to our Expert Now

bloques info producto

Bank Transfer (3% OFF)

If you make the payment via bank transfer, you will receive an extra 3% discount on your order.

Individual Consultancy

957460112
info@audiohum.com

Need to upgrade your equipment?

Would you be interested in trading in a device when purchasing this item?

Description

ORTOFON OM 5 E: Versatile MM capsule with excellent quality/price ratio

With an aesthetic identical to that of the OM 3E model, the OM 5E honors the name of the family to which it belongs -OM stands for "Optimum Matching" - the OM5E is an affordable and versatile mobile magnet capsule whose generation system Improved signal strength allows you to display a frequency response curve that reaches up to 25,000 Hz. A high quality diamond elliptical profile needle allows, in combination with an output signal of 4 mV and very remarkable registers in such significant parameters Such as the tracking ability and dynamic compliance, the perfect adaptation to all types of reading arms (even the lightest thanks to a removable mass plate) and phono circuits, which makes the OM 5E in a splendid exponent of multi-application phono capsule. Without doubt, the best investment to monetize the sound of any basic turntable.

Technical characteristics

Mobile magnet (MM) capsule of exceptional quality / price ratio.

Output voltage of 4 mV at 1 kHz and 5 cm / s.

Frequency response of 20-25,000 Hz (cut-off points at -3 dB).

Recommended Load Impedance: MM / 47 kohm.

Load Capacitance: 200-600 pF.

Tracking Skill: 65 um (at 315 Hz).

Dynamic Compliance: 20 um / mN.

Recommended Support Force: 1.75 g.

For moderate mass reading arms.

Weight: 5 g.
