Moving Magnet (MM) cartridge.
Elliptical diamond stylus (r/R 8/18 µm): higher accuracy and sound fidelity
Tool-free installation: direct (bayonet) mounting, ideal for S-arms
4 mV output: suitable for most phono preamplifiers
Recommended support force: 1.8g
Cartridge weight: 18.5 g
Aluminium cantilever + OFC coils: long-lasting clarity and performance
Compatible with Stylus 5S, 10, 20, 20, 30 and 40 needles: upgrade without changing the cartridge
Frequency response: 20 Hz - 20 kHz
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Would you be interested in trading in a device when purchasing this item?

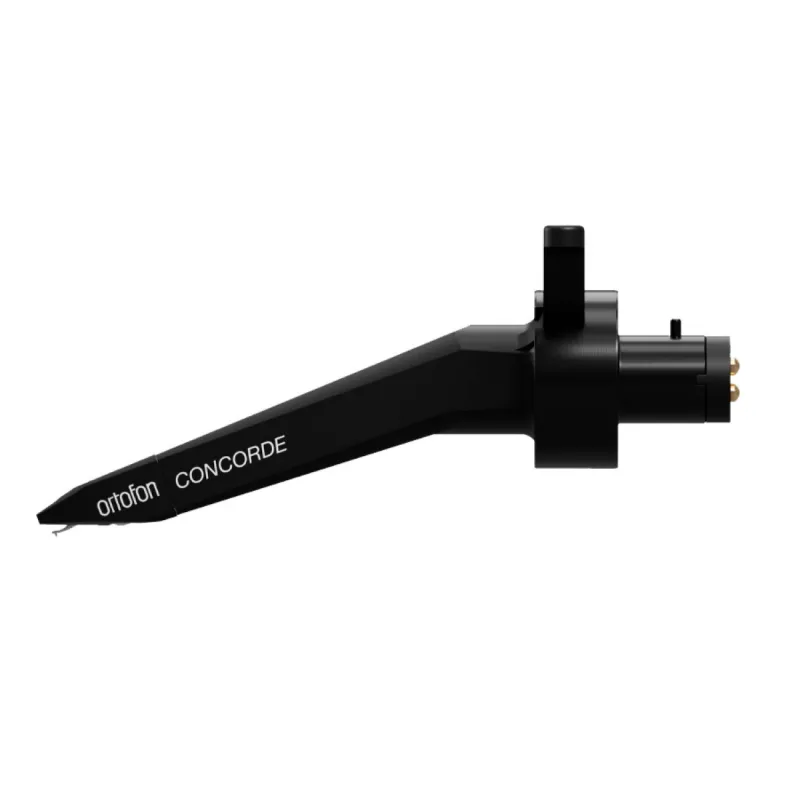

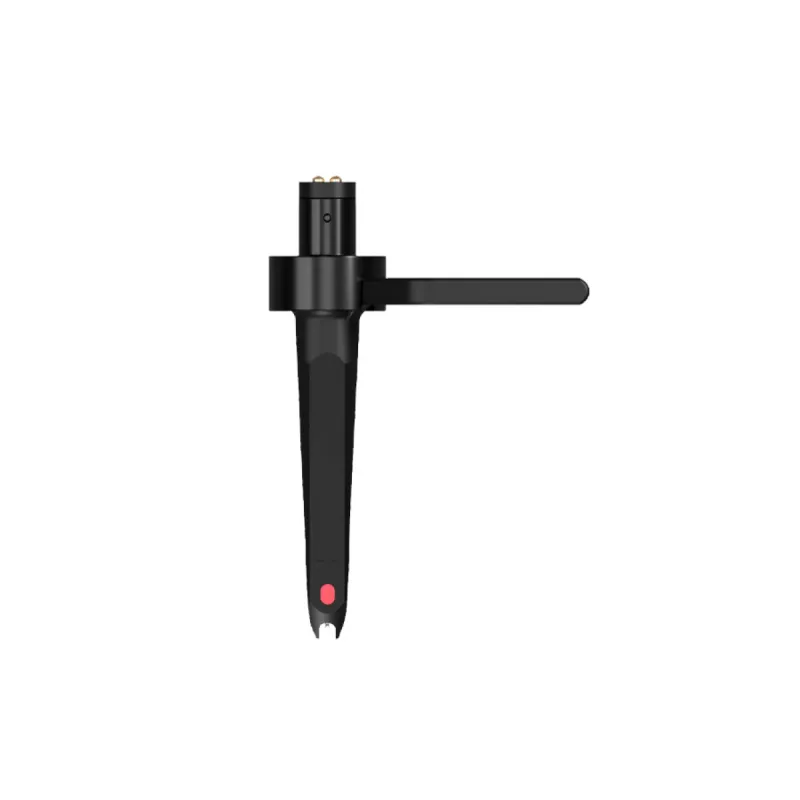

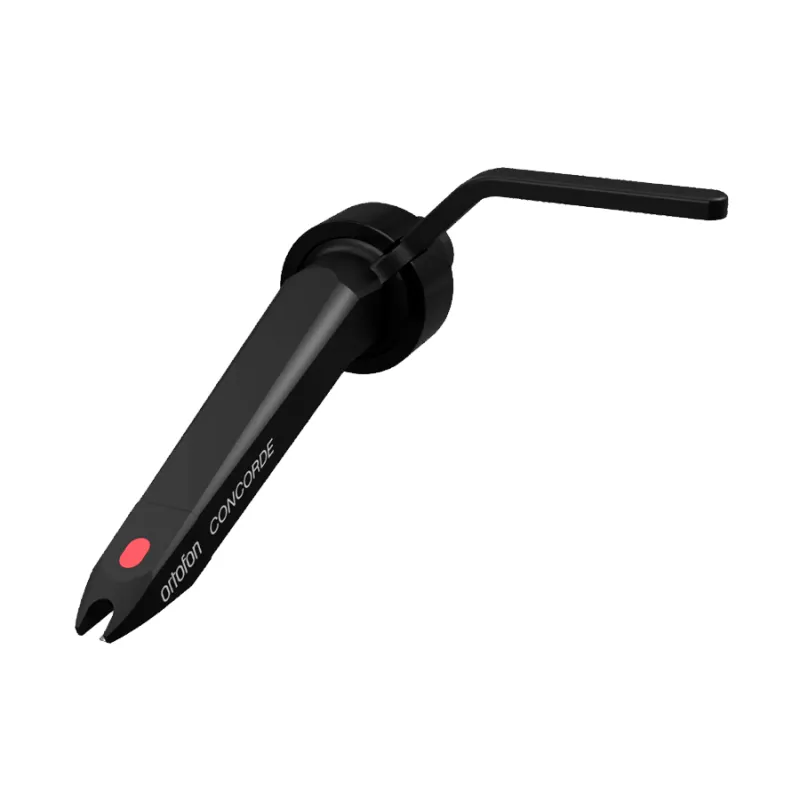

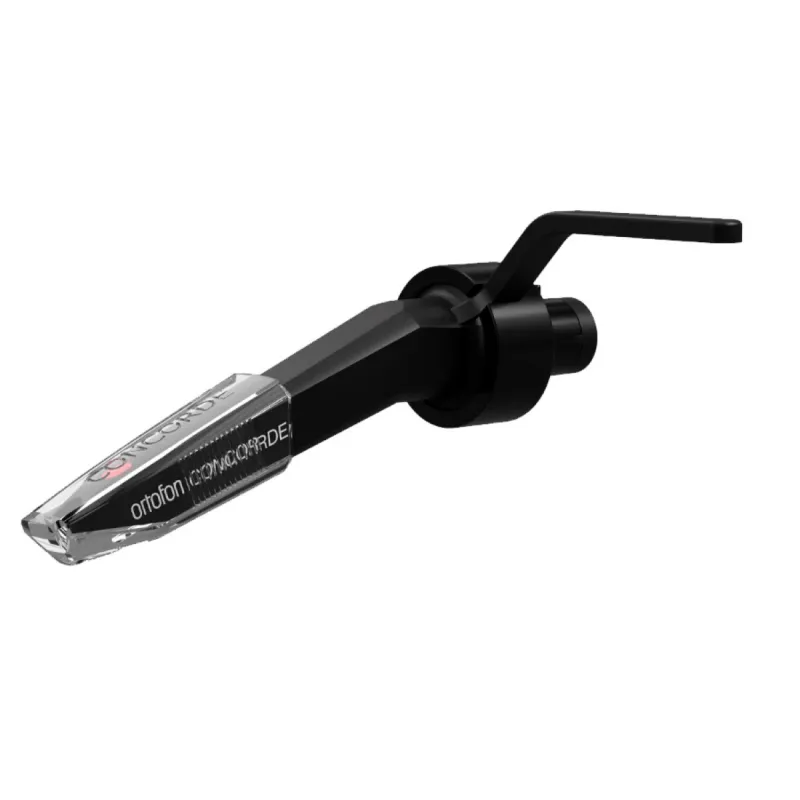

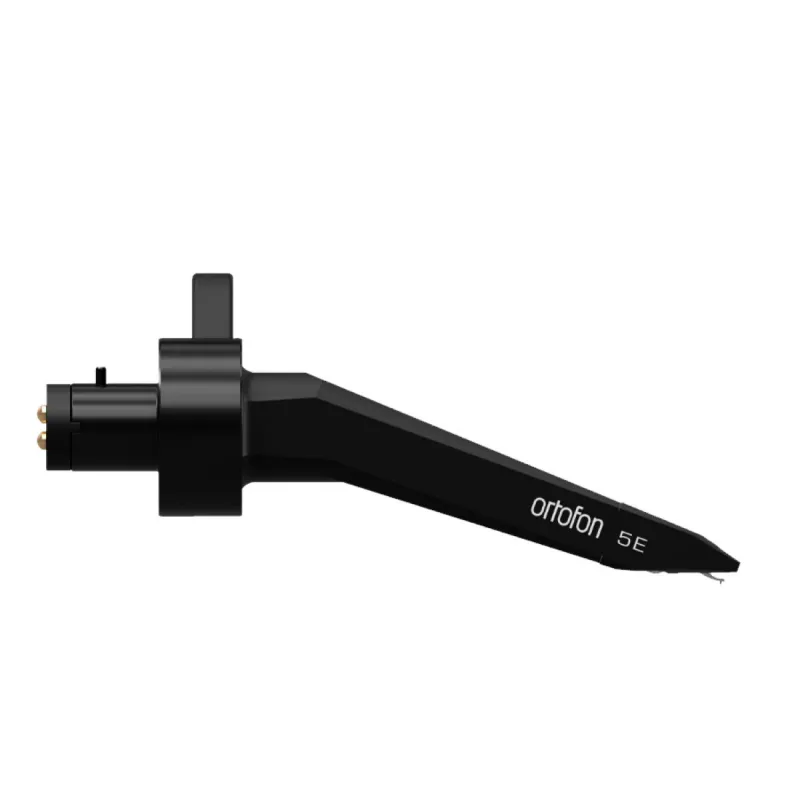

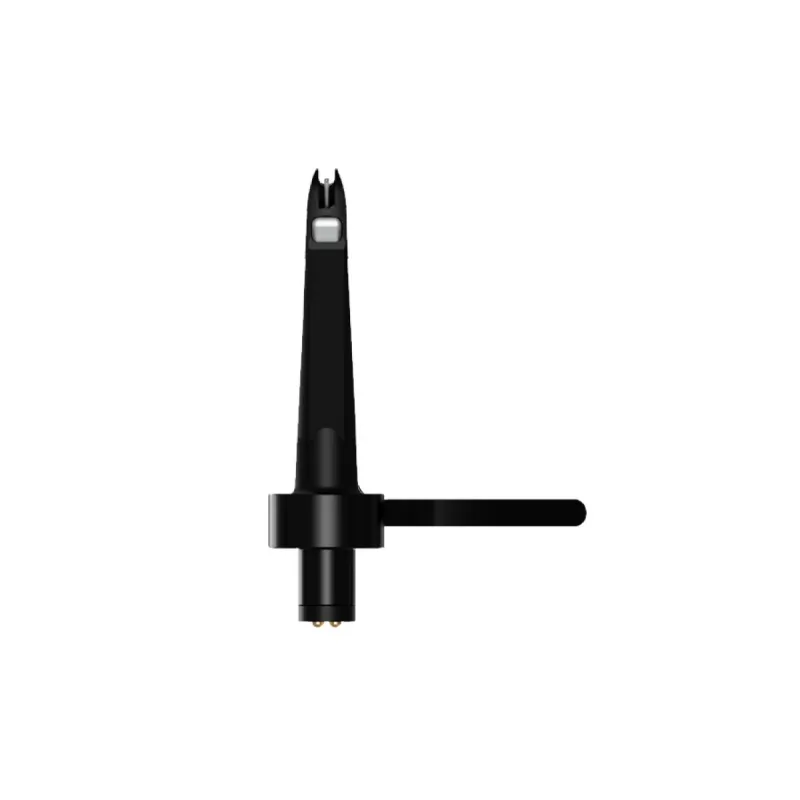

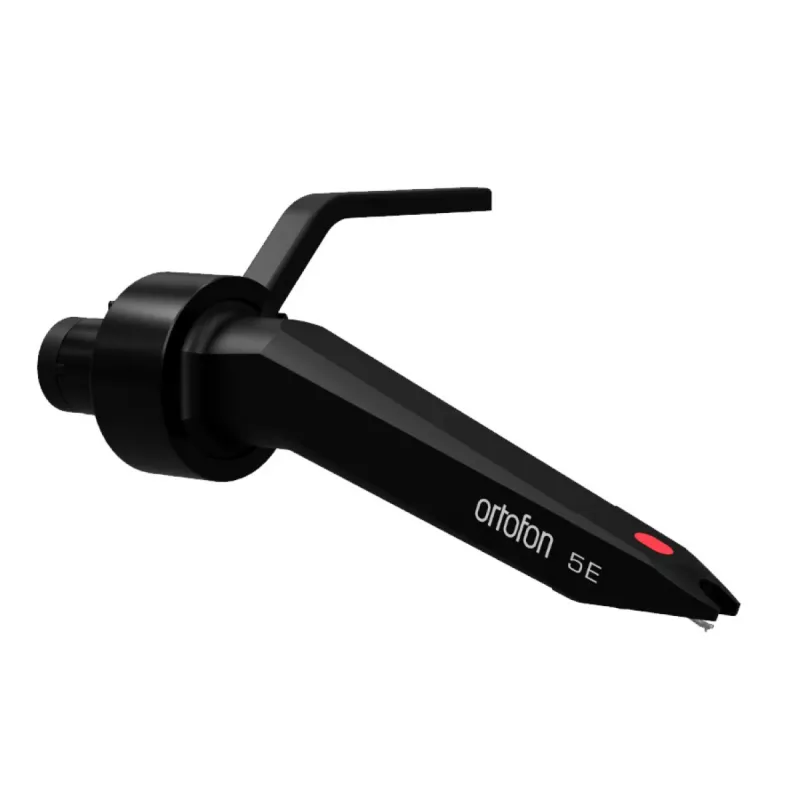

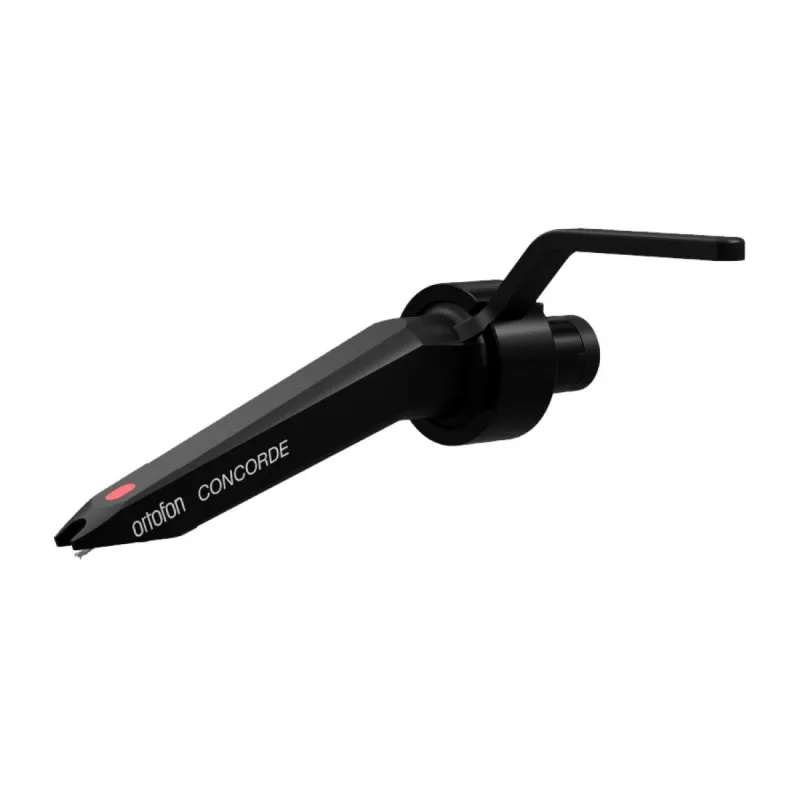

The Ortofon Concorde 5E is a direct-mount phono cartridge that combines ease of use with refined, high-fidelity sound reproduction. Equipped with an elliptical diamond stylus, it’s designed for vinyl enthusiasts who want clear, detailed audio without complex technical setup.
Elliptical Stylus for Greater Musical Precision
Thanks to its elliptical diamond tip (r/R 8/18 µm), the Concorde 5E offers a wider contact area with the groove. This results in:
Lower harmonic distortion
More accurate tracking.
More faithful reproduction of musical nuances and textures.
It’s perfect for those seeking a balanced, natural, and immersive listening experience.

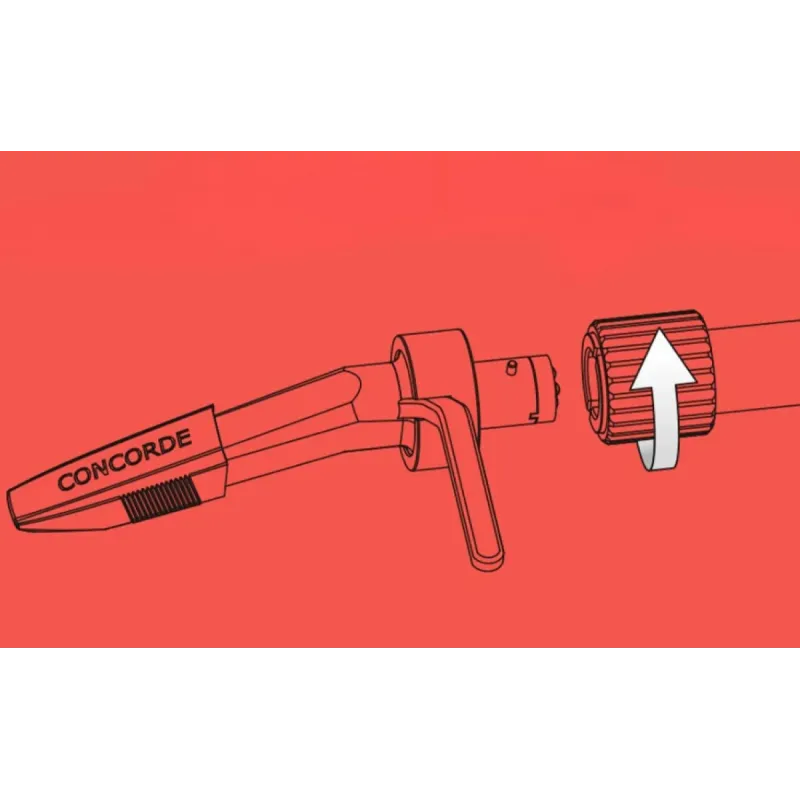

Quick, Tool-Free Installation
The Concorde 5E features plug & play installation, with no tools required. Its bayonet mount makes it fully compatible with S-shaped tonearms, allowing for easy use with a wide range of turntables.
Direct mount in seconds
No complicated alignment.
Compatible with most Hi-Fi turntables
Sound That Grows With You.
The 5E is part of the Ortofon Concorde 5 Series, which is fully compatible with a wide range of styli from the brand: Stylus 5S, 10, 20, 30, and 40. This allows users to upgrade performance over time without replacing the entire cartridge — extending its lifespan and reducing the cost of future improvements.
Frequency response: 20 Hz – 20 kHz (±3 dB)
Output voltage (1 kHz, 5 cm/s): 4 mV
Channel separation (1 kHz): > 20 dB
Channel balance: < 2 dB
Stylus type: Elliptical diamond (r/R 8/18 µm)
Lateral dynamic compliance: 20 µm/mN
Cantilever material: Aluminum
Recommended tracking force: 1.8 grams
Internal impedance / DC resistance: 750 Ω
Coil wire material: Oxygen-Free Copper (OFC)
Recommended load resistance: 47 kΩ
Cartridge weight: 18.5 g
Color: Black
Why Choose the Ortofon Concorde 5E?
Elliptical stylus for better detail and fidelity
Tool-free installation
Compatible with S-shaped tonearms
Perfect for daily use or critical listening
Classic design with modern technology
