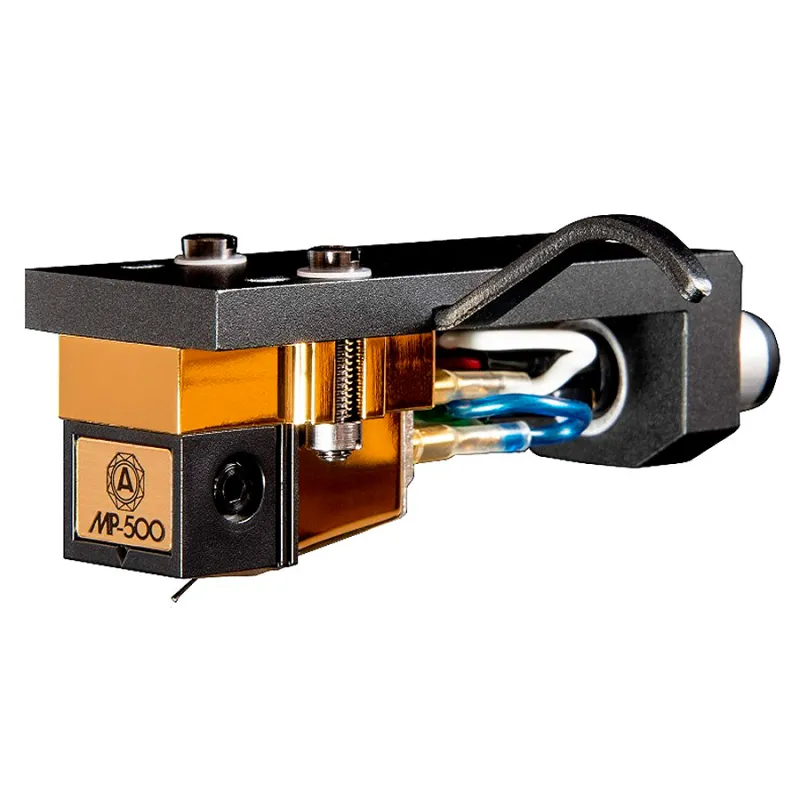

NAGAOKA MP-500H
Pre-mounted reference MM cartridge.
Linear-contact diamond stylus
Boron cantilever: extreme rigidity and precision
Ultra-rigid body with carbon fiber-reinforced chassis
Output: 3 mV | Response: 20 Hz – 25 kHz
Channel separation: > 27 dB | Balance: < 1 dB
Replaceable stylus (JN-P500)
Three-dimensional, detailed sound without ear fatigue. The top MM cartridge for audiophiles seeking absolute excellence.
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?
Nagaoka MP-500H. Reference-Grade MM Cartridge Pre-mounted on Headshell
Experience the Nagaoka MP-500H, the flagship model of Nagaoka’s acclaimed MP series, now pre-mounted on a high-quality original headshell for quick and hassle-free installation. This Moving Magnet (MM) phono cartridge is the result of decades of Japanese precision engineering and delivers breathtaking musical expression with remarkable clarity, depth, and liveliness.
Uncompromising Sonic Performance
The MP-500H is crafted to extract every last detail from your vinyl grooves with astonishing accuracy. Its sound is rich, three-dimensional, and emotionally engaging, offering a wide and impeccably structured soundstage. Ideal for audiophiles seeking a refined, precise, and fatigue-free listening experience.
Premium-Grade Engineering
Ultra-rigid body minimizes unwanted resonance for exceptional sonic fidelity.
Line-contact diamond stylus ensures maximum groove contact and superior detail retrieval.
Boron cantilever: ultra-light and rigid for distortion-free tracking.
Samarium cobalt magnet delivers high-efficiency magnetic performance.
Carbon fiber-reinforced chassis enhances structural stability and sonic neutrality.
Replaceable Stylus for Long-Term Value
As a Moving Magnet cartridge, the stylus can be easily replaced when worn.
Upgrade path: Owners of the MP-300 can upgrade to MP-500 level by simply installing the Nagaoka JN-P500 stylus.
Technical Specifications
Type: Moving Magnet (MM)
Stylus: Superfine line-contact diamond
Cantilever: High-rigidity, low-mass boron
Output Voltage: 3.0 mV @ 1 kHz, 5 cm/sec
Frequency Response: 20 Hz – 25 kHz
Channel Separation: > 27 dB @ 1 kHz
Channel Balance: < 1 dB @ 1 kHz
Dynamic Compliance: 8.5 x 10⁻⁶ cm/dyne
Tracking Force Range: 1.3 – 1.8 g
Recommended Load Impedance: 47 kΩ
Cartridge Weight: 8.0 g
Total Weight with Headshell: 13.5 g
Stylus Replacement: Nagaoka JN-P500
Color: Black with gold accents
Includes stylus guard for protection during storage or transport.
