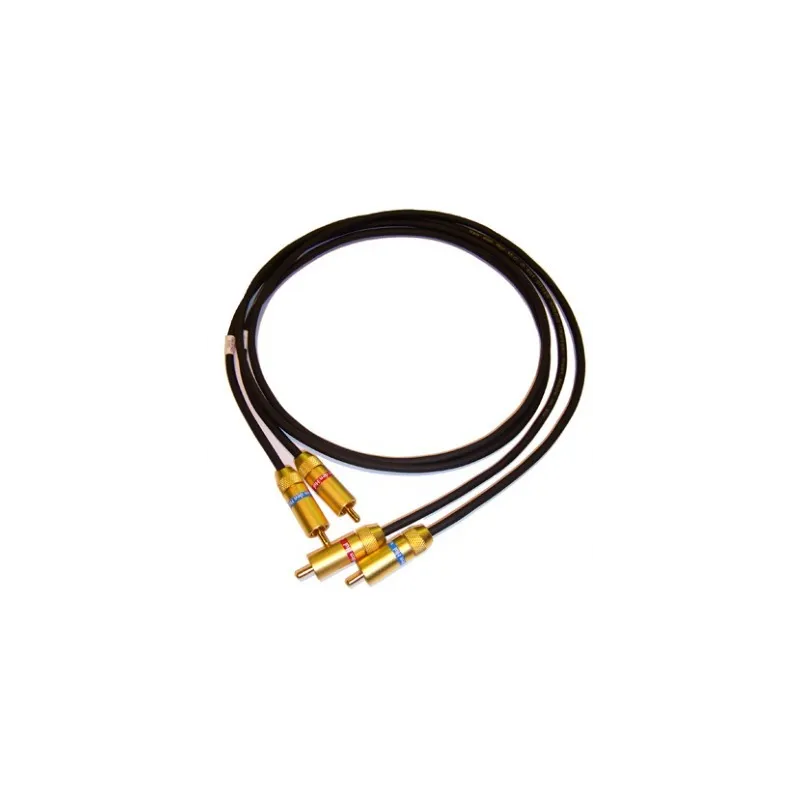

VAN DEN HUL The D-502 Hybrid II
VAN DEN HUL The D-502 Hybrid II. Cable for connecting turntables.
Bankwire payment (3% DTO)
If you choose Bankwire payment you will get a 3% discount on your order.
Shipping Policy
Return policy
The D - 502 HYBRID is the twin version of the D - 501 HYBRID.
Sonically the D - 502 HYBRID is one of our best products at a very affordable price. Its conductors’ combined quantity of silver and Linear Structured Carbon ® (LSC) are the best option available.
The D - 502 HYBRID’s sound quality is extremely detailed without any metallic character.
The D - 502 HYBRID is equipped with a centre steel wire to provide extra mechanical reinforcement and strain relief. This coated steel wire, can be soldered and used as an extra ground-lead. The total pulling force handling of just this centre wire is already more than 30 kg.
The total number of conductors involved incl. the 2 separate screens is 7. The external dimensions are: 8.4 x 4.0 mm.
For further details, please study the D - 501 HYBRID’s description.
Cable Type: Twin line (Figure of 8), screened twin core (Balanced)
Conductor Material: HYBRID: High purity dense Silver coated high purity OFC + Linear Structured Carbon ® saturated layer(s)
Design Purpose/
Application Area(s): Tonearm and mixing console / tonearm to preamp, microphone and interlink cable
Eff. Conductor Ø/Eq. AWG No./Strands: Cores: 0.15 mm² / Cores: AWG 25.4 / Cores: 19; Screen: 96
External Diameter /
-Dimensions: 8.4 mm. wide; 4.0 mm. thick
Resistance 20 °C / 68 °F: Cores: 11.3 Ohm/100 m.; Screen: 2.3 Ohm/100 m.
Capacitance: Core-core: 75 pF/m.
Insulation / Dielectric Strength / Test Voltage: Cores: Cell PE; Jacket: HULLIFLEX ® 3 / 300 Vrms min.
Connector Types Suitable: Our RCA type C - 4.0; Our tonearm connector.
Standard Sales Units / -Lengths: 100 m. reels; Other lengths: please consult your van den Hul dealer or the van den Hul distributor in your country.
Jacket Colours Available: Black
Remarks: Is a dual version of the D - 501 HYBRID.
RCA connector terminated units are equipped with a ground-end marking sticker.
