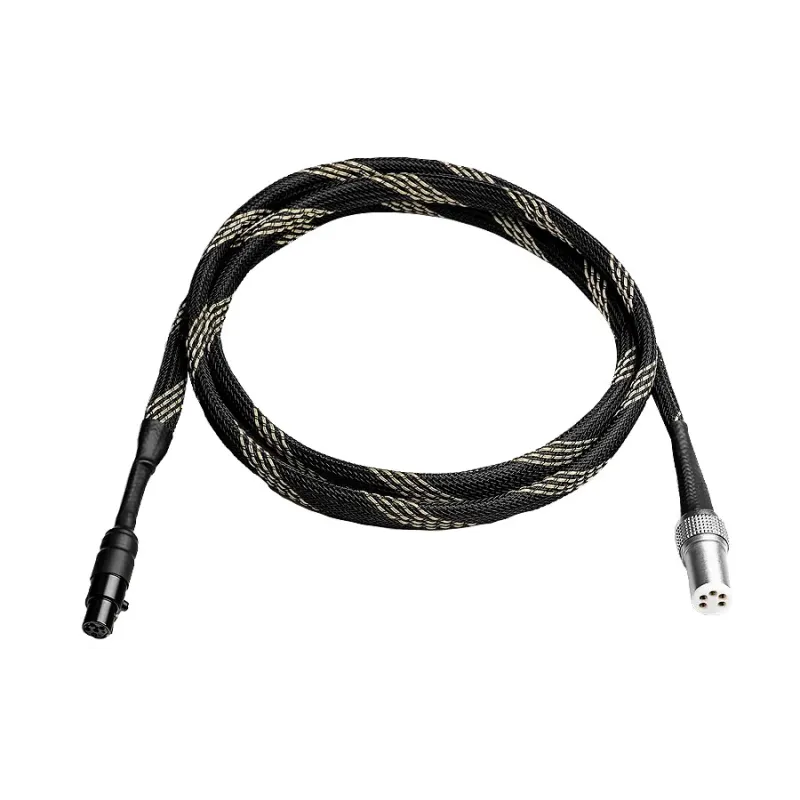

PRO-JECT Connect it Phono DS 5P - Mini XLR
Balanced cable for connecting Pro-Ject True Balanced turntables with preamplifiers via 5-pin DIN to mini XLR.
Oxygen-free copper, silver-plated connectors, low capacitance (90 pF), length 1.23 m.
Protects the phono MC signal from interference, achieving a clear and detailed sound.
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?
Balanced, Low-Capacitance Phono Cable, 5-Pin DIN > Mini XLR
The Connect it Phono DS 5P > Mini XLR cable enables the connection of Pro-Ject True Balanced turntables to True Balanced phono preamplifiers through 5-pin DIN to mini XLR connectors. A balanced signal from a moving coil (MC) cartridge remains balanced from the turntable to the 5-pin DIN output, providing the option to send this signal directly to a phono stage with a mini XLR input. This cable is constructed with flexible oxygen-free copper conductors, silver-plated copper connectors, and low capacitance of 90 pF, ideal for transmitting phono signals. Its standard length is 1.23 meters (4.04 feet).
For example, when upgrading to an MC cartridge, the Connect it Phono DS 5P > Mini XLR cable carries the balanced signal from turntables like the X8 Evolution and RPM 9 Carbon to compatible phono preamplifiers, such as the Phono Box S3 B and Phono Box DS3 B. Any combination of turntables and preamplifiers with 5-pin DIN to mini XLR connections can be paired using this cable to achieve a high-fidelity, balanced signal connection.
The Importance of Balanced Transmission
Now, balanced transmission for phono signals is more accessible than ever. Phono signals are, in fact, similar to microphone signals in terms of level: they are extremely low and require significant amplification, making them vulnerable to interference. Just as XLR balanced connections are used in the recording industry to protect microphone signals, it is also advisable to use them for phono signals, which are equally sensitive.
In the early days of recorded music, balanced connections were necessary to avoid noise. However, with the popularization of home listening, unbalanced connections (RCA) became the standard to reduce costs. At Pro-Ject, we ask: why not give our customers the opportunity to hear the difference that balanced transmission can make?
What Do I Need for a Balanced Signal?
To take advantage of this technology, an MC cartridge, a balanced turntable output, a balanced cable, and a phono stage with a balanced input are required. MC cartridges are naturally balanced, while MM cartridges are internally grounded and should be used with RCA connections for optimal performance. Most turntables come with Sumiko MM cartridges and RCA cables, allowing high-fidelity listening right out of the box. Upgrading to a balanced experience is possible when the user is ready.
Balanced Transmission Basics
Balancing is crucial at the input stage. Although a balanced signal also accumulates noise, its treatment in the balanced circuit is what makes the difference. This signal consists of positive (+) and negative (-) conductors, as well as a ground conductor. Interference affects both conductors equally, and the balanced circuit implements “common-mode rejection,” which cancels out noise and amplifies only the desired signal. This allows the signal to be amplified without interference, resulting in a more detailed and dynamic listening experience.
The result is clear to the listener: greater depth in the soundstage and incredible dynamics. Favorite records come to life, and this technology reveals every detail that may have previously gone unnoticed.
