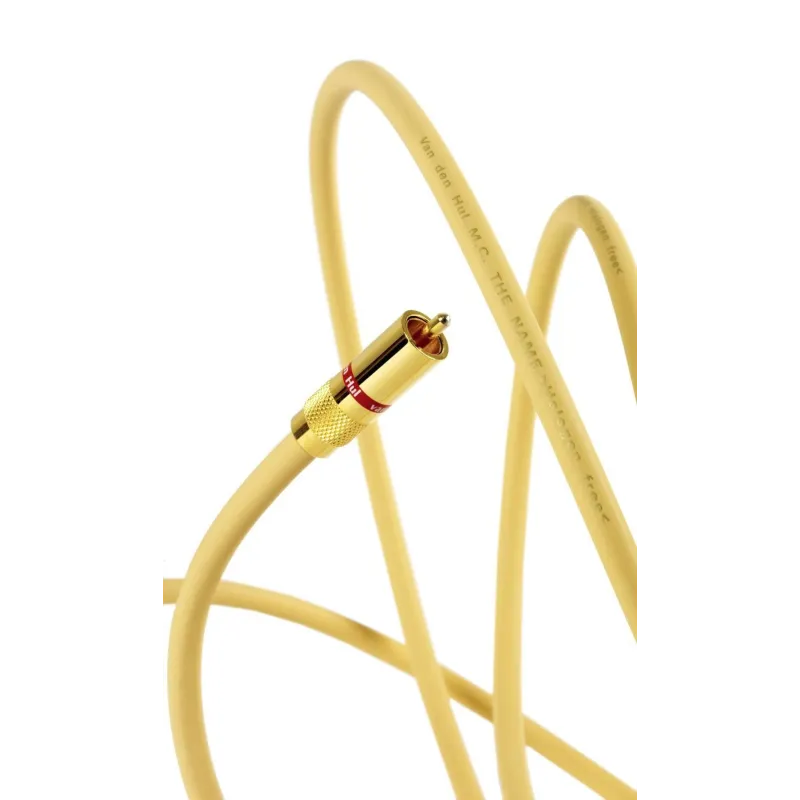

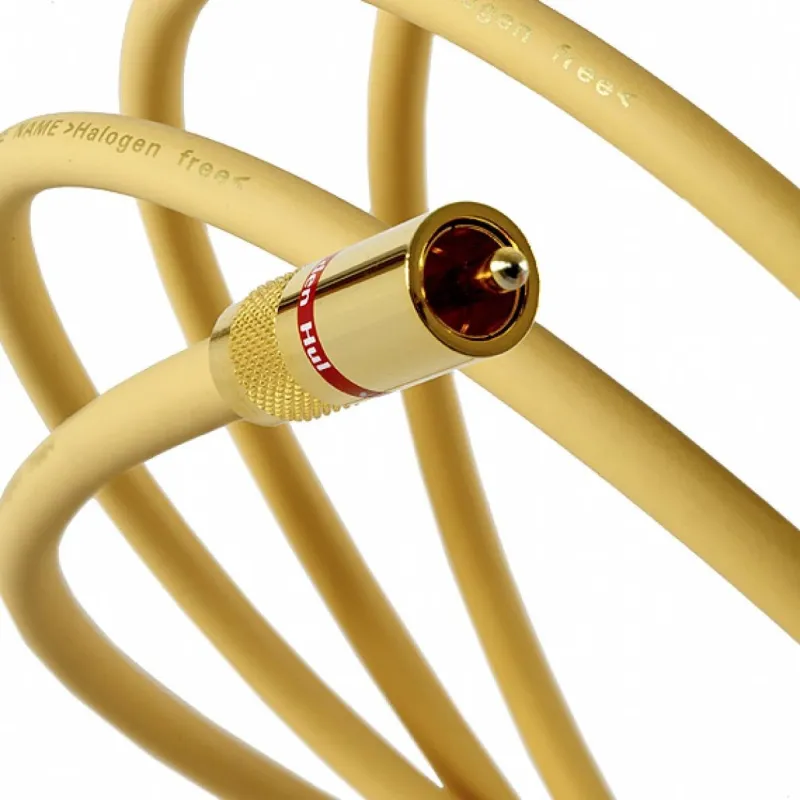

Cable Type: Coaxial
Conductor Material: Dense Silver coated high purity Matched Crystal OFC
Design Purpose / Application Area (s): Multi-purpose AV interconnect
Eff. Conductor Ø / Eq. AWG No. / Strands: Core: 0.950 mm². / AWG 17.4 / Core: 1; Screen: Al foil + 120
External Diameter / -Dimensions: 7.3 mm.
Resistance (20 ° C / 68 ° F): Core: 1.87 Ohm / 100 m .; Screen: 0.949 Ohm / 100 m.
Capacitance: 59 pF / m.
Characteristic Impedance: 75 Ohm
5053000026
