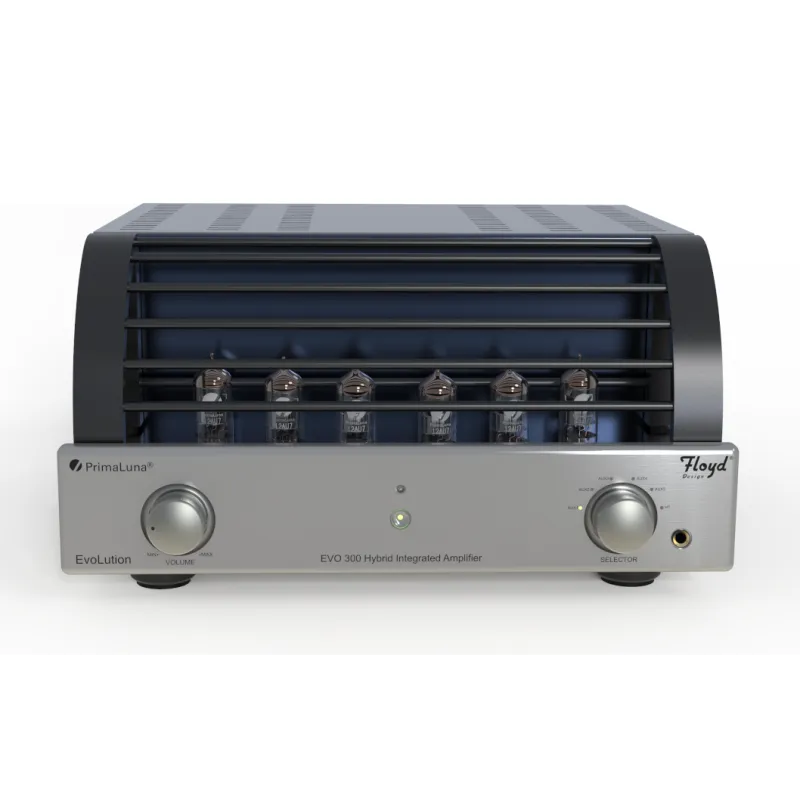

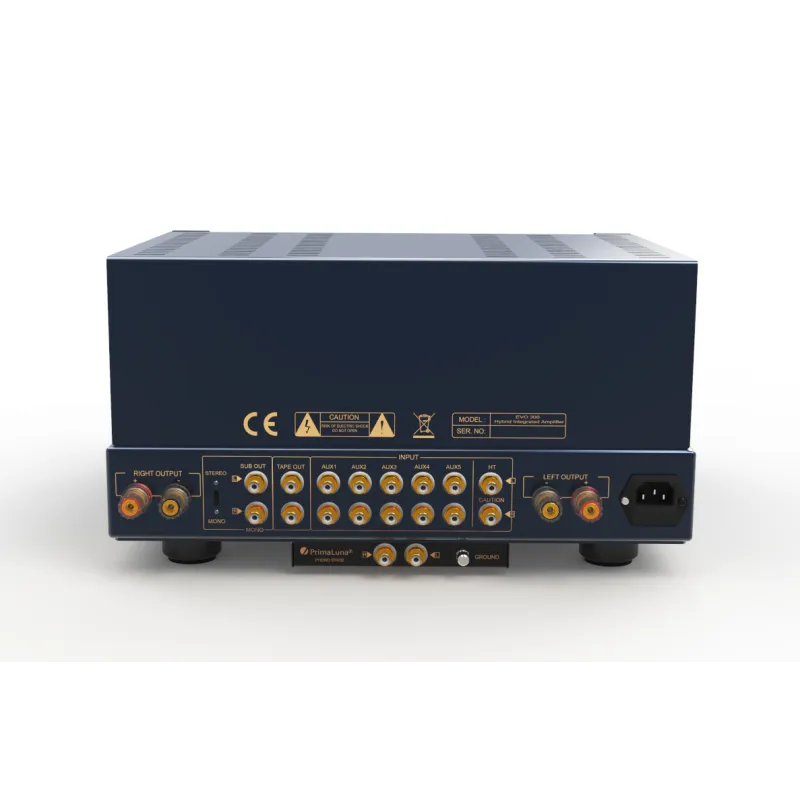

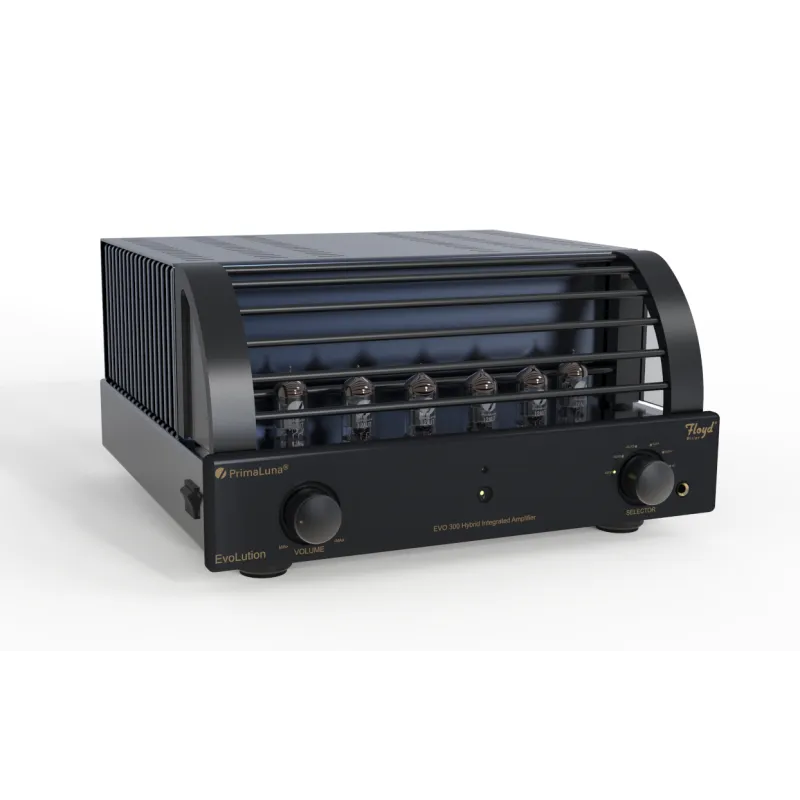

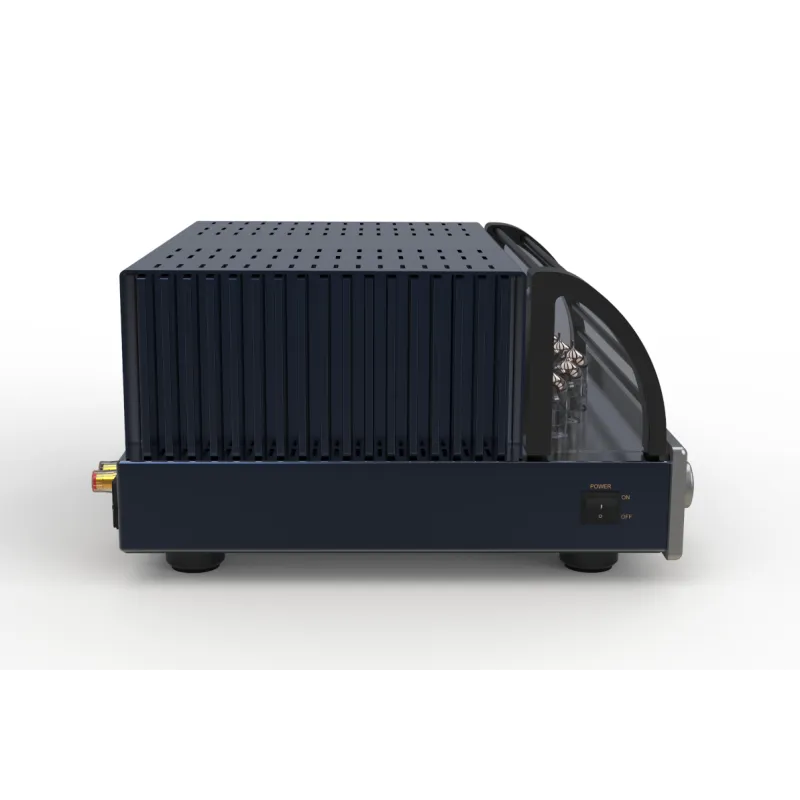

PRIMALUNA EVO 300-1 hybrid. Integrated tube amplifier.

EXDEMO Product

Colour
€4,702.48 €6,190.08 -€1,487.60

Have you seen it cheaper? Contact us >



Custom Installation Info

+

bloques info producto

Bank Transfer (3% OFF)

If you make the payment via bank transfer, you will receive an extra 3% discount on your order.

For personalized advice, contact us with no obligation

957460112
info@audiohum.com

Need to upgrade your equipment?

Would you be interested in trading in a device when purchasing this item?

Renovar equipo




The first hybrid electronics signed by PrimaLuna, the EVO 300 Hybrid stereo integrated amplifier combines a tube preamp stage and a MOSFET-based power amplification section. Specifically, the preamplifier stage uses one of PrimaLuna's widely-proven 12AU7 six-tube configurations, while the output stage combines perfectly matched Linear Systems JFETs and 20N20/20P20 MOSFETs to deliver 100 watts continuous power per channel. about 8 ohms. Regarding the organization of the circuitry, the EVO 300 Hybrid gives priority to point-to-point wiring, although where necessary, the highest quality printed circuit boards are used (2.5 mm thick instead of the 1 '6mm standard designs) with 105um (instead of the usual 35um) thick gold plated copper tracks. Likewise, the preamp stage includes two power supplies with separate transformers, while the power amplification stage incorporates a single 500 VA transformer. As is the norm in PrimaLuna, the starting point of all the mentioned power supplies is the celebrated AC Offset Killer circuit of the Dutch brand.

Technical characteristics:

Reference stereophonic integrated amplifier.

Hybrid architecture valves (input stage) / transistors (output stage).

Executed with very high quality components.

Preamp section with two independent power supplies.

Power amplification section with 500 VA transformer.

6 line inputs; phono module (MM only) optionally available.

Headphone output.

Power of 2x100 W RMS at 8 ohms or 2x150 R RMS at 4 ohms.

Frequency response of 10-80,000 Hz, +/-3 dB.

Signal to noise ratio of 105 dB.

Dimensions: 385x205x405 mm (WxHxD).

Weight: 29kg.
