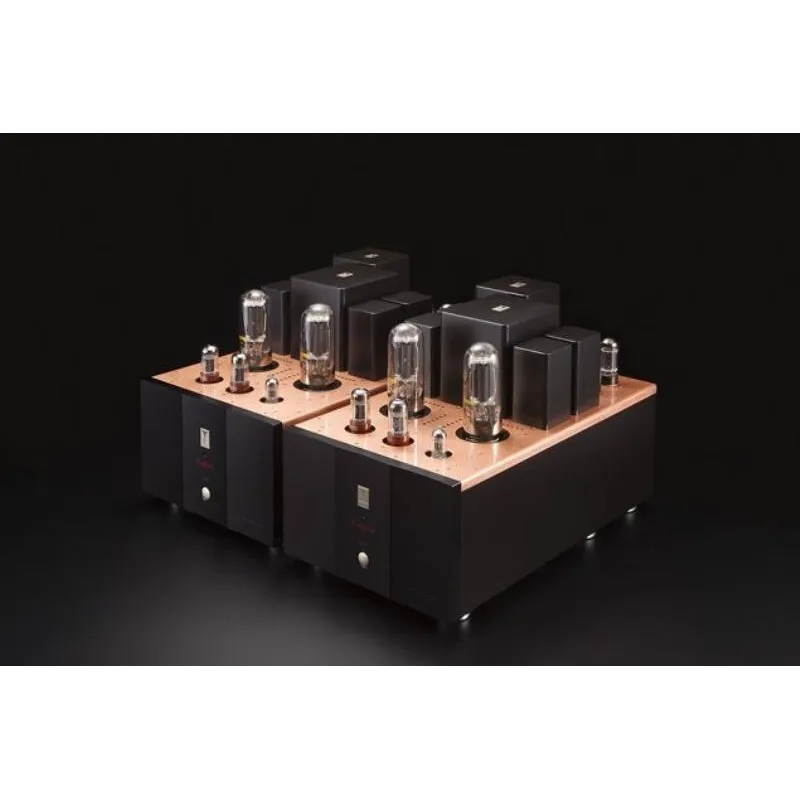

Kondo Audio Note Kagura. Power amplifier.

Kagura 211 parallel single ended monaural power amplifier has been accomplished by putting every know-how that Audio Note/Kondo created.

The world of elastic and coordinated sounds can be delineated only by analog amplifier, where music breathes of original sounds are brought back.

The new perspective flagship power amplifier is how Audio Note/Kondo would really like to be listened to by those who have been indulged in the deep charm of music.

Features:

Circuit design is configured with 12AU7～6SN7 x2 for amplification and 6SN7 x2 (cathode follower) for the driver stage to powerfully drive the large-scaled transmitter 211 tube.

These circuits are independently powered by grand-scale, low ripple and low impedance power supply sections supporting high purity amplification stages. Further, in order to attain prime audio quality expected from Kagura, each part stage has been re-examined and newly developed.

Grand-Scale Power Supply Circuit

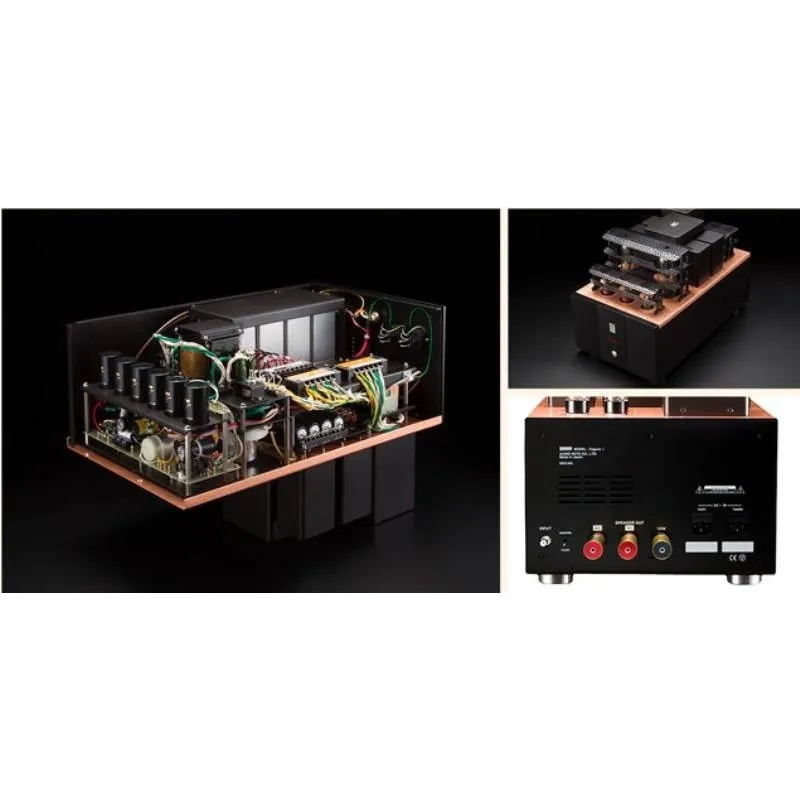

There are total of 3 power supply transformers that are employed; B power supply transformers above the rear section of the chassis, and amplifying heater transformers and rectifier heater transformers inside the chassis. Further, 4 choke coils are installed to form 3 system power supply circuits with 4 different voltages +/-200V, +450V, and +950V. Powerful and high grade power supply section with oil capacitors rated at 1000V withstand voltage, and newly developed cut-core type choke coils. In addition, two power cables come with one unit of Kagura due to the fact that main power supply and heater power supply are separated from AC inlet.

Specifications:

Product: 211 parallel single ended monaural poweramplifier

Model: Kagura-i

Rated power: 50W @1kHz, 5% THD

Frequency response: 8Hz ～ 42kHz (+0dB, -3dB @1W)

Input / Impedance: 1pc (RCA, unbalanced) / 50kΩ

Output: 4, 8 (or 16Ω)

Noise: Less than 0.5mV

Vacuum tube: 211 x2, 6SN7 x2, 12AU7 x1, GZ34 x4

Power consumption: 270W

Dimension 320mm(W) 370mm(H) 558mm(D)

(excluding protrusions)

Weight: 62kg
