ORTOFON SPU Classic GM E mkII

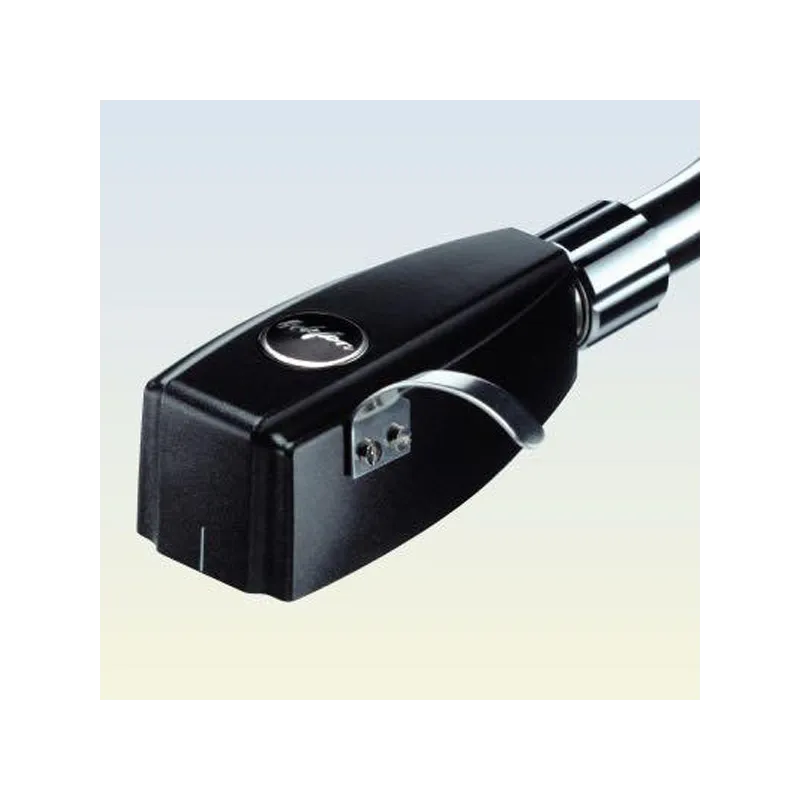

Ortofon SPU Classic GM E mkII. Mobile coil capsule (MC).
Bankwire payment (3% DTO)
If you choose Bankwire payment you will get a 3% discount on your order.
Shipping Policy
Return policy
Variant of the SPU Classic GM mkII equipped with a Nude elliptical stylus designed by Ortofon, the SPU Classic GM E mkII is a mobile coil pickup equipped with the characteristic SPU design that allows access to the special sound magic of this veteran concept of transducer by A moderate price. From the SPU it should be said that when it came to light in 1958 it offered a higher sounding quality than any other phono-picking capsule on the market for the simple reason that its design was far above its competitors. Even today, more than half a century later, the SPU continues to exhibit a sound that definitely has its own personality and continues to enjoy a great predicament among audio purists who feel a special appreciation for the "vintage" components. From a technical point of view, the SPU Classic E mkII is based on an evolved version of the two key innovations that the SPU provided at the time: a signal generator system composed of two low impedance coils and the use in the windings Of said coils, of extremely fine copper conductors, to which the arrangement of said coils is added in such a way that the two walls of the microsurface of a stereo disc generate two discrete signals with a maximum channel separation. Thanks to this, the SPU Classic GM E mkII offers what was once called "Ortofon sound", characterized by rich bass and transparent treble, added to a series of qualities difficult to define but easy To appreciate once they are perceived. A genuine classic in the history of audio.
Technical characteristics
- Mobile coil capsule (MC) of very high performance.
- Fully integrated into your dedicated case holder.
- Output voltage from 0.2 mV to 1 kHz and 5 cm / s.
- Frequency response of 20-25,000 Hz (cut-off points at -3 dB).
- Recommended Load Impedance: MC /> 10 ohms.
- Tracking Skill: 65 um (at 315 Hz).
- Dynamic Compliance: 8 um / mN.
- Recommended Support Force: 4 g.
- For moderate and high mass reading arms with SME connection.
- Weight: 30 g.
