NAGAOKA MP-110H
High-performance pre-mounted MM cartridge.
Headshell version of the MP-110 cartridge
Warm, balanced, and dynamic sound
Polished elliptical stylus (0.4 x 0.7 mil)
High output: 5 mV | Response: 20 Hz – 20 kHz
Lightweight and rigid aluminum cantilever
Tracking force: 1.5 – 2.0 g
Easy installation (standard 1/2" mount)
Replaceable and upgradeable stylus (e.g., MP-200)
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?

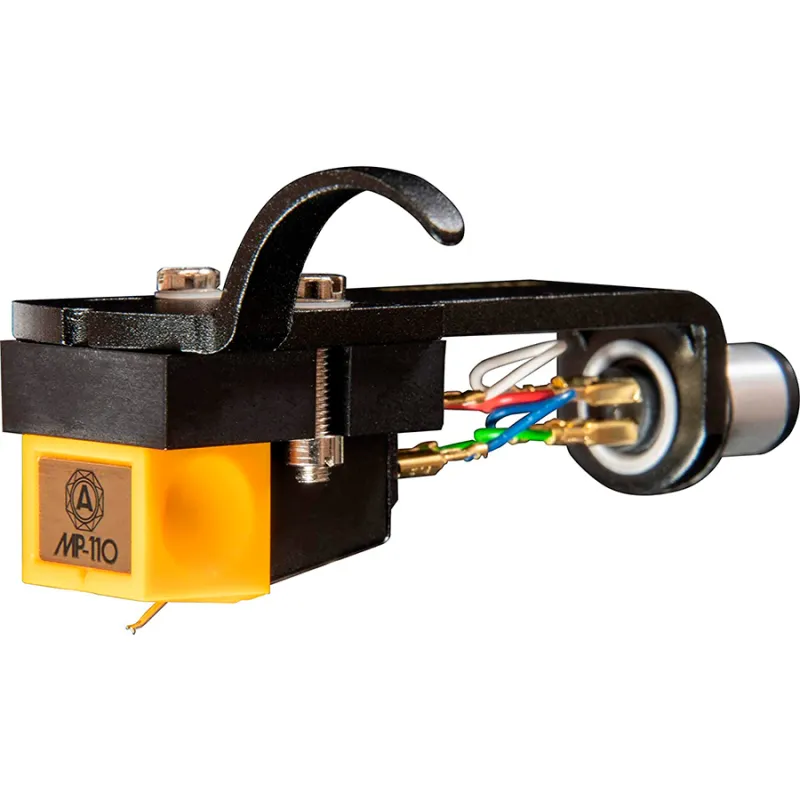

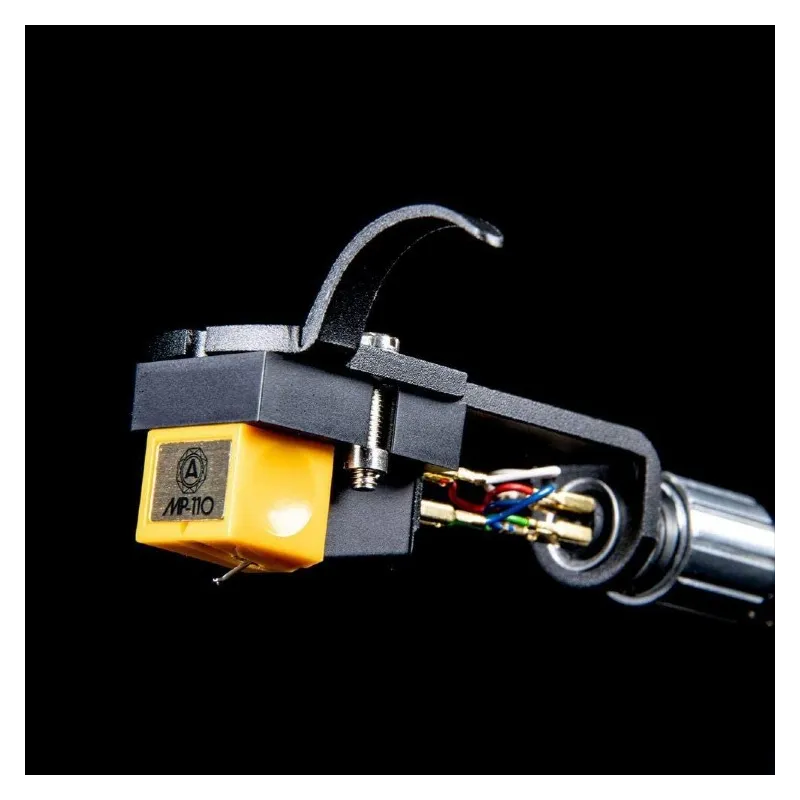

Nagaoka MP-110 H. High-Performance Pre-Mounted MM Cartridge
The Nagaoka MP-110 H is the pre-mounted headshell version of the acclaimed MP-110, one of the most highly regarded cartridges in its class for offering outstanding performance at an excellent price point. Ready to install and easy to use, it delivers a warm, dynamic, and balanced sound—ideal for those stepping into the world of vinyl with a reliable, high-quality cartridge.
Inspired by the legendary MP-11, the MP-110 H offers a natural, wide sound signature that suits all musical genres. With deep, controlled bass, articulate mids, and precise tracking, it’s a safe bet for audiophiles and analog enthusiasts alike.
Signature Nagaoka Sound: Musical, Detailed, and Warm
At its core, the MP-110 H features a superfine polished elliptical diamond stylus (0.4 x 0.7 mil), providing excellent resolution and a larger contact surface with the groove. This results in richer detail and reduced distortion. The aluminum alloy cantilever offers high rigidity and low mass, optimizing the stylus response across the frequency spectrum.
Upgradable and Easy to Maintain
The cartridge uses a Permalloy Moving Iron (MI) design, which allows for quick and easy stylus replacement. It is also compatible with higher-end Nagaoka styli, such as the MP-200, which features a boron cantilever for enhanced resolution and refinement.
Technical Specifications
Type: Moving Iron (MM – Permalloy)
Output Voltage: 5 mV (5 cm/s, 1 kHz)
Frequency Response: 20 Hz – 20 kHz
Stylus: Superfine polished elliptical diamond (0.4 x 0.7 mil)
Cantilever: Aluminum alloy
Static Compliance: 18 x 10⁻⁶ cm/dyne
Dynamic Compliance: 6.0 x 10⁻⁶ cm/dyne
Channel Separation: > 23 dB @ 1 kHz
Channel Balance: < 1.5 dB @ 1 kHz
Recommended Tracking Force: 1.5 – 2.0 g
Recommended Load Impedance: 47 kΩ
Cartridge Weight: 6.5 g
Total Weight with Headshell: 9.5 g
Included in the Box
Pre-mounted MP-110 cartridge on standard headshell
Stylus guard
(Note: No mounting screws or screwdriver included)
Plug & Play Installation
With the cartridge already mounted on a universal headshell, the MP-110 H can be installed in seconds on any tonearm that supports a standard 1/2” mount. This makes it ideal for those who want to skip the setup hassle and start enjoying their vinyl collection immediately.
Recommended Break-In Period
To reach its full sonic potential, Nagaoka recommends a break-in period of around 30 hours. After that, the MP-110 H reveals all of its musicality, tonal accuracy, and engaging dynamics.
Whether you're upgrading from a basic cartridge or diving into vinyl for the first time, the Nagaoka MP-110 H offers a truly enjoyable listening experience with the legendary craftsmanship and sound quality Nagaoka is known for.
