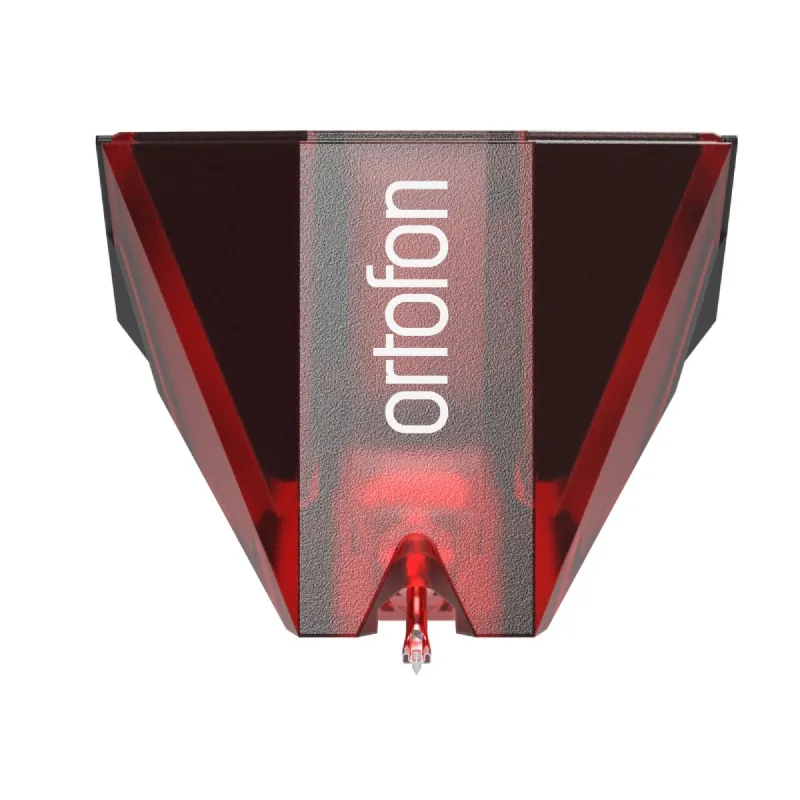

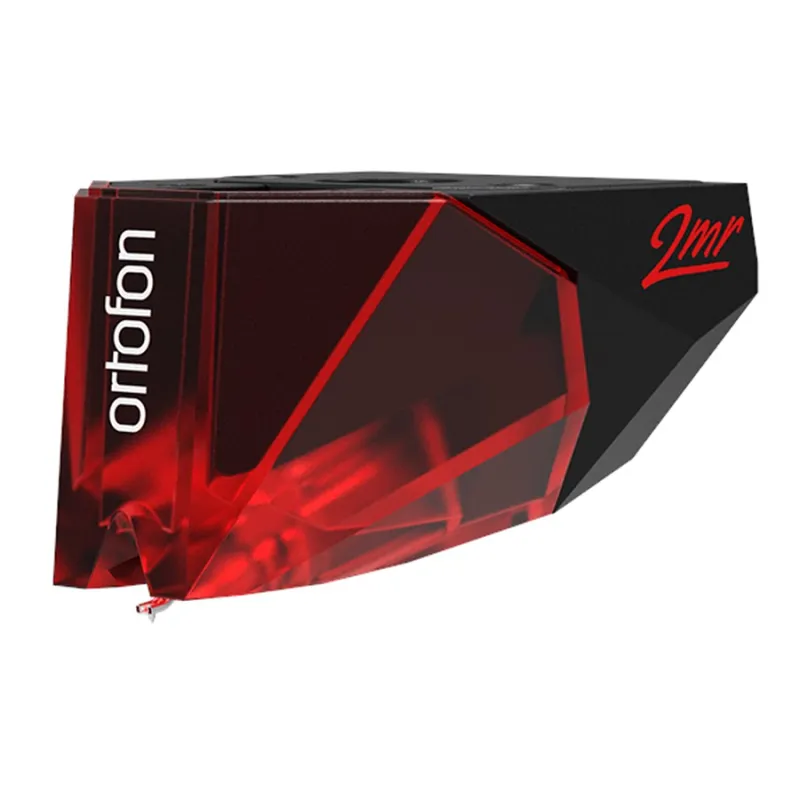

The 2M Red cartridge is a fascinating entry into the world of music, offering remarkable features to enhance the listening experience. Here is a detailed description:
Features:
Elliptical Diamond with Split Pole Tip and Pins:
Provides accurate sound reproduction with a copper wire.
Enhanced Motor:
Offers an increased output of 5.5 mV for optimised sound reproduction.
Easy Mounting Design:
Designed for easy mounting on common turntables, adjusting weight and size.
Versatile Compatibility:
Offers excellent compatibility with a variety of playback systems and phono preamplifiers.
Open and Dynamic Sound:
Produces an open, dynamic sound with a subtle touch of warmth.
Technical Specifications:
- Output Voltage (1000 Hz, 5 cm/sec): 5.5 mV.
- Channel Balance (1 kHz): 1.5 dB.
- Channel Separation (1 kHz): 22 dB.
- Channel Separation (15 kHz): 15 dB.
- Frequency Response: 20-20,000 Hz (+3 / -1 dB).
- Tracking Capability (315 Hz): 70 µm (with recommended tracking force).
- Lateral Dynamic Compliance: 20 µm/mN.
- Pencil Type: Elliptical.
- Pencil Tip Radius: r/R 8/18 µm.
- Tracking Force Range: 1.6-2.0 g (16-20 mN).
- Recommended Tracking Force: 1.8 g (18 mN).
- Tracking Angle: 20°.
- Internal Impedance, DC Resistance: 1.3 kOhm.
- Internal Inductance: 700 mH.
- Recommended Load Resistance: 47 kOhm.
- Recommended Load Capacitance: 150-300 pF.
- Cartridge Colour, Body/Optical Pen: Black/Red.
- 2MR Cartridge Weight: 6 g.
- Verso 2M and 2M Cartridge Weight: 7.2 g.
- 2M Preassembled Cartridge Weight: 16.7 g.
This 2M Red cartridge stands out for its balance of sound quality, ease of installation and playback versatility, making it an excellent choice for audiophiles and music lovers.
