ORTOFON ST-7

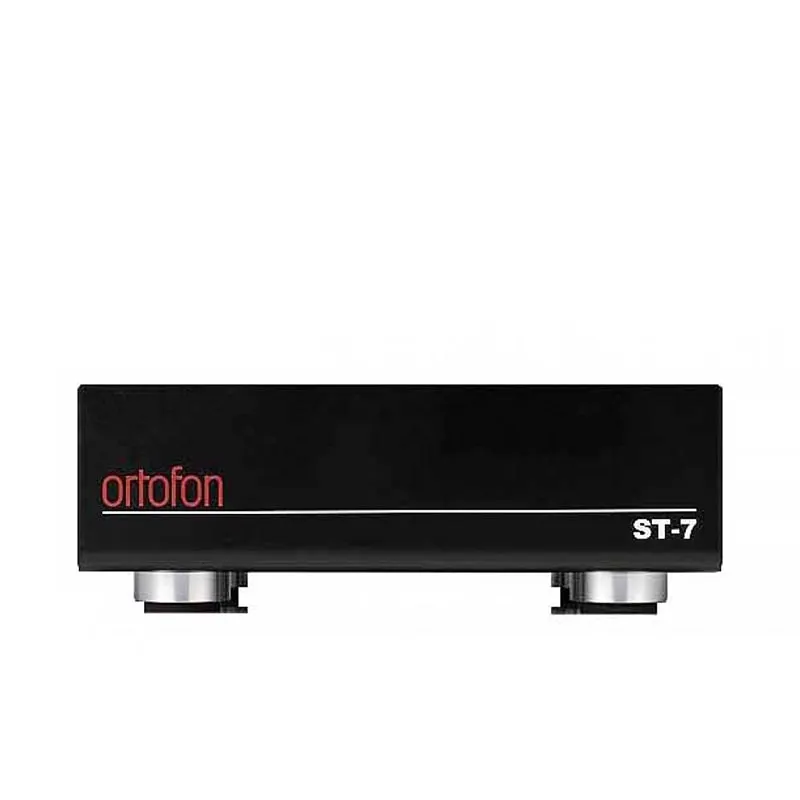

ORTOFON ST-7. A versatile MC transformer. Compact and stylish, the ST-7 has a solid casing supported by four rubber feet, helping to reduce unwanted vibrations in the unit.
If you choose Bankwire payment you will get a 3% discount on your order.
Shipping Policy
Return policy

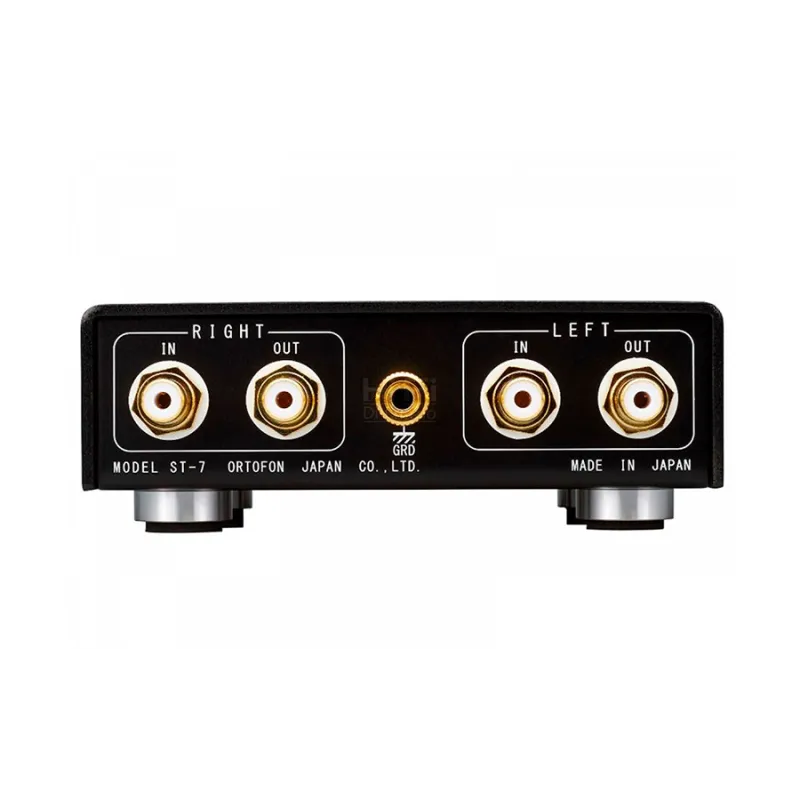

High-quality internal wires together with high-quality gold-plated terminals provide optimal signal transmission. The sandwich winding structure, used in the ST-7, significantly improves the high frequency response and provides a very clear and open sound throughout the entire frequency range.
In addition, the dual-mono design, which includes individual shielding of the two channels, improves the image of the transformer and reduces the influence of ambient noise.
The ST-7 transformer will be the perfect match for, among other MC cartridges, MC Quintet Series and SPU Classic models.
Features:
Compact and elegant.
Sandwich rope structure.
Permalloy shield housing for left and right channels separately.
ST-7 Transformer Datasheet:
Frequency Response: 15-45 kHz (+0 dB -2.5 dB).
Gain: 24 dB at 1 kHz.
Recommended cartridge impedance: 2 - 60.
Recommended load: 47 k // 200 pF.
Dimensions: 122mm (width) × 43.5mm (height) × 102mm (depth).
Weight: 790 g.
