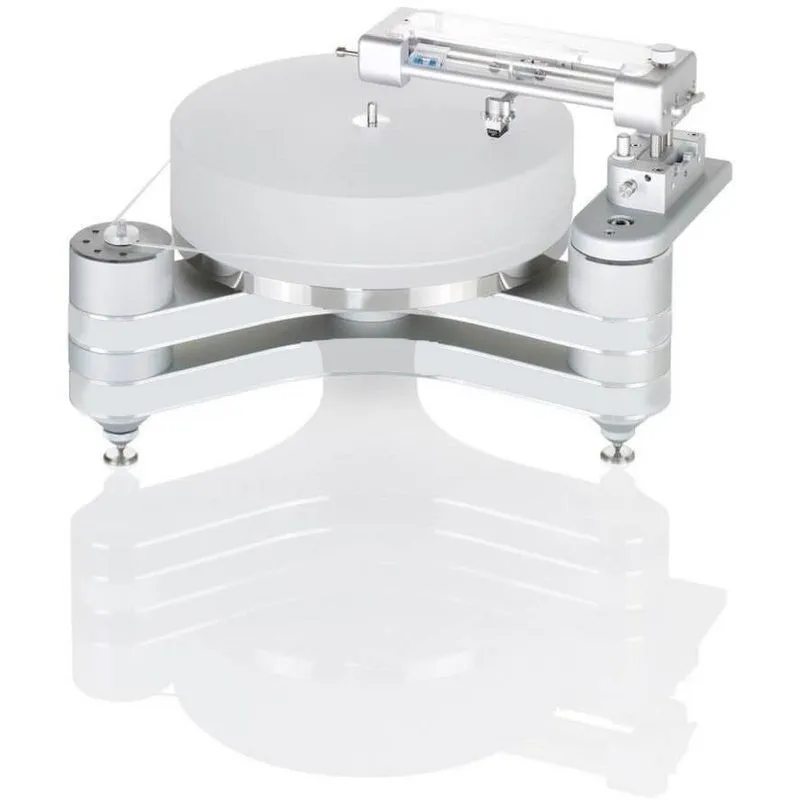

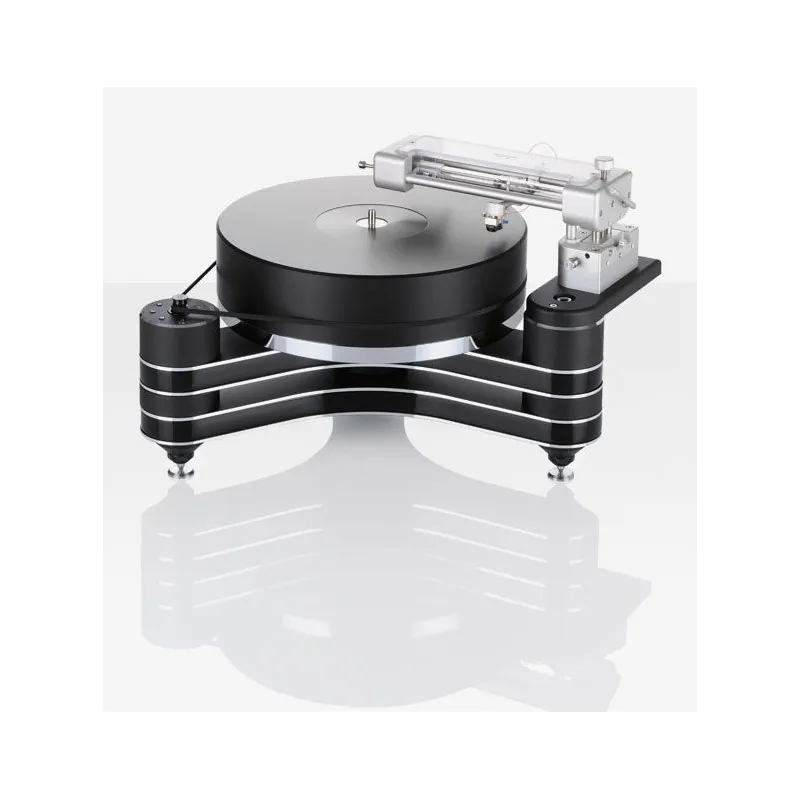

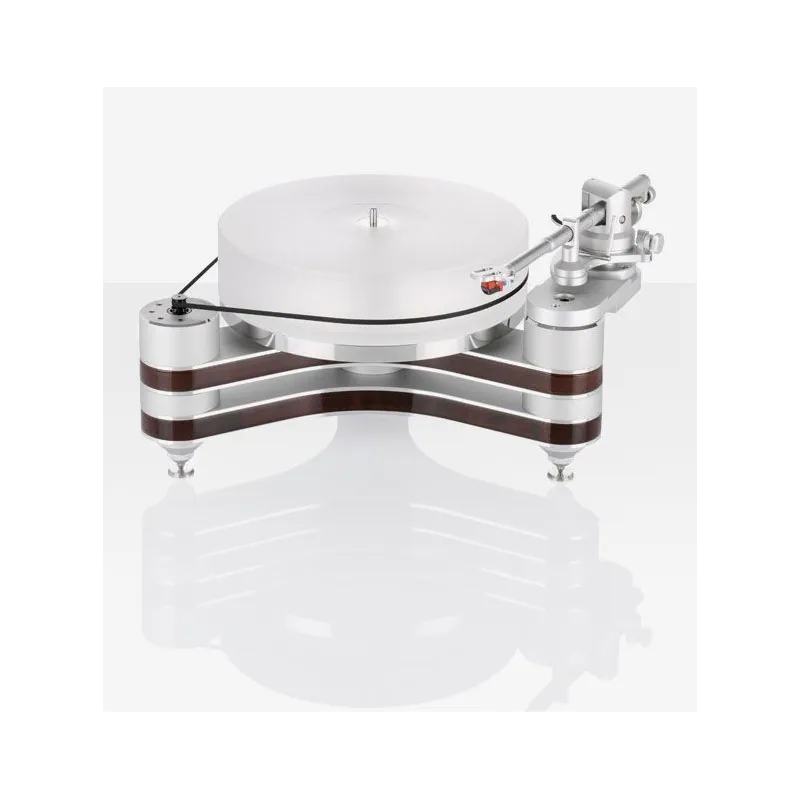

CLEARAUDIO Innovation
CLEARAUDIO Innovation. Manual turntable. Arm not included.
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?
CLEARAUDIO Innovation. Manual turntable. Arm not included.
In the world of turntable construction, Innovation is the latest technological prototype and technological role model in the world of turntable construction.
An infrared sensor combined with Clearaudio's Optical Speed Control (OSC) ensures an excellent level of speed stability, a prerequisite for optimal vinyl listening. A separately housed high-torque DC motor effortlessly rotates the 70 mm thick platter precisely machined from high-density acrylic material. The platter rotates in a virtually friction-free environment on the 15 mm thick stainless steel secondary platter, thanks to Clearaudio's patented ceramic magnetic bearing (CMB). It can play vinyl at three different rotation speeds, the rotation speed can be easily selected at the push of a button and it is possible to install a second arm.
Technical specifications:
CONSTRUCTION DETAILS:
Optimised chassis shape to avoid resonance, belt drive with speed adjustment control.
Resonance-optimised drive geometry
Aluminium and plywood sandwich construction
Height adjustable drive feet
Optical Speed Control (OSC) speed control
Two arm installation possible
SPEED CHANGE: Convenient push-button switching between 33 1/3 rpm, 45 rpm and 78 rpm
MOTOR: High torque DC motor, exclusively made for Clearaudio Real-time electronic speed control "OSC" via infrared sensor.
BEARING SYSTEM:
Clearaudio's patented CMB bearing technology.
Inverted ceramic bearing shaft, ground and polished, sintered bronze bushing, including patented CMB magnetic bearing technology.
PLATE MATERIAL Precision CNC-machined surface, solid 15 mm stainless steel sub-plate, dynamically balanced
70 mm main platter, made of high-density PM material and excellent dimensional stability, dynamically balanced
PLATEN HEIGHT:
70 mm main plate
15 mm stainless steel sub-plate
PLUS SPECIAL FEATURES:
All platter supports allow fine adjustment
Optical Speed Control (OSC)
Optional slimmer shaft to compensate for the off-centre position of some LPs
Two-arm playback possible
SPEED ACCURACY (MEASURED): <+/- 0.05%.
POWER CONSUMPTION:
Max. power consumption: 9.3 watts
Operating: 2.5 watts
Standby mode: 2.5 watts
Off: 0 watts
TOTAL WEIGHT: Approximately 24 kg (without arm and power supply)
DIMENSIONS (W X H X D): 460 mm x 220 mm x 485 mm (without arm)
MANUFACTURER'S WARRANTY: 5 years
