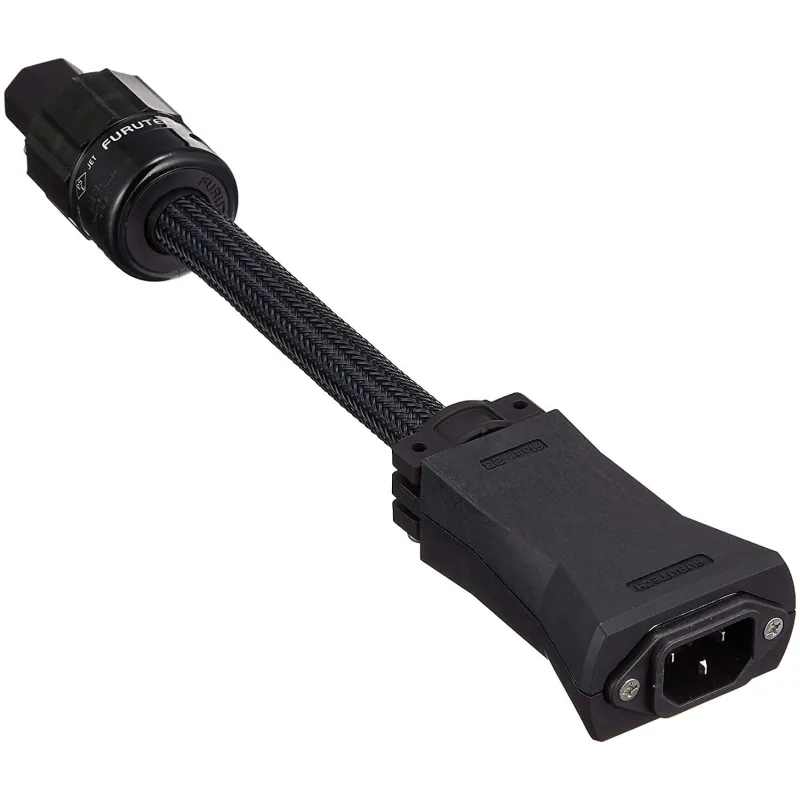

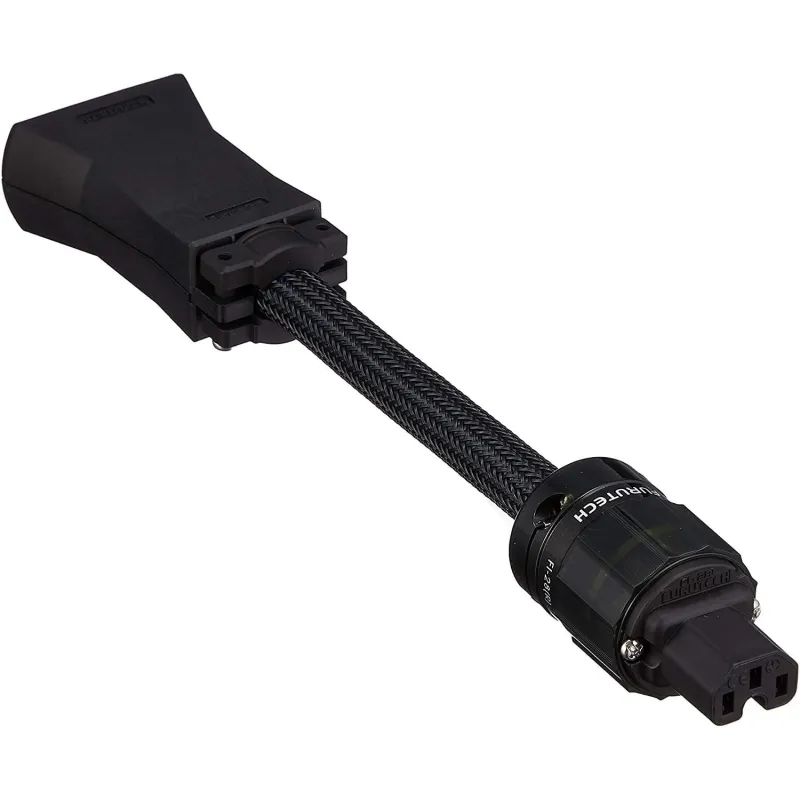

FURUTECH Flow-28
Furutech Flow-28. Filter.
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?
Furutech Flow-28. Filter.
Characteristics:
The cover of the filtering unit combines two “active” materials: Nano-sized ceramic particles and powdered carbon. Nylon and fiberglass are incorporated as well forming an extremely effective, mechanically and electrically damped body.
For connection between power cables and power distributors or power cables and components. Eliminate and prevent radiated AC noise
Fitted with Furutech’s rhodium-plated α (Alpha) nonmagnetic FI-28R connector
AC-1501R EMI-filtering IEC, rhodium-plated α (Alpha) nonmagnetic copper alloy conductors
AC-1501R EMI filter features a parallel circuit with in-line coil and condenser, reducing noise at 1MHz by 10dB and at 10MHz by more than 30dB
Floating Field Damper (Earth/Ground Jumper System) US Patent No.: 6,669,491
Patent-pending metal cable clamp improves grip and reduces mechanically and electrically induced distortion
Cable Specifications :
Conductors:56-strand (Inner) and 29-strand (Outer) α (Alpha) OCC conductor・0.175mm x 3 cores
Insulation-1: Special irradiated PE (Red/Natural/Yellow) 3.45mm diameter
Insulation-2: irradiated PE surrounded by Teflon tape wrap, 3.6mm diameter
Inner Sheath: RoHS-compliant flexible PVC incorporating carbon particles
Shield: 0.12mm diameter α (Alpha) Conductor wire braid
Sheath: RoHS-compliant flexible PVC, 14.2mm diameter
Jacket: Vibration damping special Nylon Yarn Braid (Black)
α (Alpha) conductor shield for protection against radiated noise
RoHS-compliant flexible PVC sheath improves vibration isolation
Special high-grade PE Insulation contributes to reduced capacitance
Incorporating Furutech’s special passive GC-303 EMI filtering material
Filter specifications:
The AC-1501R EMI Filtering IEC Input
Rhodium plated α (Alpha) non-magnetic copper alloy conductors
Outer cover Cr Plated steel plate
Inner cover Nylon glass fiber
Inner Box Nylon glass fiber
Inner parts held by Piezo Epoxy
Rating AC 115V/250V 15A 50/60Hz
2501000035
