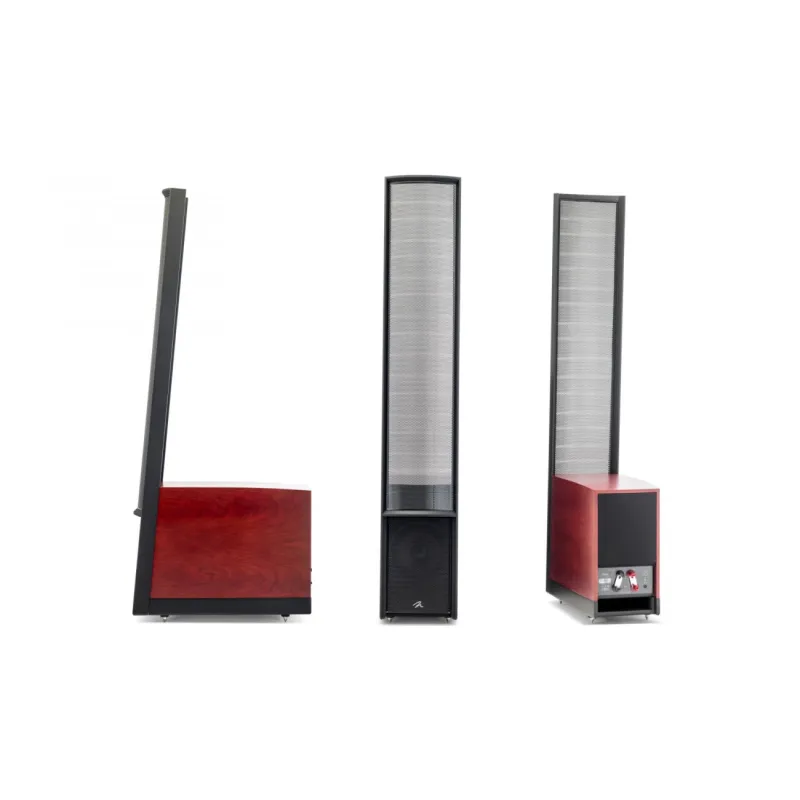

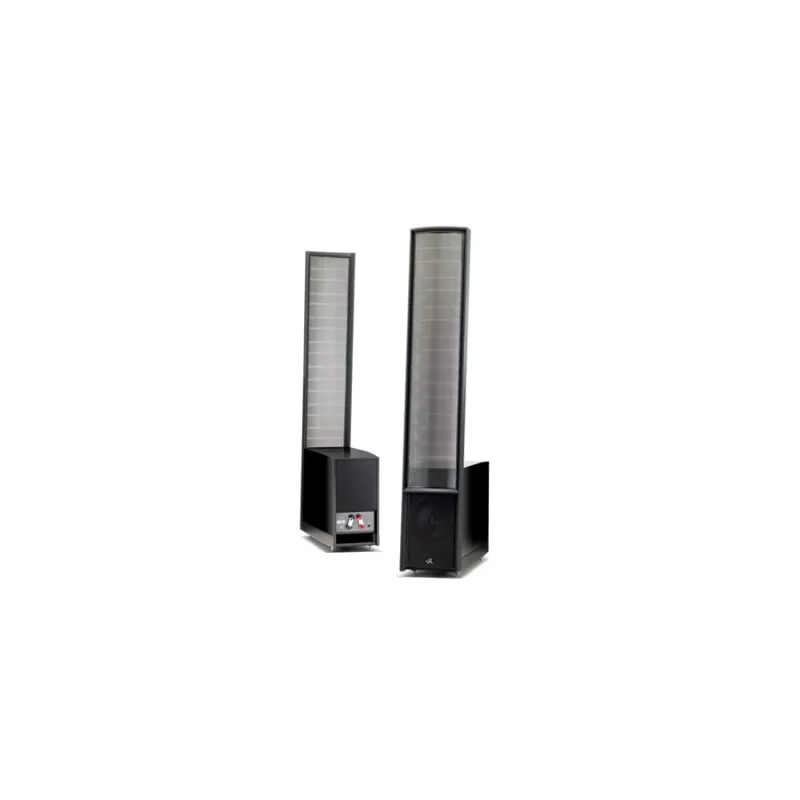

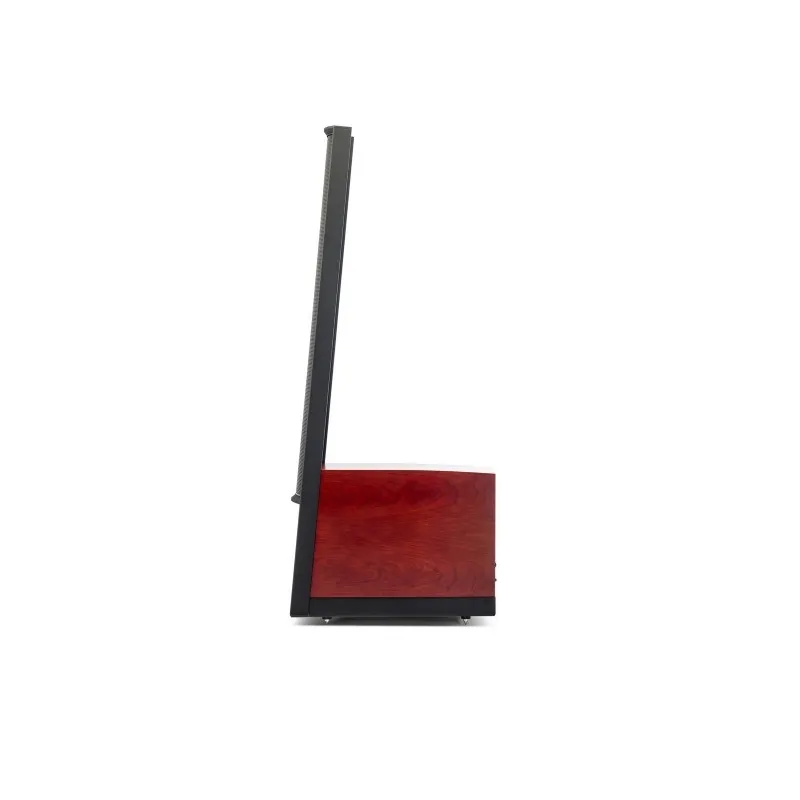

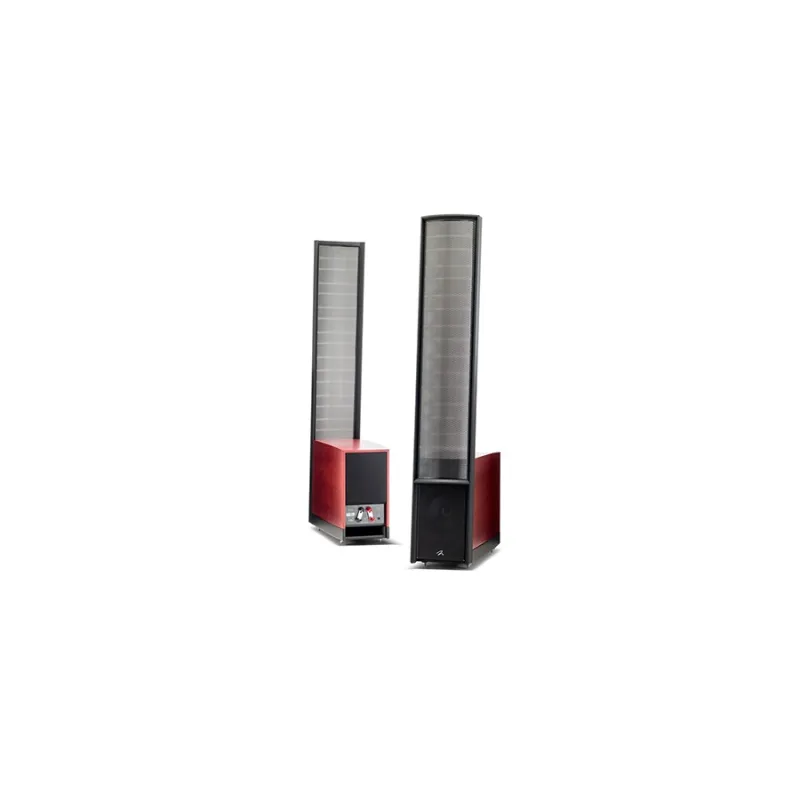

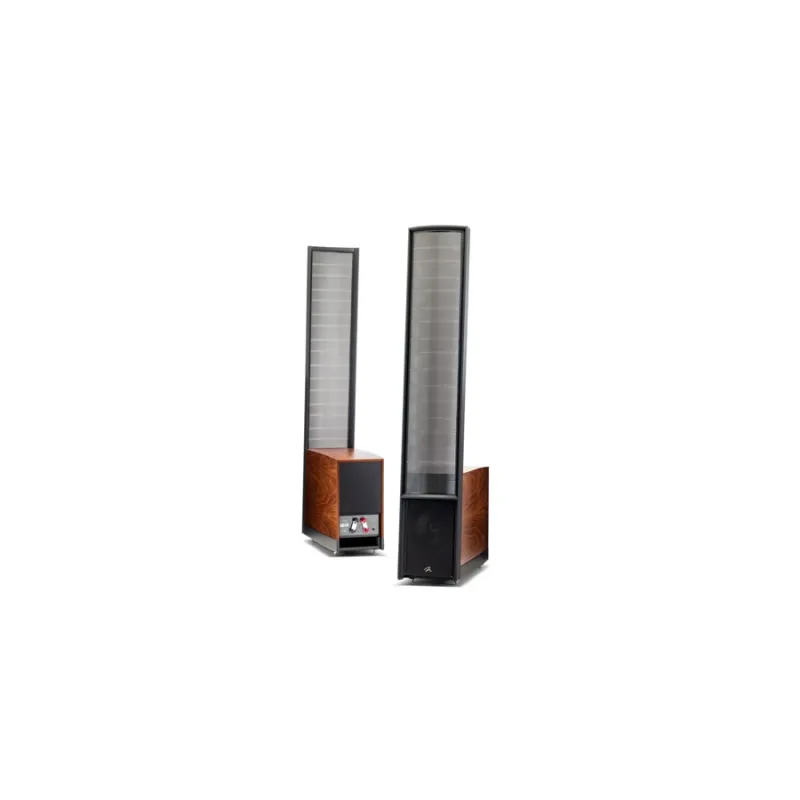

Very High Performance Hybrid Acoustic Display.
State-of-the-art CLS XStat Electrostatic Panel

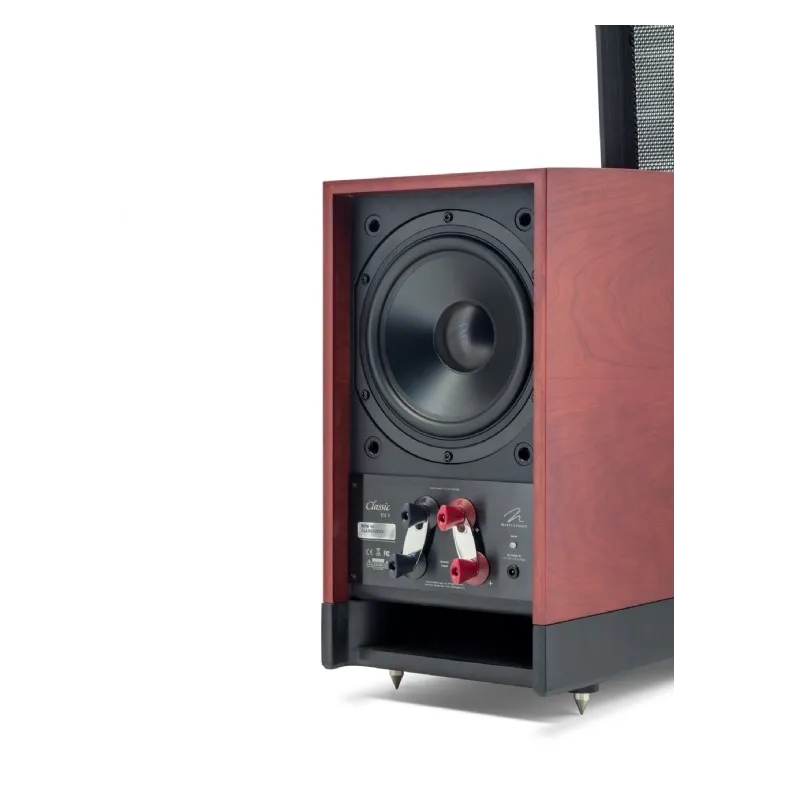

Passive subwoofer in non-resonant enclosure
2 x 203 mm (8") aluminium woofers
High-precision audiophile filter
Frequency response: 34 - 23,000 Hz (±3 dB)
Sensitivity: 90 dB/W/m
Rated impedance: 4 ohms (min. 0.8 ohms at 20 kHz)
Pair price.
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Would you be interested in trading in a device when purchasing this item?

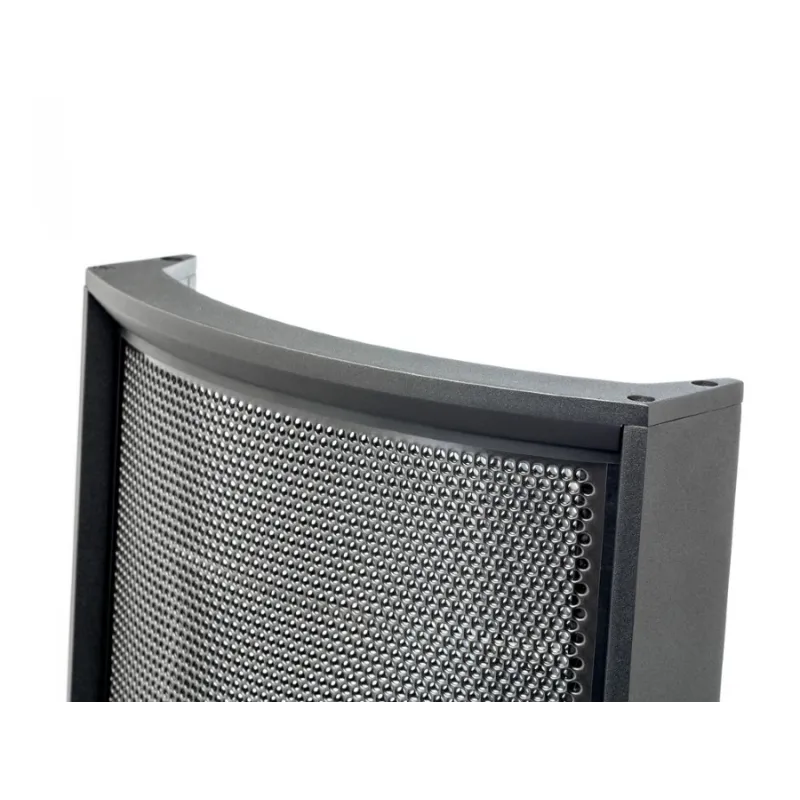

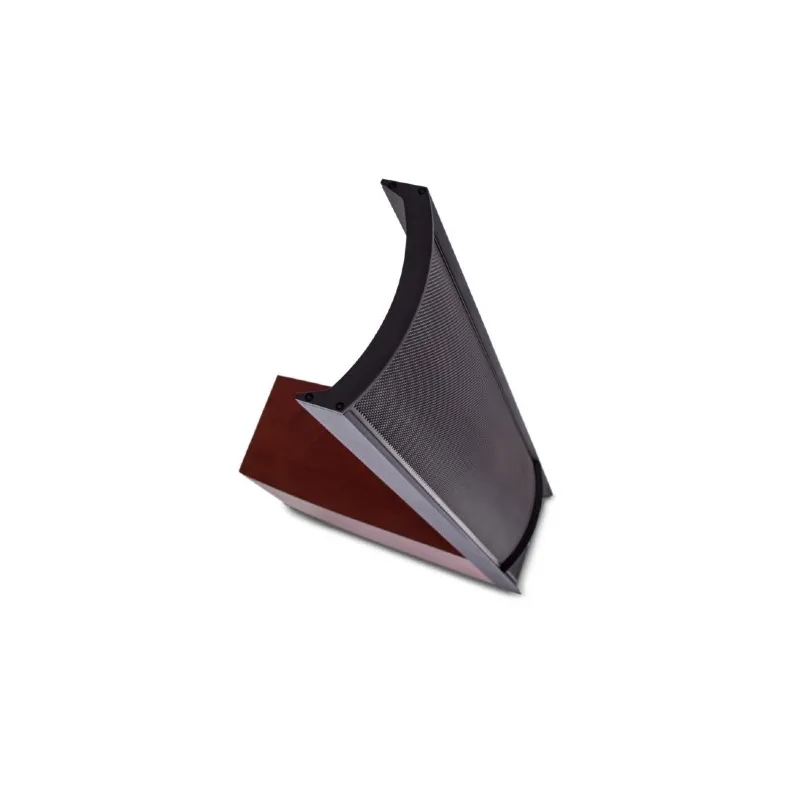

As in its older brothers, the ESL 9 uses a classic configuration: the combination of one of the brand's exclusive XStat CLS curved electrostatic panels to reproduce the mid and high frequencies of the spectrum and a bass and subwoofer emission system. passive mounted in an enclosure that supports the entire assembly. Of the aforementioned panel, it should be noted that it belongs to the latest generation developed by MartinLogan and that its 114 centimeters in height and the 30 degrees of dispersion in the horizontal plane provided by its curved profile allow it to become a sound source of exceptional realism. The sophisticated “MicroPerf” technology also contributes significantly to this, which allows the diaphragm to have an emissive area much greater than that of any electrostatic panel of the same size, efficiently increasing the sound pressure level. On the other hand, the use of an extremely rigid frame –AirFrame Blade technology- minimizes vibrations that can color the sound, while its perfect alignment with the lower bass enclosure allows optimization of phase response. As regards the aforementioned enclosure, it uses the non-resonant asymmetrical chamber design common in the latest generations of MartinLogan hybrid speakers, in this case with two electrodynamic loudspeakers with a 203 mm diameter aluminum-coated cone. The new MartinLogan is completed with a crossover filter that, also as is the tradition of the American brand, uses very high-quality components specifically selected for their sound qualities, such as a transformer with hand-wound windings, air-core coils , DC low resistance laminated steel coils and polyester capacitors.
Very high performance acoustic screen.
Hybrid configuration with electrostatic panel + electrodynamic subwoofer.
MartinLogan exclusive new generation CLS XStat electrostatic panel.
Passive subwoofer mounted in a non-resonant enclosure.
Crossover filter executed with audiophile grade components.
Great versatility High Fidelity/Home Cinema.

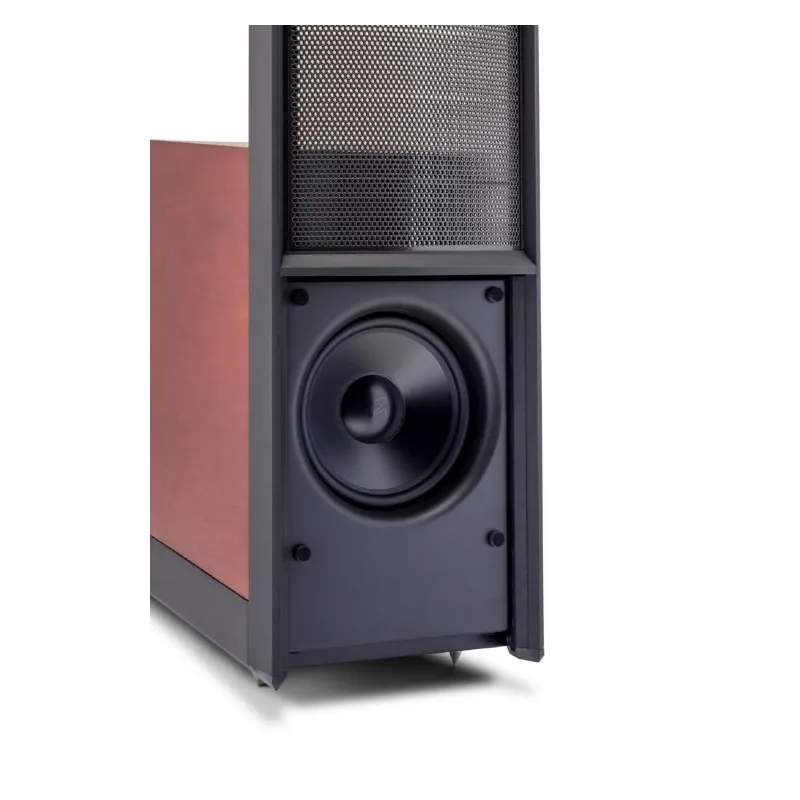

2 woofers with 203 mm (8”) aluminum cone.
Frequency response of 34-23,000 Hz, +/-3 dB.
Sensitivity of 90 dB/W/m.
Nominal impedance of 4 ohms (minimum of 0.8 ohms at 20 kHz).
Power of the associated amplifier: 50-400 W at 4 ohms.
Dimensions: 364x1,520x646 mm (W x H x D).
Weight: 35.4 kg.
