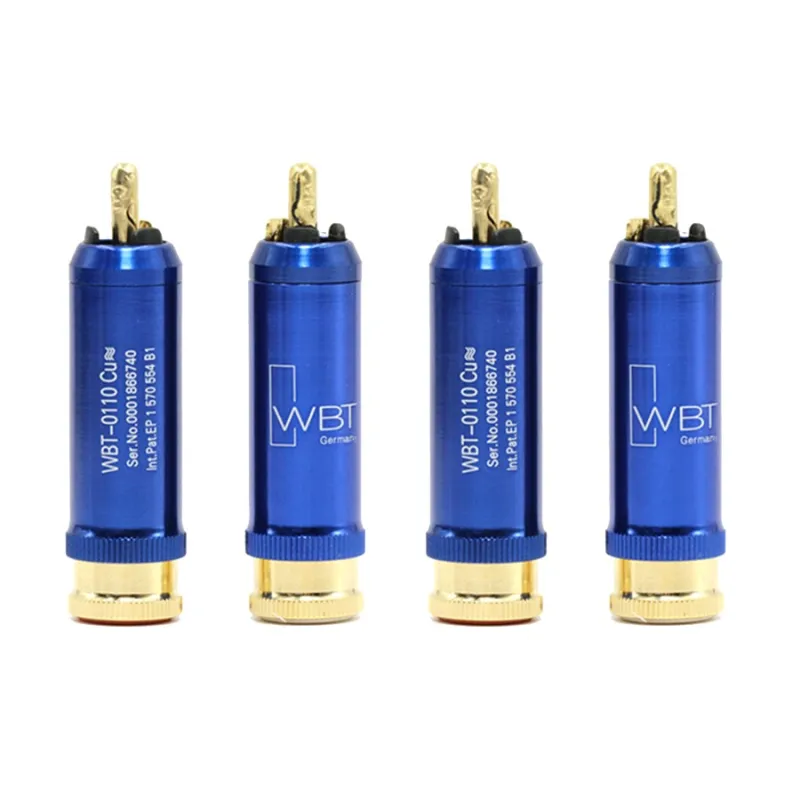

WBT WBT-0110 Cu. RCA Male Copper Connector. NEXTGEN series (4 units)

The characteristic impedance of 75 ohms means these jacks carry not only great analog signals, but also great digital audio and video signals. The transmission bandwidth is 1 GHz.

Eddy currents occur in metallic components close to where alternating currents flow. These currents can cause significant distortions in the signal. The WBT-0110 Cu is designed in such a way that eddy currents do not occur at all.

The contact elements of the plug are made of high-purity copper, one of the best electrical conductors, to ensure optimal signal transmission. The metal is gold plated without nickel, so that the surface does not rust and does not impair the quality of the contact.

The clamping mechanism, which works in the same way as the clamping device on a drill, firmly holds the outer contact against the RCA jack. The high clamping pressure not only ensures a secure connection but also minimizes transition resistance.

The clamping sleeve is designed with two sections, so that the front section moves freely when the rear section rotates. This eliminates the risk of torsional stress occurring in the contact elements. The pressure wedge between the contact and the sleeve is made of plastic, which means that the sleeve is completely isolated and cannot influence the signal. In addition, any size variation in the outer contact of a sleeve is compensated for, thus ensuring a perfect fit.

The center pin is ideally slotted and shaped, providing a firm yet springy contact that ensures a long-lasting and reliable electrical connection with absolutely minimal transition resistance.

The central contact element can be removed to facilitate the soldering of the cable. WBT provides a next generation special tool for this purpose to OEM customers. WBT recommends the silver solder WBT-0800, which does not damage the surface (see also Connection by solder).

A Torx screw provides reliable cable strain relief.

Specs:

Cable diameter: up to 9 mm

Characteristic impedance (typ.): 75 ohms

Connection technology: welding

Identification: available in 9 colors

Recommended tool:

Torx key T.6 WBT-0488

(supplied with each final consumption package)

WBT-0481 Screwdriver for OEM Professional Assembly
