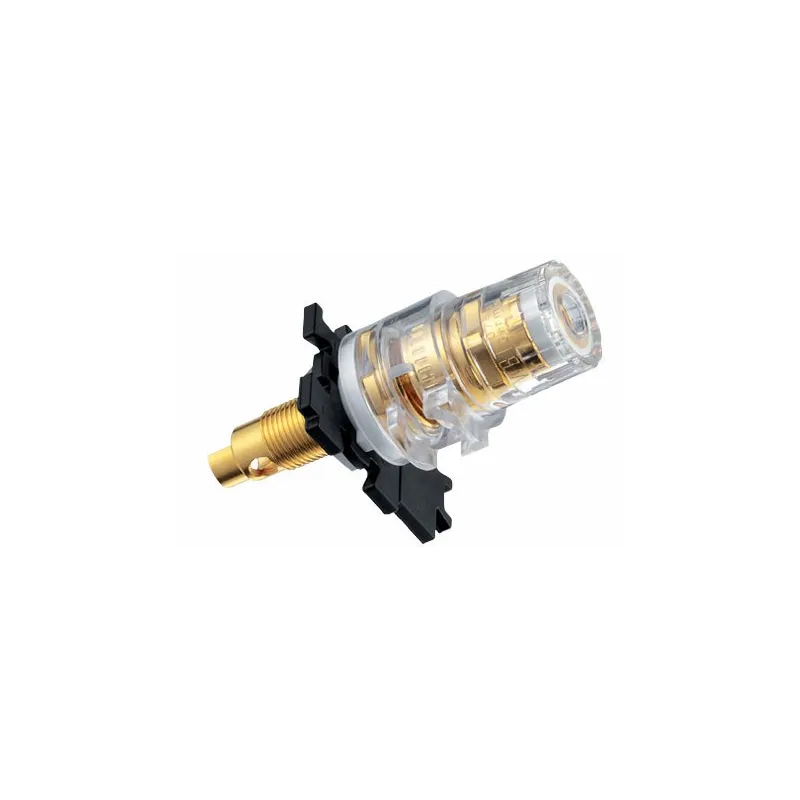

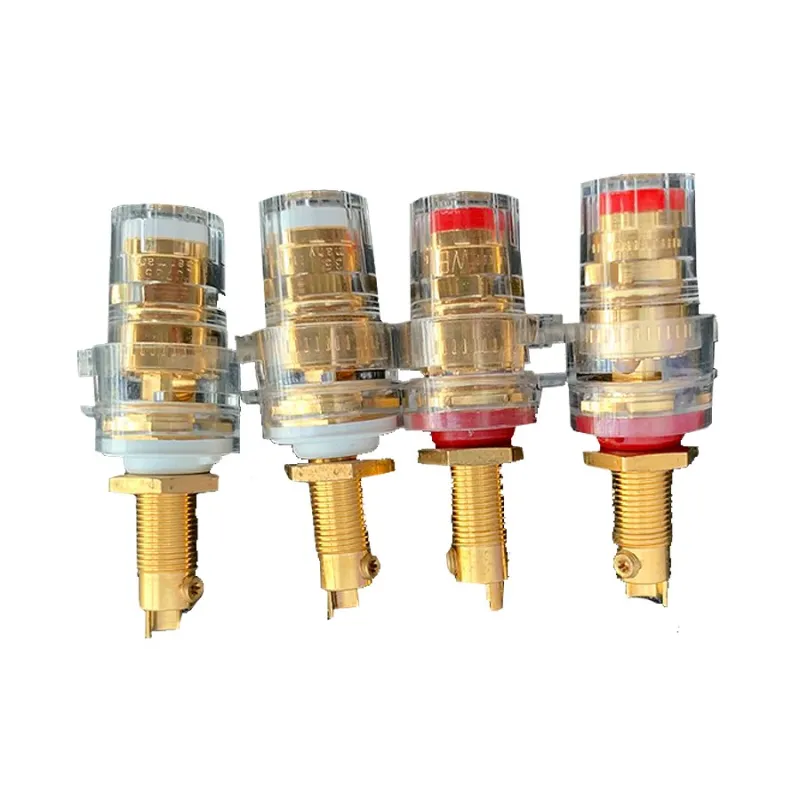

WBT WBT-0735. Unipolar pole terminal. CLASSIC series. Crimp or solder. (4 units)

" Extremely high contact pressure for blades due to fine thread and cross-milled surface

» Two-piece clamping nut for maximum connection strength.

" Solder or crimp connection with Torx screw

"Compliant with CE and IEC due to full Makrolon insulation " Multi

-layer 24K gold (nickel free)

» Maximum constant current 70 A

" Twist-proof mounting

" Puzzle plate system

Topline pole terminal.

Gold with full Makrolon insulation, complies with CE and IEC standards.

Topline product for the highest requirements in terms of signal transmission, mechanical stability and design.

The excellent mechanical properties, the solid design and the two-piece clamping nut with rotating pressure piece guarantee a high contact pressure and thus a constantly low transition resistance, a precondition for effects on sound quality. be absolutely minimal. The elegant design of the pole terminal is further enhanced by the shiny gold-plated surface that reliably prevents corrosion. CI and IEC compliance is achieved by Makrolon's complete and transparent isolation of all live parts.

outside connection.

>> 4mm banana plug.

A 4mm socket can be attached to the front of the clamping nut.

>> Crimped wire tips and ends (up to 6mm²/9AWG).

You can use the patented WBT clamping nut system to make high pressure spade and crimp cable connections. The cross-milled surface on the underside of the pressure piece creates a secure, permanent connection with extremely low transition resistance. It also prevents splitting of cable strands if exposed cable ends are used.

Internal connection.

Cables with a cross section of up to 10 mm² (7 AWG) can be used indoors.

WBT recommends the crimp connection method. You can use the supplied Torx screws and T.6 Torx key to perfectly fix the crimped cable ends.

However, the connections can also be soldered. If you decide to solder, WBT recommends the surface silver solder WBT-0800 (see also solder connection).

Mounting.

Mounting insulators are supplied to ensure not only insulation, but also kink-proof mounting and polarity identification. Lock nuts, double step washers with lugs and puzzle plates are also supplied. The puzzle plates can be hooked to each other. This ensures a precise terminal clearance of 19 or 30 mm, but above all absolute protection against torsion. Nuts on devices with high levels of intrinsic mechanical vibration, such as loudspeakers, should be additionally secured - using the WBT-9150 Serrated Lock Washer, for example. In case a fixed distance of 19 mm is required, the spacer WBT-9404 can be used and the WBT-0735 can be installed as a double terminal. Thanks to the locking slots in the spacer,

(The WBT-9404 is supplied with each end-user package, but generally must be ordered separately.)

Tip for original equipment manufacturers.

Due to current safety regulations, the 4mm banana holes of the WBT pole terminals must be closed with the WBT-0799 safety stick.

Conductor cross section (max): outside: 6 mm² (9 AWG)

inside: 10 mm² (7 AWG)

Connection technology: outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping

inside: crimping or soldering

Wall thickness: 0.1 - 6 mm

Identification: red/white

Installation: with spacer WBT-9404 also as double terminal

Recommended tool:

> Torx T.6 WBT-0488 key

(supplied with each final consumer pack)

> WBT-0481 torque screwdriver

for professional OEM assembly

> WBT-0403 crimping pliers,

see also WBT-0411 crimping set
