The clamping system, which operates similarly to the clamping mechanism of a drill, firmly secures the external plug against the RCA socket. The high clamping pressure not only guarantees a secure connection, but also minimises resistance during the transition. In addition, any variations in the size of the external plug are compensated for, ensuring an optimum fit.

The clamping collar is designed with two sections, allowing the front section to move freely when rotating the rear section, thus eliminating the risk of twisting the contact elements.

The centre pin is knurled and precisely configured, providing a firm but flexible contact to ensure a reliable and durable electrical connection with minimal resistance during transition.

The metal parts are made of a special copper alloy and coated with 24-carat gold to prevent oxidation, which could negatively impact contact quality.

The connector's internal insulation is made of heat-resistant Teflon*, which offers a distinct advantage when soldering jumper wires, especially in high temperature conditions such as those used in lead-free soldering. WBT recommends the use of its silver solder WBT-0800 (see also soldering section).

In combination with WBT's RCA sockets, the contacts are arranged in such a way that the outer conductor makes contact before the inner conductor, thus avoiding unwanted or damaging voltage peaks.

A Torx screw provides reliable protection against cable strain.

*Teflon is a registered trademark of Dupont.

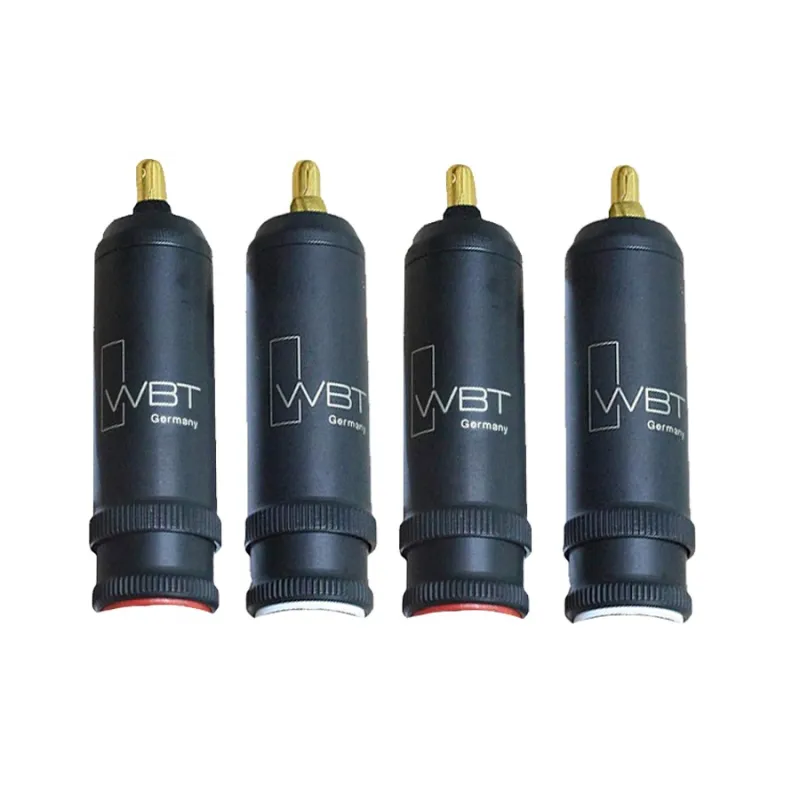

WBT-0114 RCA nextgen™ Cinch Connector (Internal Patent EP 0 460 145 B1) RCA / Cinch wideband connector for digital and analog connections.

Features:

- Single-element contact elements with low tolerance (Tol. < ± 0.02 mm).

- The Central Contact Unit consists of two moulded contact carriers, (4)+(5) and (8)+(9).

- The retaining unit (2) holds the central contact unit and also provides cable strain relief through the clamping screw (Torx1) T.6).

- The brass barrel (6) and (7) are screwed axially onto the threaded support, ensuring constant contact pressure. This allows the plug to be perfectly adapted to any type of RCA / Cinch connector.

- The electromagnetic shielding is effectively achieved by the clamping cylinder (6) and (7) and the brass plug (1).

Materials

- Signal conductors (8) and (6) made of pure copper.

- Dielectric plus contact (4) made of PA.

- Dielectric negative contact (9) made of LPC.

- Cover (1) and retaining screw (3) made of brass.

- PA retaining unit (2).

- Brass clamping barrel (6) and (7).

Surfaces

- Signal wires (5) and (8) plated with 0.3 µm fine pure gold.

- Holding barrel (6), (7) laser engraved, galvanic matt black finish.

- Plug (1) finished in galvanic matt black.

- Colour versions of the retaining unit (2) available according to EIA/CEA standards for multi-channel systems.

Operation (proven reliability after more than 103 connections/disconnections)

- Continuous current ID > 10 A.

- Transition resistance Rü < 0.1 mOhm (measured with WBT -0210).

- Contact resistance RBi, RBa < 0,1 mOhm (patch resistance, internal/external).

- Self-capacitance C ≈ 2,5 pF.

- Insulation resistance Ria, RaG > 10100hm (conductor/conductor, conductor/chassis).

- Characteristic impedance Z = 75 Ohms up to 400 MHz.

Dimensions

- Outside / inside diameter 13.6 / 9mm.

- Total length 51 mm.

Installation

- Soldered connections.

- Suitable for cables up to 9 mm diameter.
