JMF AUDIO PHS7.2
JMF AUDIO PHS7.2
JMF AUDIO PHS7.2
JMF AUDIO PHS7.2

JMF AUDIO PHS7.2

JMF AUDIO PHS7.2.

MC/MM stereo symmetrical stereo phono preamplifier

Colour
€24,400.00

Have you seen it cheaper? Contact us >

Delivery time in 4 weeks

Order to factory (30days)

Custom Installation Info

+

  Can we help you? Contact to our Expert Now
bloques info producto

Bank Transfer (3% OFF)

If you make the payment via bank transfer, you will receive an extra 3% discount on your order.

Individual Consultancy

Contact us without any obligation.

957460112
info@audiohum.com

Need to upgrade your equipment?

Would you be interested in trading in a device when purchasing this item?

Renovar equipo




JMF PHS7.2 phono

Of course, most of the historical recordings have been remastered and transferred to CD or in high resolution. However, we found that the digital versions failed to integrate the emotion and atmospheres in their entirety. In our opinion, the recordings from the 1950s to the 1970s, and most of the 1980s, were meant to be reproduced on vinyl. Only vinyl could translate all the music and transport the listener to an appropriate emotional state.

This was the initial motivation for the development of the JMF Audio phono preamplifier / lineariser.

We resumed the development of the new phono lineariser based on our last realisations dating back to 1997. The results quickly confirmed our expectations. The recordings from the analogue era were pleasant, warm and natural. Then, as we applied the experience of the last decades, with absolute and dedicated research development, the prototypes improved to the point where we were fascinated by the resulting natural and realistic performance ... even in today's recordings ...

Technical specifications:

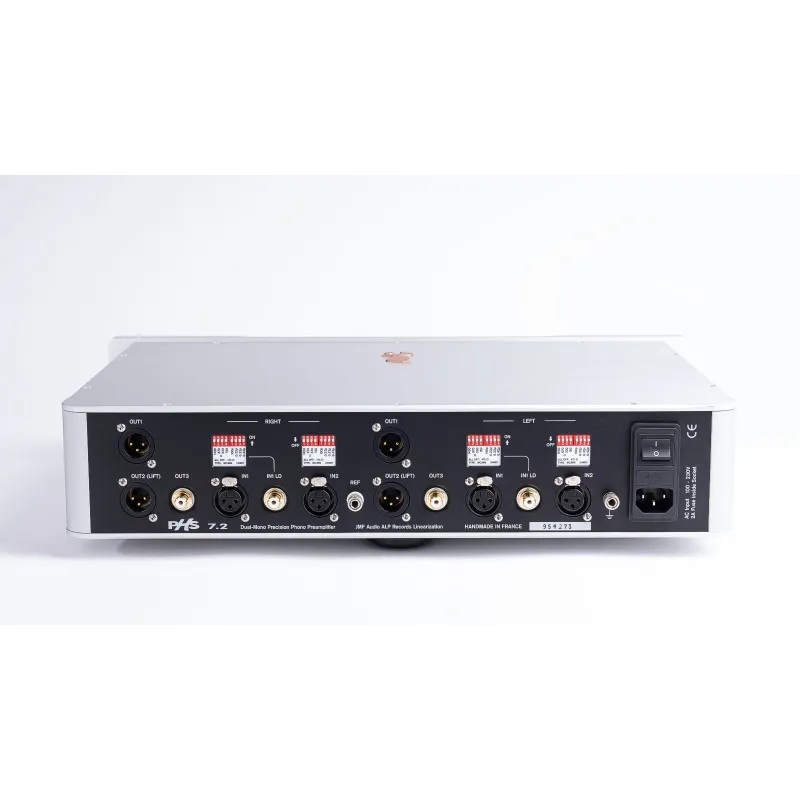

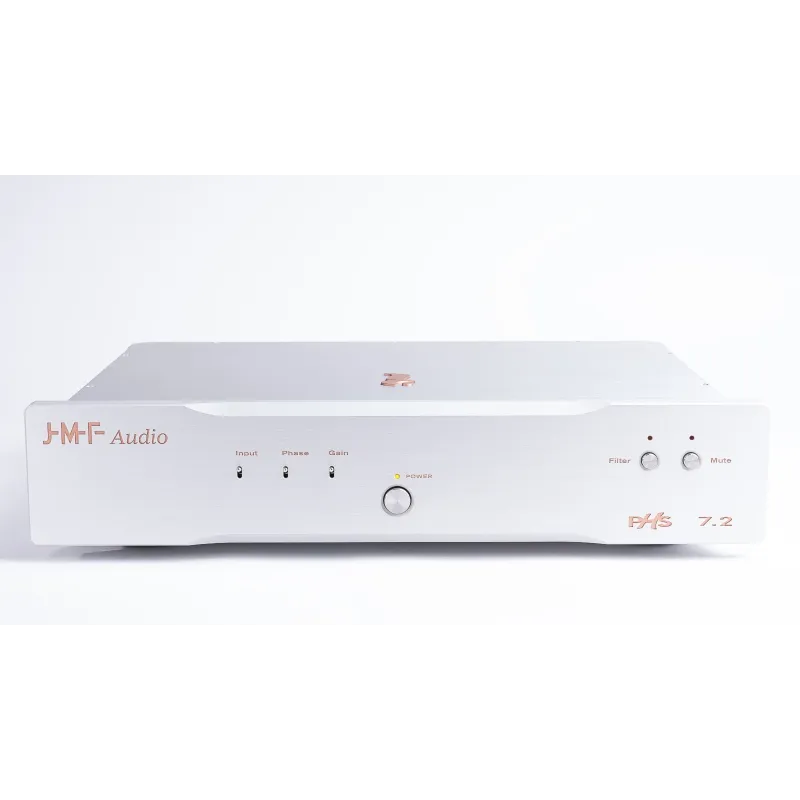

JMF Audio PHS72 Silver frontJMF Audio PHS72 Silver frontJMF Audio PHS72 Silver frontJMF Audio PHS72 Silver rearJMF Audio PHS72 Silver rear.

Type: Symmetrical MC/MM stereo phono preamplifier

Revision: Version "B

ALP deemphasis - Absolute phase (0 / 180°) - Subsonic filter (-12 dB/oct, 13 Hz)

Input impedance: 50 Ohms

Maximum gain: 75 dB (MC)

Gain range: 0, -10, -20 dB

Maximum input level: 200 mV (MM) - 20 mV (MC)

Maximum output level: 10 V (+22 dBu) / 10K Ohms load

RIAA +/- 0.05 dB (1K.. 20 KHz), +/- 0.1 dB (20.. 20 KHz)

SNR (signal / noise): >96 dB (10 V /MC)

Channel separation: >100 dB (10 V / 1 KHz)

THD: <0.002% (10 V / 1 KHz)

CMRR (Common Mode Rejection Factor): 100 dB

Voltage range: 90 V minimum - 250 V maximum. Power consumption: <20W

Unit weight: 12 kg net

Replaceable custom load settings (please consult)
