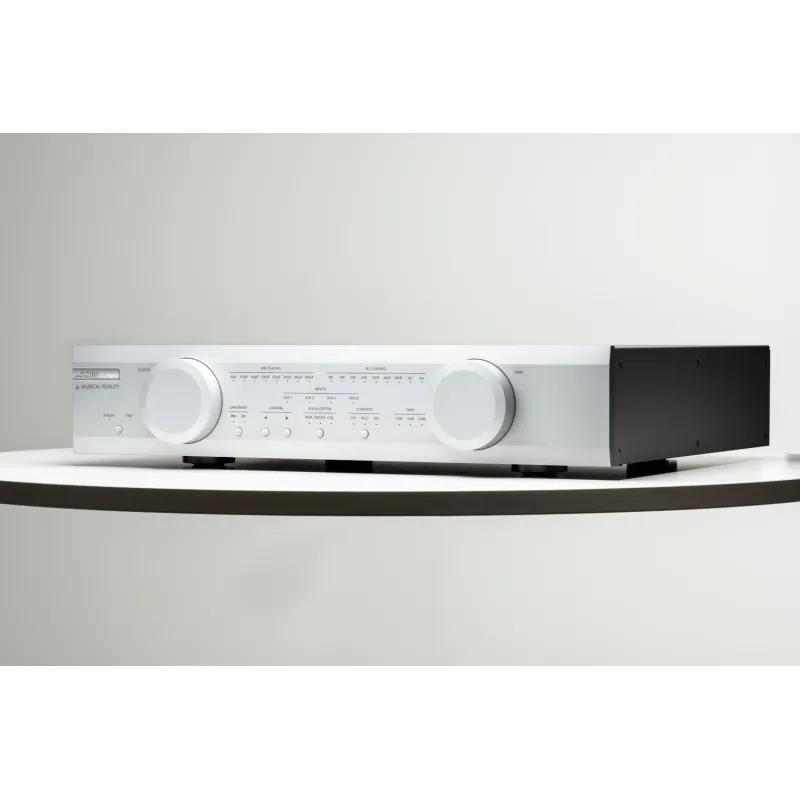

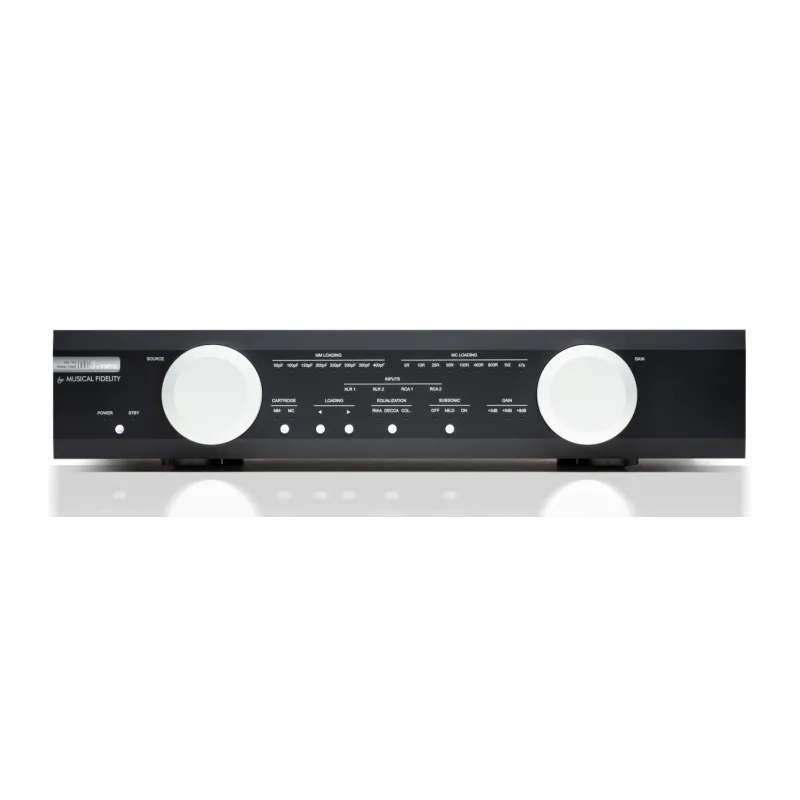

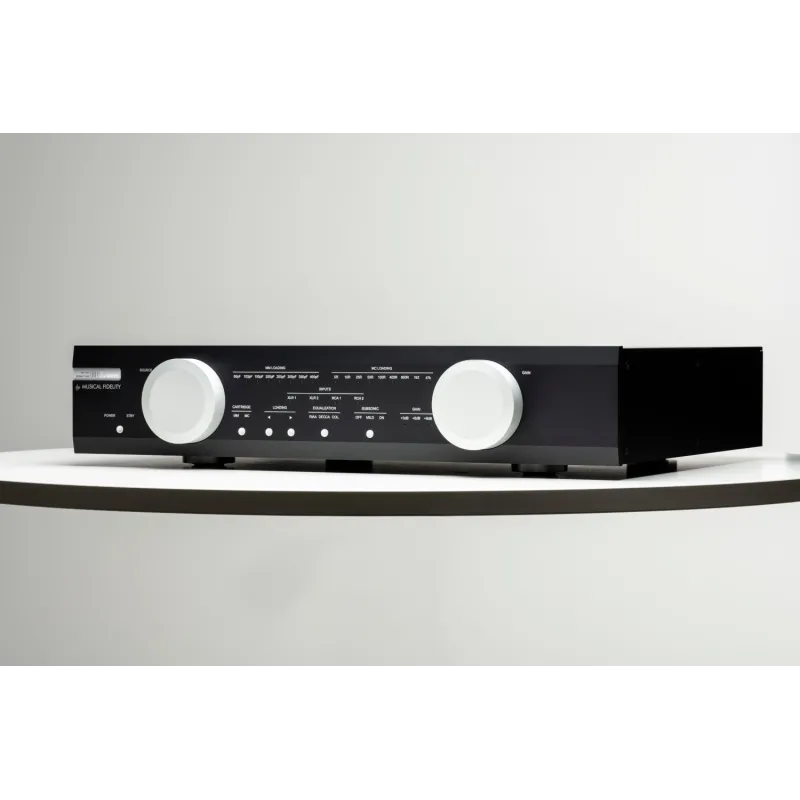

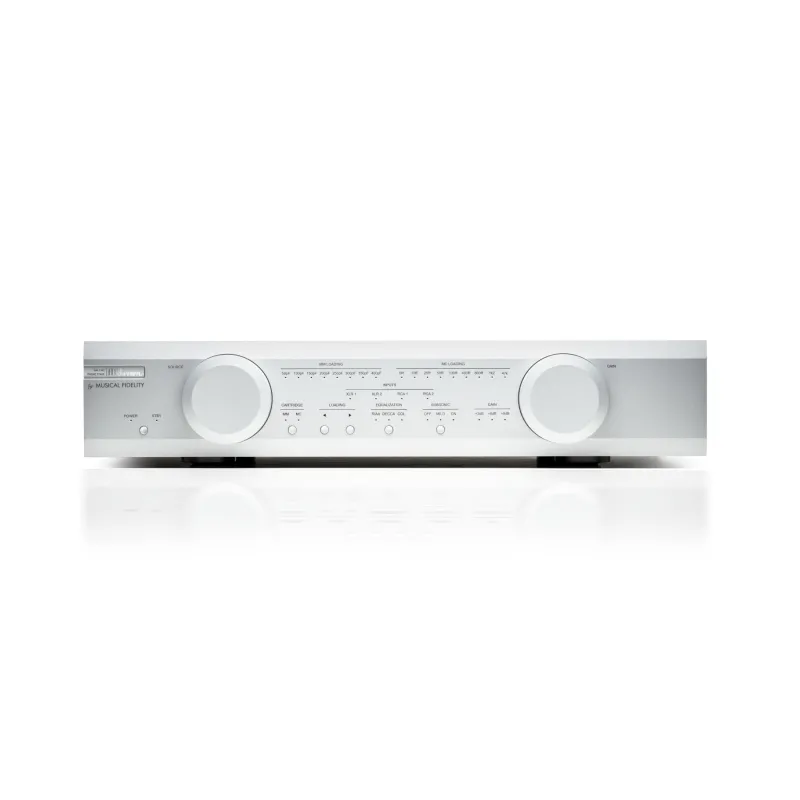

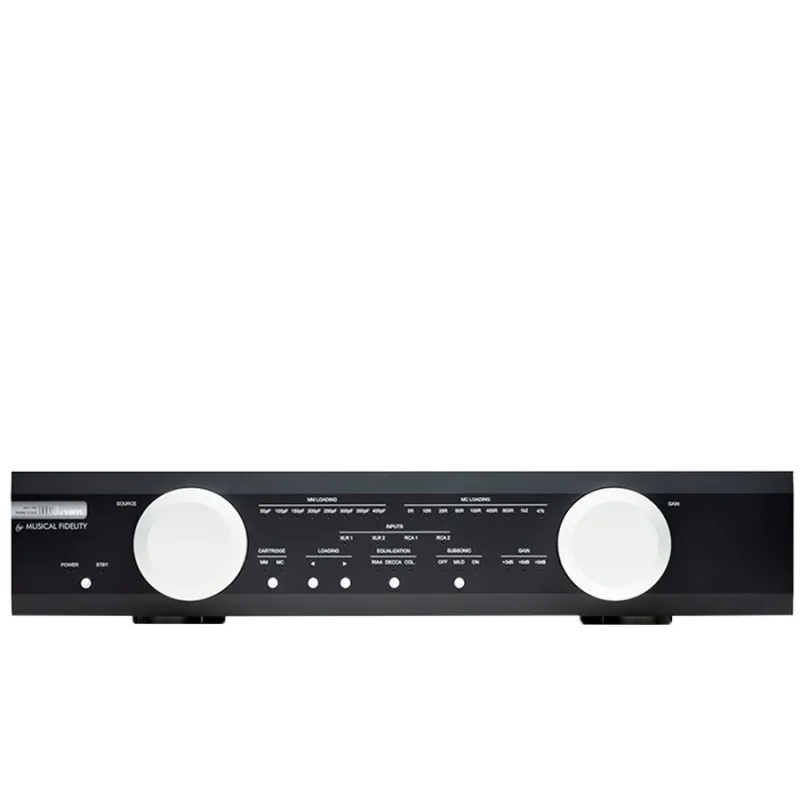

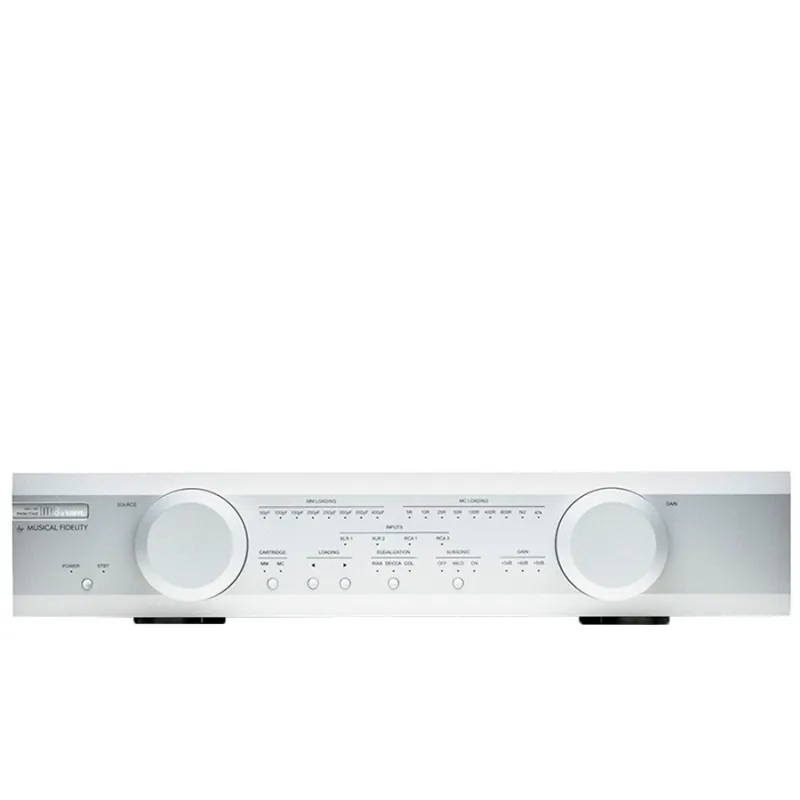

MUSICAL FIDELITY M8x-VINYL
Reference phono preamplifier.
Compatibility: MM/MC capsules
Equalization: RIAA, Decca, Columbia
Gain: 40-69 dB (8 settings)
Inputs/Outputs: Balanced and unbalanced XLR/RCA
Settings: MM: 47 kΩ, 50-400 pF; MC: 5-47 kΩ
SNR: >102 dB (MM), >90 dB (MC)
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?
Musical Fidelity M8x Vinyl: A High-End Phono Preamplifier Redefined
The M8x Vinyl marks a significant evolution over its predecessor, the M6x Vinyl, with refined electronics that enhance nearly every aspect of its performance. Like the M6x, it is built entirely with discrete components, but it now boasts a fully balanced architecture. This design provides each channel's positive and negative halves with their own amplification stage, increasing the component count and overall complexity of the system.
Enhanced Gain Section

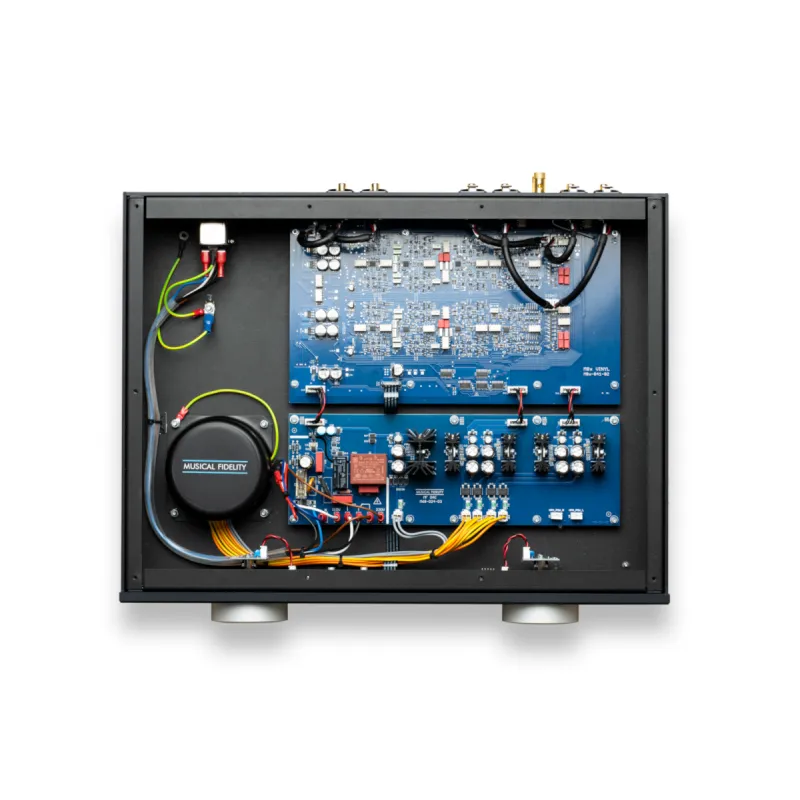

The gain section has been optimized with three amplification stages that deliver higher gain levels while reducing noise and distortion. Additionally, advanced circuitry has been incorporated to filter network signals and block unwanted DC currents. In the phono stage, the power supply PCB is three times larger than before, ensuring exceptionally clean power delivery to the circuits handling delicate audio signals.
“Super Silent” Transformer and EMI Shielding

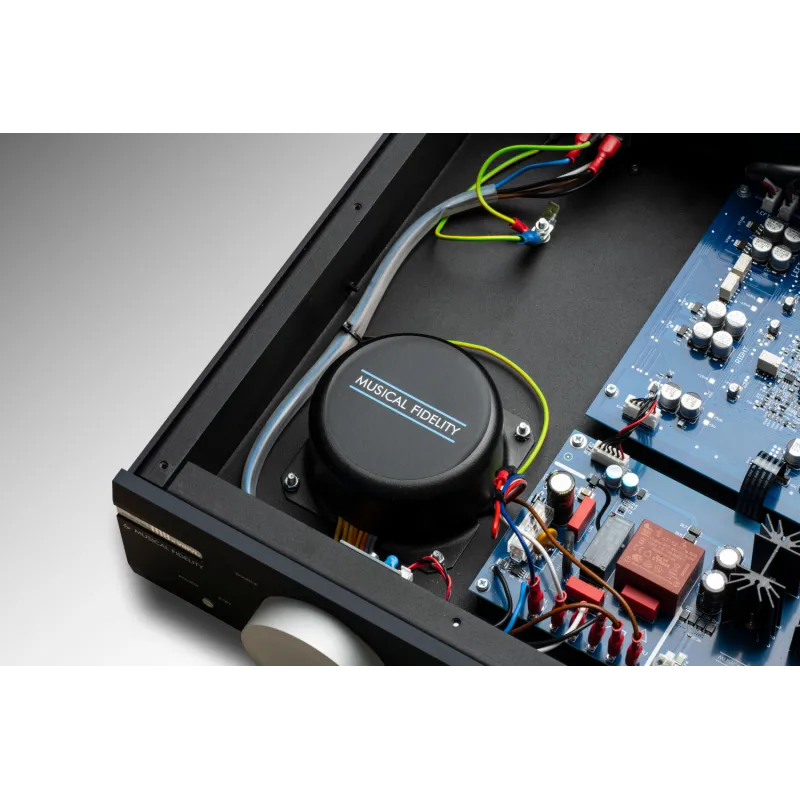

A key feature of the M8x Vinyl is Musical Fidelity’s “Super Silent” transformer, which is encapsulated to protect the phono stage from external electromagnetic interference.
Expanded EQ Curves and Features
The M8x Vinyl includes new Decca and Columbia EQ curves alongside the traditional RIAA, offering a dual passive EQ stage, a two-stage subsonic filter, additional inputs, and more versatile loading adjustments. This ensures optimal compatibility with a wide range of phono cartridges.
Robust and Elegant Design
With its sleek design and fully metal (aluminum) construction, the M8x Vinyl perfectly complements Musical Fidelity’s renowned M8 Series amplifiers. Its refined aesthetics and high-end features make it a truly high-performance phono preamplifier.
Technical Specifications
- Type: Reference phono preamplifier
- Compatibility: Supports both moving coil (MC) and moving magnet (MM) cartridges
- Components: Built with discrete audiophile-grade components
- Topology: Fully balanced circuit design
- Gain Stages: Three amplification stages for optimized gain, noise, and distortion
- Network Filtering: Advanced circuitry for network signal filtering and DC blocking
- EQ Curves: RIAA, Decca, and Columbia

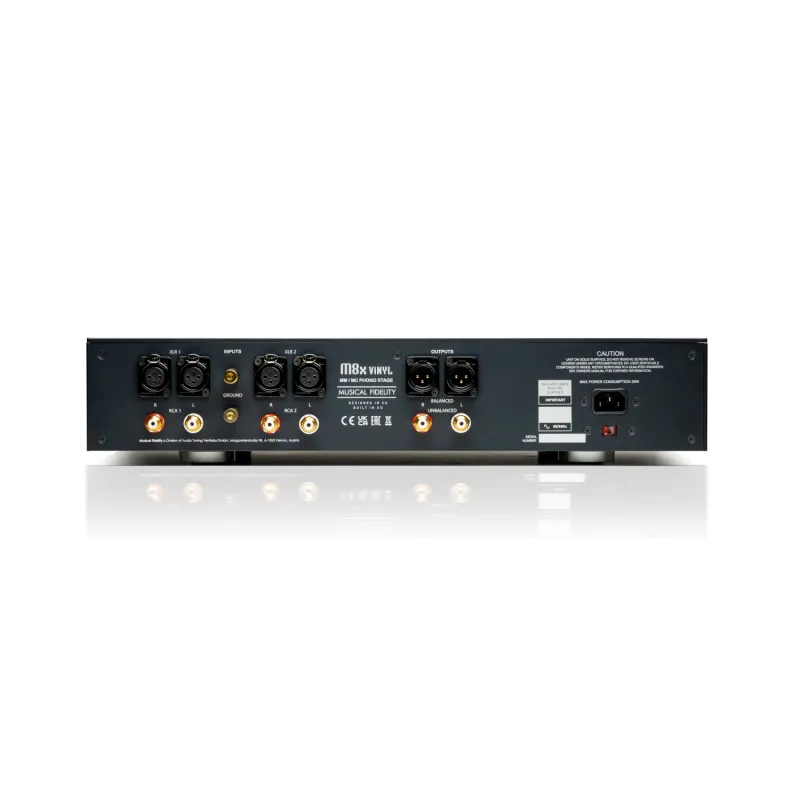

- Connections: Balanced (XLR) and unbalanced (RCA) analog inputs and outputs
Performance:
- Frequency Response: 20-20,000 Hz, ±0.2 dB (MM and MC)
- Gain Settings (XLR): 40, 43, 46, 49, 60, 63, 66, 69 dB
- Input Sensitivity/Impedance (MM): 5 mV/47 kΩ
- Adjustable MM Capacitance: 50 to 400 pF
- Adjustable MC Impedance: 5 Ω to 47 kΩ
- Signal-to-Noise Ratio: >102 dB (MM), >90 dB (MC)
Build and Aesthetics:
- Chassis: Fully metal aluminum construction for robustness and shielding
- Finishes: Available in black or silver
- Dimensions: 483 x 102 x 381 mm (W x H x D)
- Weight: 10.6 kg
Made in the European Union, the M8x Vinyl reaffirms its status as a truly high-end phono preamplifier, blending advanced technology with timeless design to meet the needs of the most discerning audiophiles.
