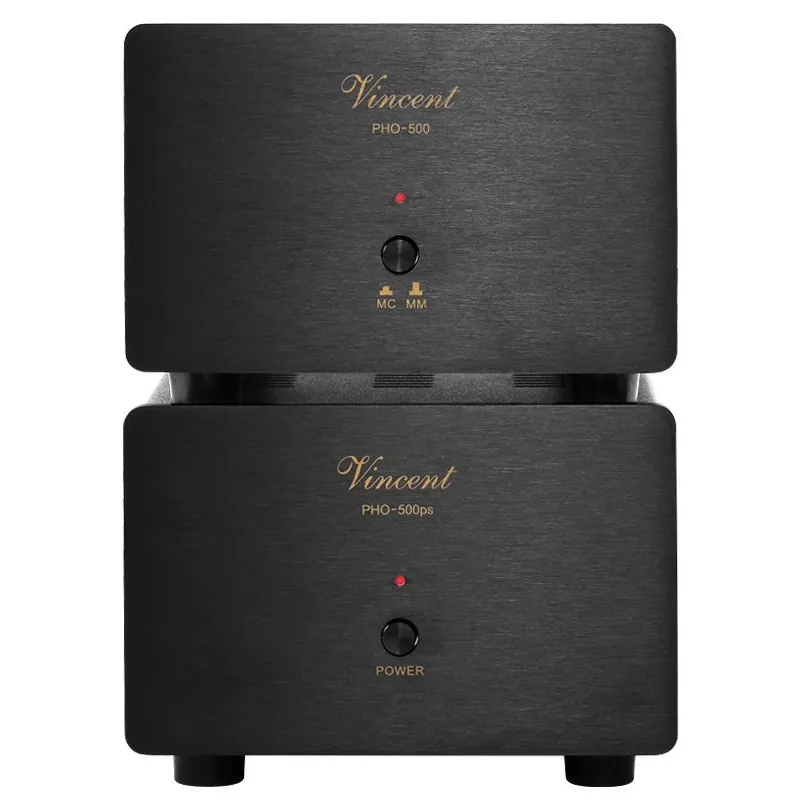

VINCENT AUDIO PHO-500. MM/MC phono preamplifier with separate power supply
Unsophisticated, low-noise reproduction is the "job" of a good phono preamplifier. With the PHO-500 we did it.
The reason for this is in the first step a complex power supply, which is built into an external casing, and in the second step the carefully chosen components.
In addition, you can make individual settings using the DIP switches on the PHO-500.
Frequency Response: 10Hz – 20kHz ±0.5dB, 10Hz – 50kHz ±2dB
THD: < 0.05% (20Hz - 20kHz)
Input Sensitivity: MM: 58mV, MC 6.8mV
Signal-to-Noise: MM: > 83dB, MC: > 70dB
Input Impedance: MM: 47 KOhm, MC: 100 Ohm - 1000
Ohm (adjustbale)
Input Capacity: MM: 15 pF - 350 pF (adjustable), MC: 15 pF
Output Impedance: 250 Ohm

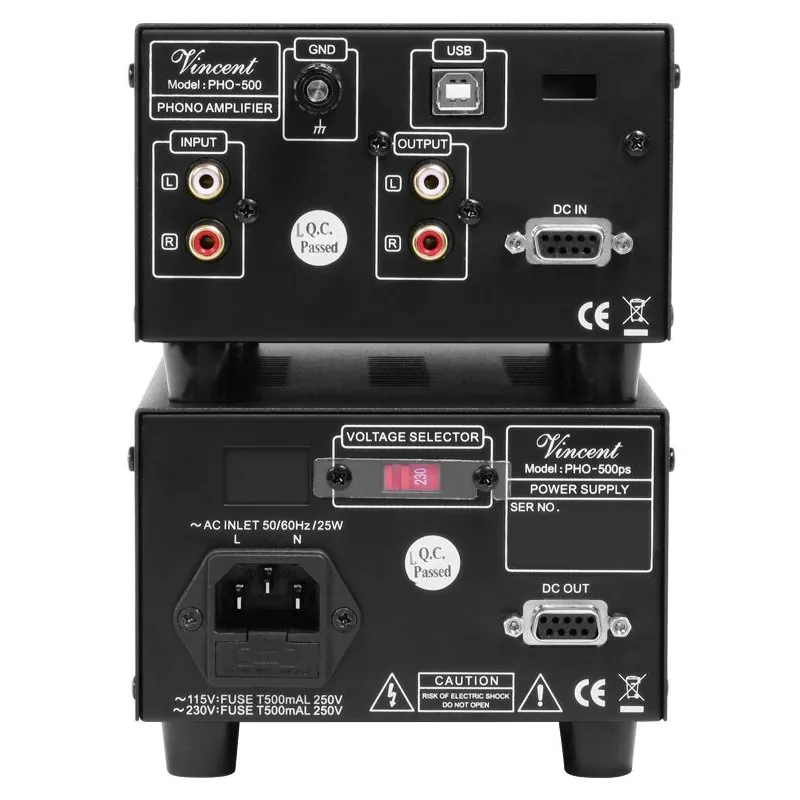

Inputs: PHO-500 1 x Stereo RCA
Output Impedance: 250 Ohm
Inputs: PHO-500 1 x Stereo RCA
Outputs: PHO-500 1 x Stereo RCA, USB
Max. Power Consumption: 10 Watt
Weight: 1.4kg (power supply), 1kg (PHO-500)

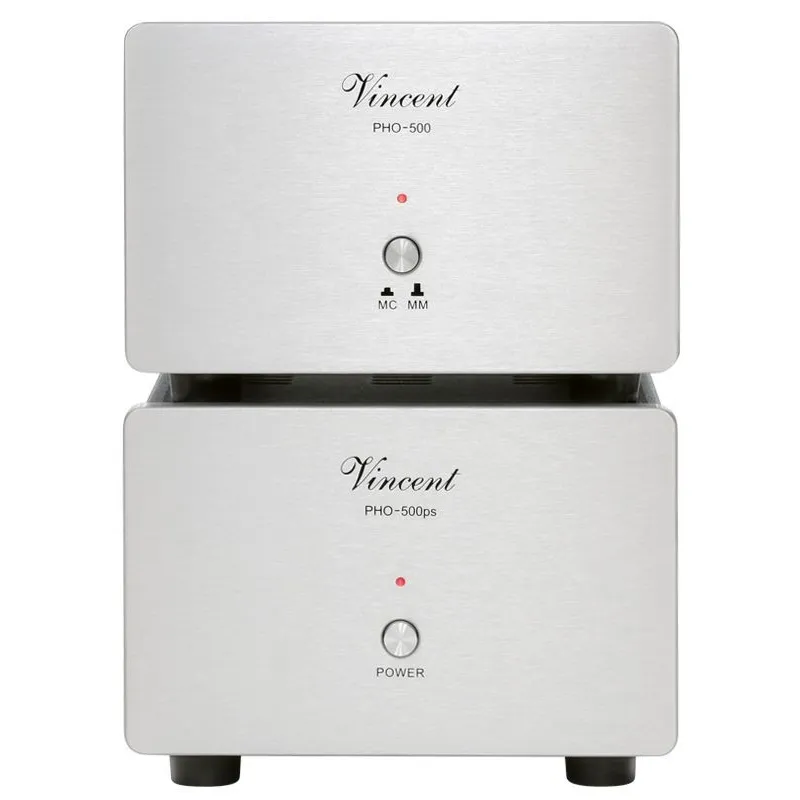

Colour: Black or Silver
Dimensions (W x H x D): 130 x 95 x 205 mm (for power supply and PHO-500 each)
