Designed for elegance.

A 360 DEGREE IMPROVEMENT.

Many don't realize the intense relationship between performance and design here at REL. Performance is everything to us and that's why it drives physical design reviews. Our engineers, recognizing the need for higher acoustic volume to achieve the goals of greater fluidity and power, turn to the designer working on dimensions to trick the eye into seeing a smaller, more compact footprint even as cabinet volume increases. It uses smoothly rounded corner radii that allow the eye to flow and see less visual mass. The result is both modern and familiar, without unnecessary frills.

Faster and deeper.

SWIFT.

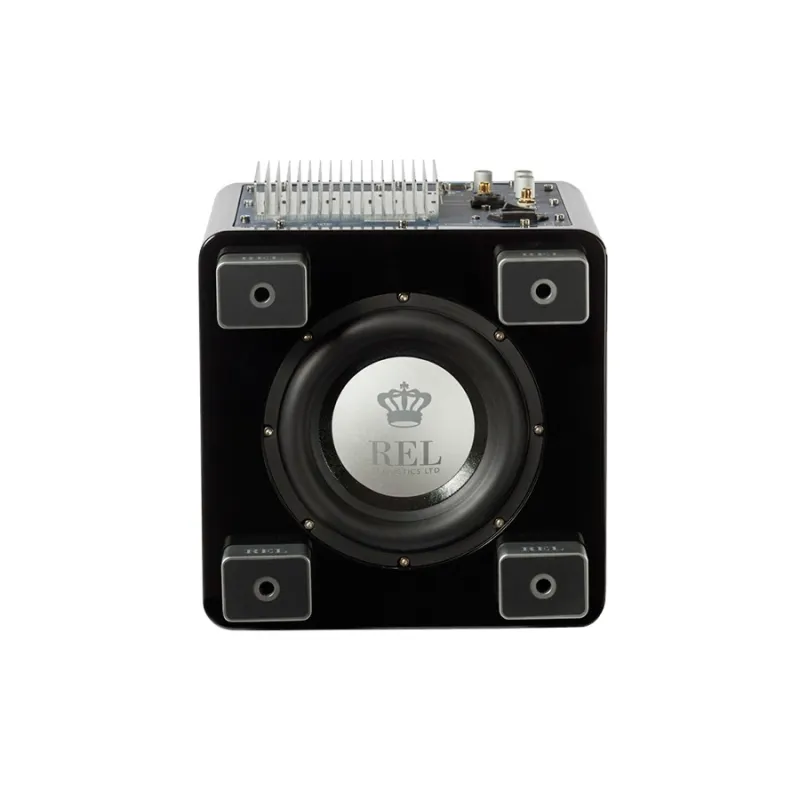

The T / 5x borrows a single 8 "(200mm) bass driver from its bigger brother, the T / 7x. Developed with a lightweight foil and aluminum composite, this cone captures surprising detail while delivering enough power to go deeper than you might expect for its size. On T / 5x, its launch has been increased - the ability to play louder. Internally, the suspension has received numerous improvements, as if it were to transform the handling From a family saloon car to a real sports car, more power, more finesse.

Amplified power.

THE RELIABILITY OF THE BRAINS AND MUSCLES OF THE RELAY.

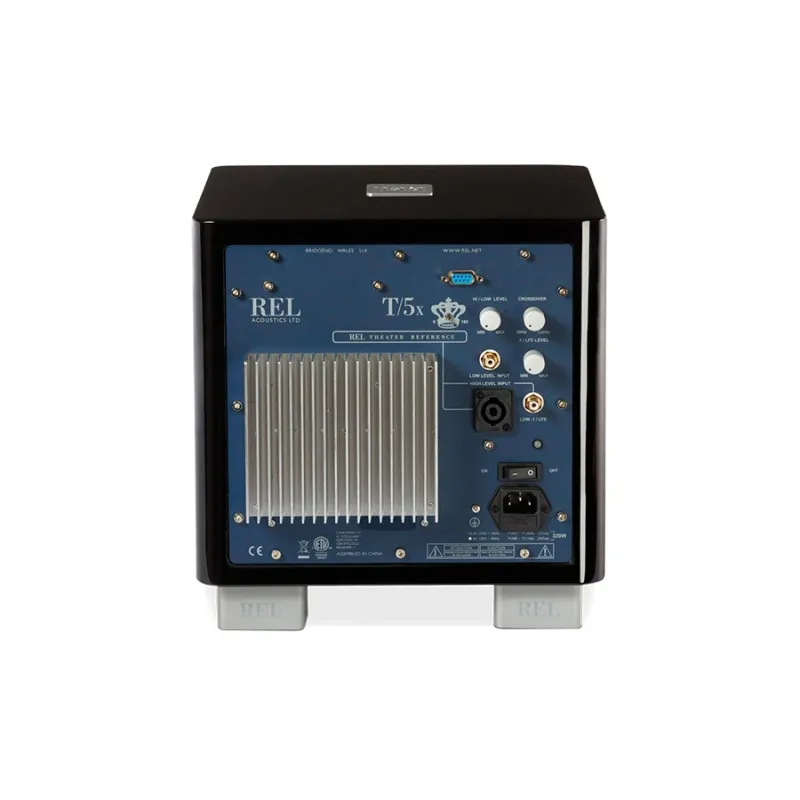

The T / 5x is based on the reliable and expensive 125W Class A / B amplifiers of its predecessor. Internally, key elements for improving transparency and speed have been updated at no cost to REL's legendary reliability. Separate inputs for the high-level and low-level inputs (necessary for the growing number of powered active loudspeakers emerging on the market) allow for a seamless and natural transition from loudspeaker to subwoofer. And in the theater, a separate dedicated .1 / LFE input for theater performance allows automatic transition between music in high-end 2-channel applications and home theater without changing a single setting. Magic? No, superior engineering.

The standby switch is only included on 220V units.

Zero wireless compression.

UNLIMITED POSSIBILITIES.

At REL, we have developed an excellent reputation for building the fastest, best-sounding wireless systems available in the industry. REL never relies on digital compression as it results in thin, lifeless sound. Instead, we've perfected an Arrow ™ wireless system (optional); so fast and dynamic that we feel comfortable encouraging the use of wireless technology on one channel of a pair of RELs while the other channel can be wired.

Specifications:

TYPE.

Closed box, descending driver.

ACTIVE DRIVER SIZE AND MATERIAL.

8 in. FibreAlloy ™, 200mm long reach, inverted alloy dust cap, steel chassis.

SIZE AND MATERIAL OF THE PASSIVE RADIATOR.

NOT AVAILABLE.

LOW FREQUENCY EXTENSION.

-6dB at 32 Hz.

INPUT CONNECTORS.

Neutrik Speakon High Level, Single RCA Low Level, RCA LFE.

OUTPUT CONNECTORS.

N / A.

OUTPUT POWER.

125 watts (RMS).

TYPE OF AMPLIFIER.

Class A / B.

WIRELESS CAPACITY.

Arrow (optional), zero compression, large-scale integrated single chip.

Protection system.

FULLY ELECTRONIC ASSEMBLY SAFE.

Yes.

DC FAIL

Yes.

OUTPUT SHORT CIRCUIT.

Yes.

NETWORK INPUT VOLTAGE.

220-240 volts, 110-120 volts for certain markets.

FUSES.

1.6 amp operation with 230 volt delay, 3.15 amp operation with 115 volt delay.

Dimensions.

WIDTH X HEIGHT X DEPTH.

11.8 x 12 x 12.3 inches, (300 x 307 x 313 mm).

NET WEIGHT.

31.5 lbs. (14.3 kg).

FINISH.

High gloss black, high gloss white, 5 layers.

Supplied accessories.

POWER CORD.

Yes.

NEUTRIK SPEAKON.

Yes (10 nominal meters).

INTERCONNECTION.

USER MANUAL.

Yes.
