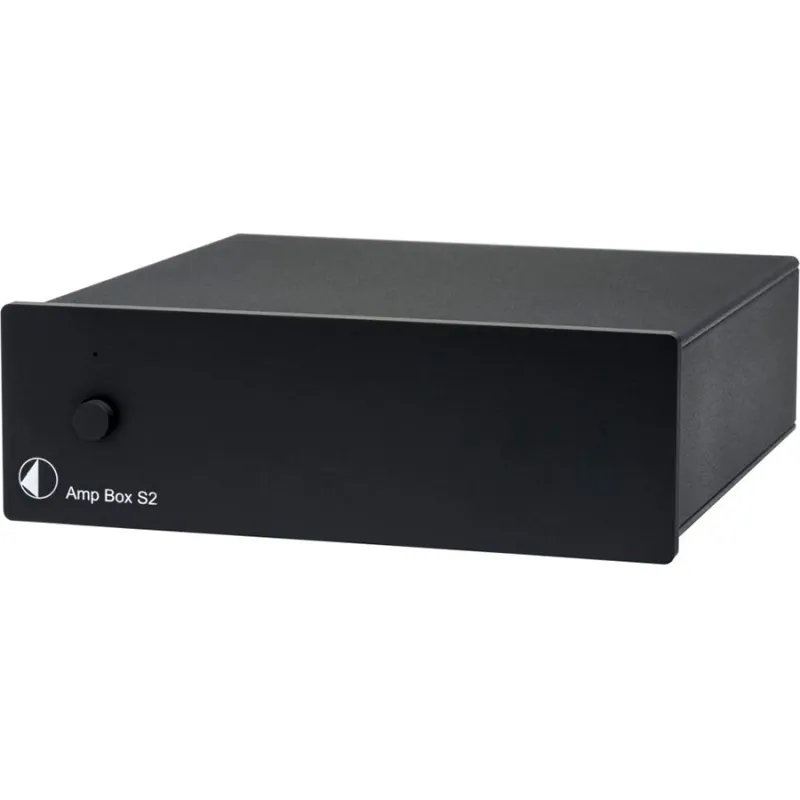

The new Amp Box S2 offers a stereo RCA input and delivers powerful, immersive sound from each speaker. The sound characteristics of this power amp were those of tube power amps, with its lush, rich, musical sound with a touch of analog warmth. The Amp Box S2 is ultra-compact and allows for easy placement in every listening room, and can be turned on and off remotely via the trigger connectors. For Bi- or Tri-amplification the trigger outputs can be used to connect more power amplifiers. The Amp Box S2 comes in a luxurious design with a stable housing made of aluminium/metal, which effectively protects against interference and vibration.
Characteristic:
Ultra compact and audiophile.
advanced amplifier module.
More power and higher performance.

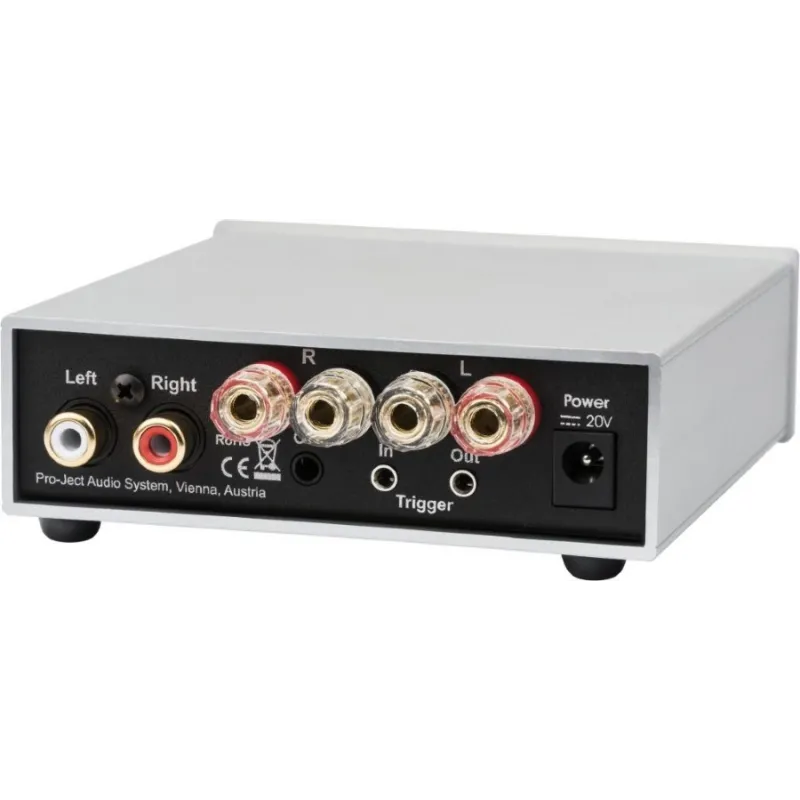

Stereo input (RCA).
Isolated speaker plugs.
Suitable for banana/spade/pin/bare wire.
Trigger input.
Trigger output for more Amp Box S2.
The metal casing protects against vibrations and interference.
On/off at the front.

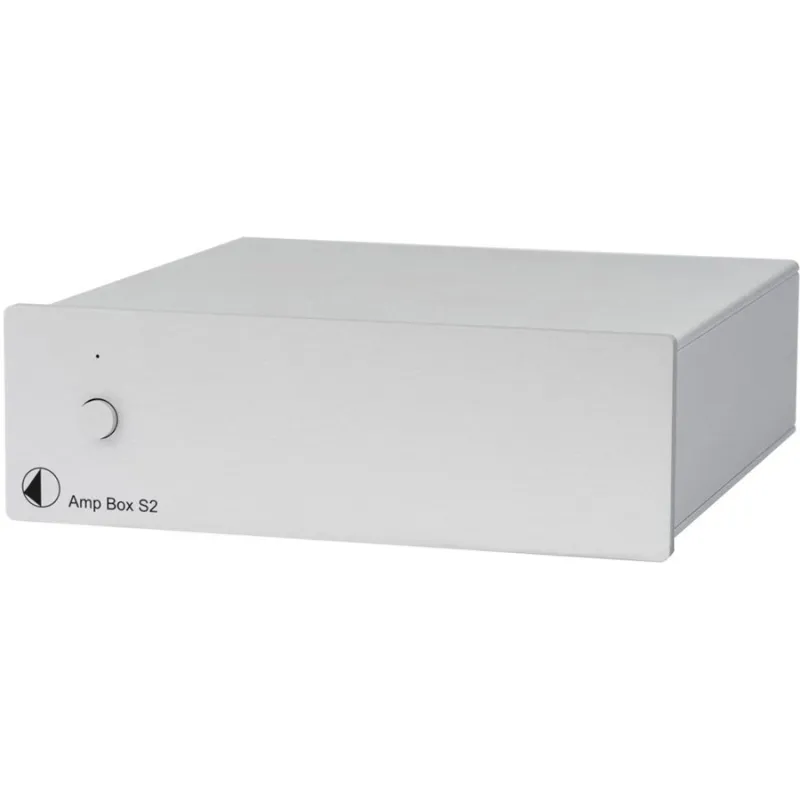

Available in silver or black.
Technical specifications:
Output Power 2 x 23W / 35W at 8 ohms/4 ohms (both channels driven).
Frequency Response 5Hz - 20kHz (+0.2dB, -0.2dB).
Channel separation >-55dB at 20kHz.
Noisy floor >-100dBA.
THD <0.18% for 10W.
Gain 31dB.
Pre in 1 pair of RCA/phono jacks.
Bypass Output Jack socket 3.5mm stereo.
Input sensitivity 330 mV.
Input impedance 20 kohms.
Speaker Connectors 4mm banana plugs, spade connectors, or bare wire.
Trigger 12V DC switching voltage, 2 coaxial poles, 2.5mm coaxial jack.
External power supply: 20V/3A DC (peak 7A DC), suitable for the power grid of your country.
Power consumption 3A DC, <1W in standby.
Dimensions W x H x D with plinths 103 x 37 x 136 mm.
Weight 385 g without power.
