Thorens MM 008. Phono stage.

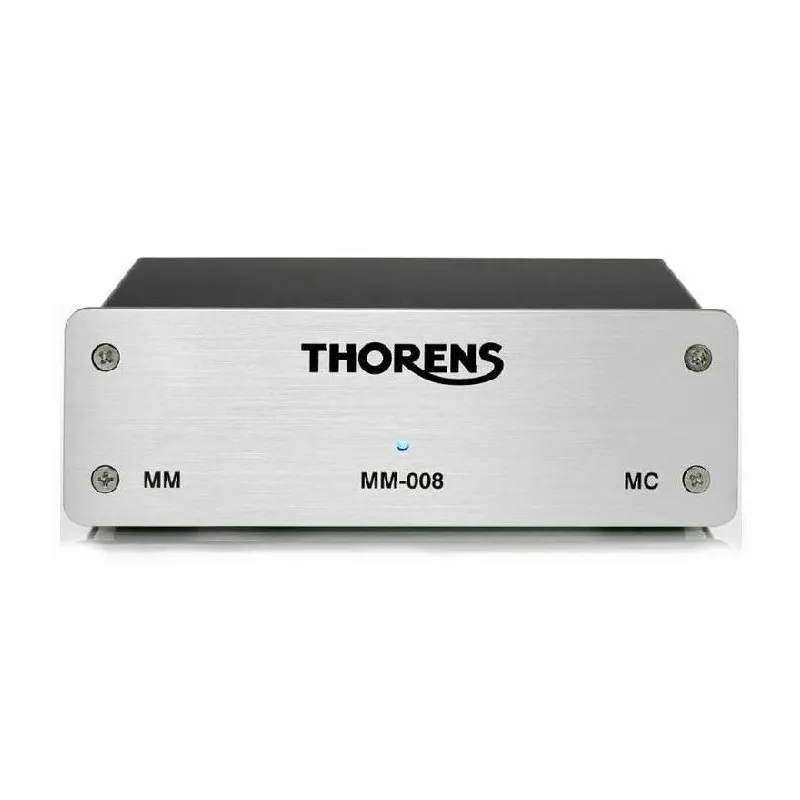

Preamplifier for PHONO with mobile magnet needle and mobile coil. For the amplification of the mobile coil (MC) capsule, the resistors recommended by the turntable manufacturer can be precisely adjusted, with supplied connectors, thus optimizing the performance and reproduction quality of our vinyl. Its installation is very simple, the front finish is a brushed aluminum plate that gives a quality appearance.
Specification:
- Previous for movable magnet needle (MM) and mobile coil (MC)
- Selector control MM - MC
- Amplification at 1kHz - 40dB (MM) - 60dB (MC)
- Input impedance MM 47 kOhms + fixed 220pF
- Input impedance MC 47 kOhm + 1 nF (adjustable with resistance connectors
- Frequency range -3 dB 10 Hz - 50 kHz
- Linear frequency range 20Hz - 20kHz +/- 0.3 dB
- Precision RIAA +/- 0.3 dB max.
- Signal-to-noise ratio> 86 dB (MM) -> 72 dB (MC)

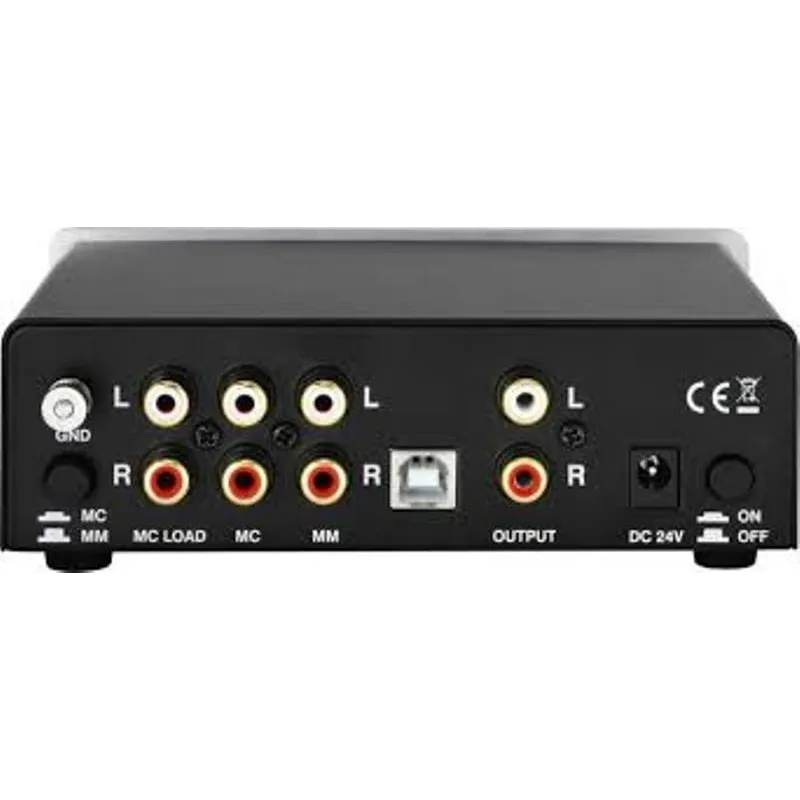

- Stereo x 3 RCA line input
- Stereo RCA line output
- Weight 500g.
- Measurements High 50mm x Width 150mm x Depth 117mm
