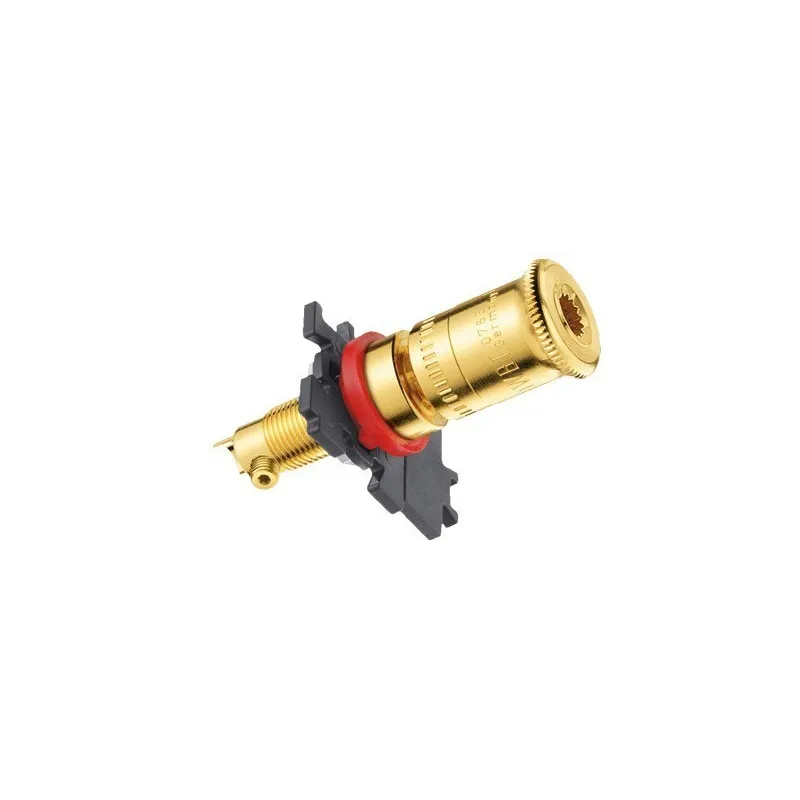

WBT WBT-0763. Unipolar pole terminal. CLASSIC series. Crimp or solder. (4 units)

" Extremely high contact pressure for blades due to fine thread and cross surface.

» Two-piece clamping nut for maximum connection strength.

" Weld or crimp connection.

" 24 karat multi-layer gold plating.

» 70A maximum constant current . "

Twist-tight mounting.

"Puzzle plate system.

Midline pole terminal.

Copper alloy, gold plated.

The clamping nut is designed to provide a perfect grip. The gold surface prevents any kind of corrosion.

outside connection.

>> 4mm banana plug.

A 4mm socket can be attached to the front of the clamping nut.

>> Crimped wire tips and ends (up to 6mm²/9AWG).

You can use the patented WBT clamping nut system to make high pressure spade and crimp cable connections. The cross-milled surface on the underside of the pressure piece creates a secure, permanent connection with extremely low transition resistance. It also prevents splitting of cable strands if exposed cable ends are used.

Internal connection.

Cables with a cross section of up to 10 mm² (7 AWG) can be used indoors. Connections can be soldered or crimped.

For solder connections, WBT recommends WBT-0800 silver solder, which will not mar the surface.

For crimped connections, an additional Torx T.6 screw is required.

Mounting.

Mounting insulators are supplied to ensure not only insulation, but also kink-proof mounting and polarity identification. Lock nuts, double step washers with lugs and puzzle plates are also supplied. The puzzle plates can be hooked to each other. This ensures a precise terminal clearance of 19 or 30 mm, but above all absolute protection against torsion. Nuts on devices with high levels of intrinsic mechanical vibration, such as loudspeakers, should be additionally secured - using the WBT-9150 Serrated Lock Washer, for example. In case a fixed distance of 19 mm is required, the spacer WBT-9404 can be used and the WBT-0763 can be installed as a double terminal. Thanks to the locking slots in the spacer,

(The WBT-9404 is supplied with each end-user package, but generally must be ordered separately.)

Tip for original equipment manufacturers.

Due to current safety regulations, the 4mm banana holes of the WBT pole terminals must be closed with the WBT-0799 safety stick.

Conductor cross section (max): outer: 6 mm² (9 AWG).

inside: 10mm² (7AWG).

Connection technology: external: 4 mm banana plug, spade (6 - 8 mm spade), crimped.

inside: crimp (Torx T.6 screw required) or solder.

Wall thickness: 0.1 - 10mm.

Identification: red, white or black.

Installation: with spacer WBT-9404 also as double terminal.

Recommended tool:

> Torx key T.6 WBT-0488 .

> WBT-0481 torque screwdriver for professional OEM assembly.

> WBT-0403 crimping pliers, see also WBT-0411 crimping set.
