KONDO AUDIO Note Melius

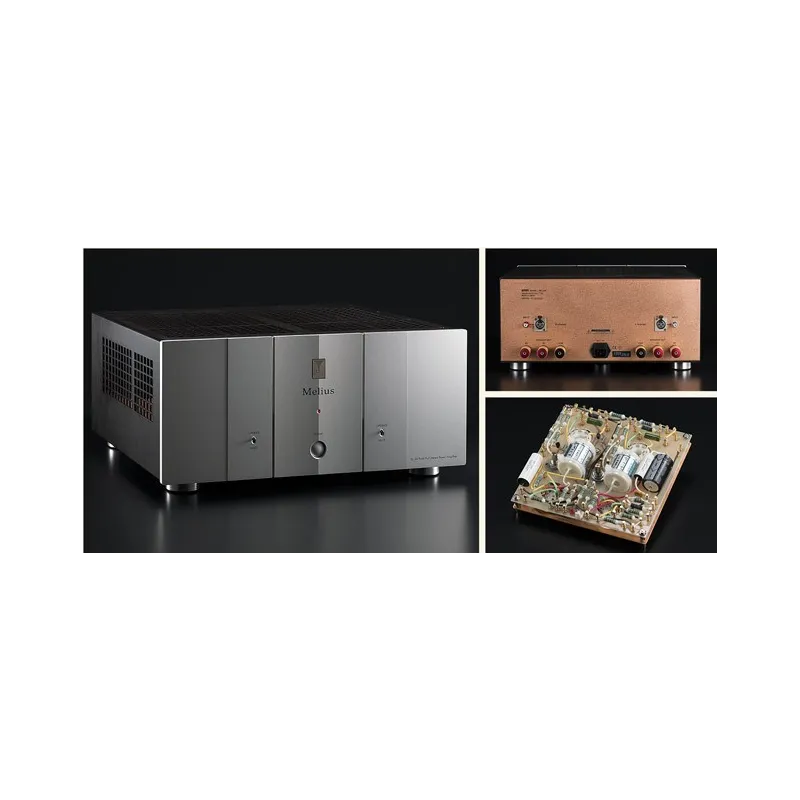

KONDO AUDIO Note Melius. High-end power amplifier
bloques info producto
Bank Transfer (3% OFF)
If you make the payment via bank transfer, you will receive an extra 3% discount on your order.
Need to upgrade your equipment?
Would you be interested in trading in a device when purchasing this item?
KONDO AUDIO Note Melius. Power amplifier.
In order to provide delicate details and high dynamic for wide variety of music, this unit is designed with great deliberation using famous Pentode EL34 in a new designed push-pull circuitry. Values of each part and current are set precisely so that tube power amplifier could drive modern speakers well.
Push-pull circuit further refined from Overture.
The first stage and driver stage are direct coupled, and a new generation pure silver foil capacitors with vibration suppression are used for coupling with the output stage. Moreover, the low impedance design of the whole circuit is aimed the direct sound performance. The output stage continue to employ CCB (constant current bias circuit). The music signal is prevented from flowing into the bias adjustment VR, enabling pure signal transmission.
Optimized wiring.

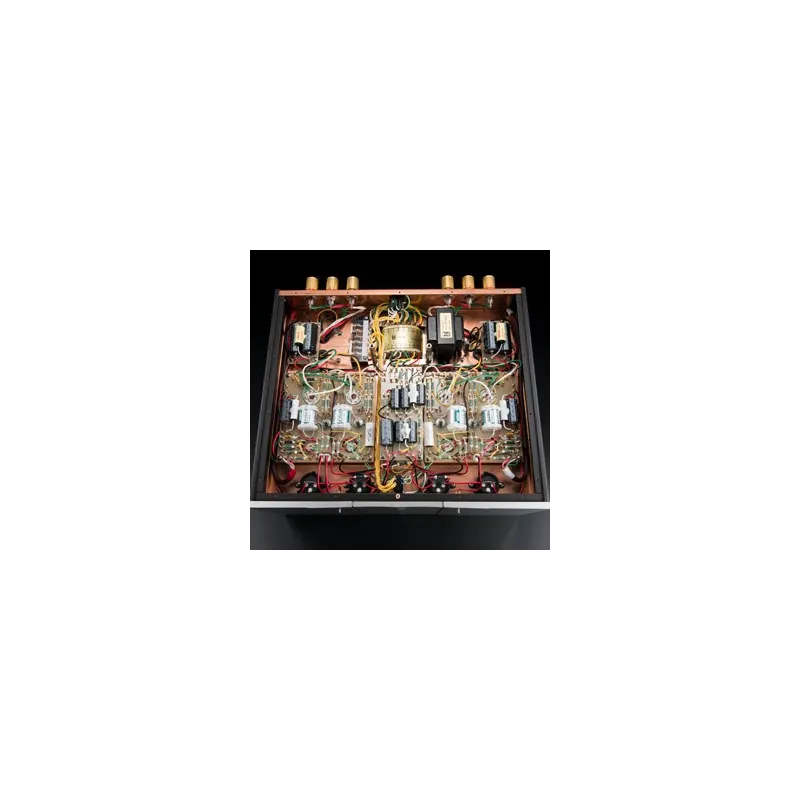

Internal wirings are skillfully arranged so that shortest paths and best performance are obtained. SSW (Silk Silver Wire) are used for internal wirings. Ls-41 are used for paths in which shielding are needed.
Super High Quality Parts.

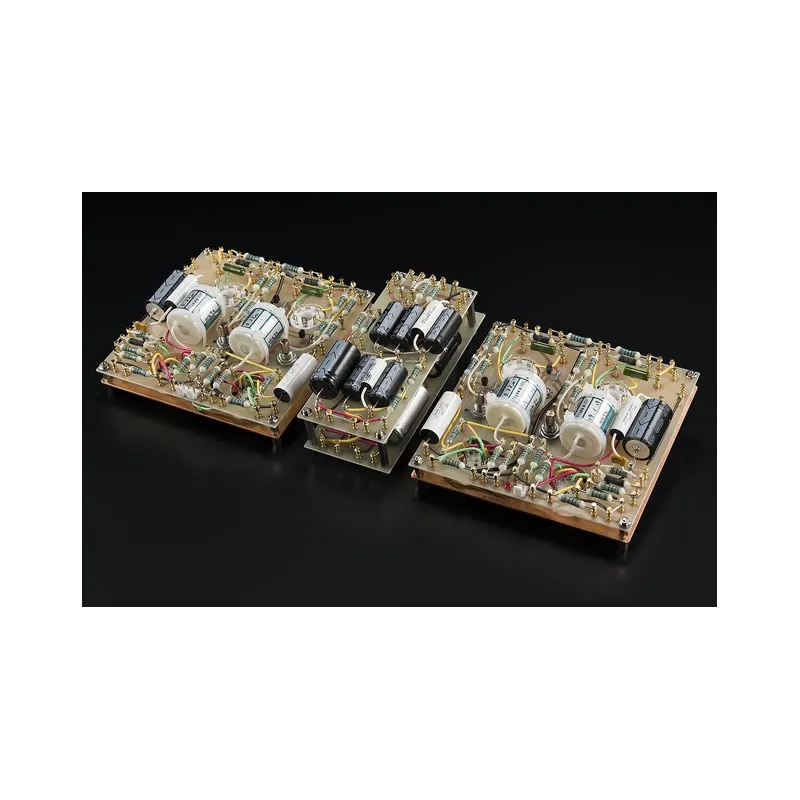

All parts were carefully chosen after massive hours of listening tests. Silver foil capacitors, silver lead resistors, SSW silk silver wires, Ls-41 shield cable, Audio Note custom made output transformers and power transformer. All CR part are carefully selected and arranged.
Specifications:
EL34 Push-Pull stereo power amplifier
MELIUS
Rated Power: 32W + 32W @1kHz, 1% THD
Frequency Response: 6Hz ～ 70kHz (+0dB -3dB @ 1W)
Input / Impedance: 2pairs (RCA, XLR, unbalanced) / 70kΩ
Output: 4Ω, 8Ω
Noise: lower than 0.5mV
Vacuum tube: EL34 x4, 12BH7 x2, 6072 x2
Power consumption: 180W
Dimension: 438mm(W) 204mm(H) 369mm(D)
Weight: 26kg
