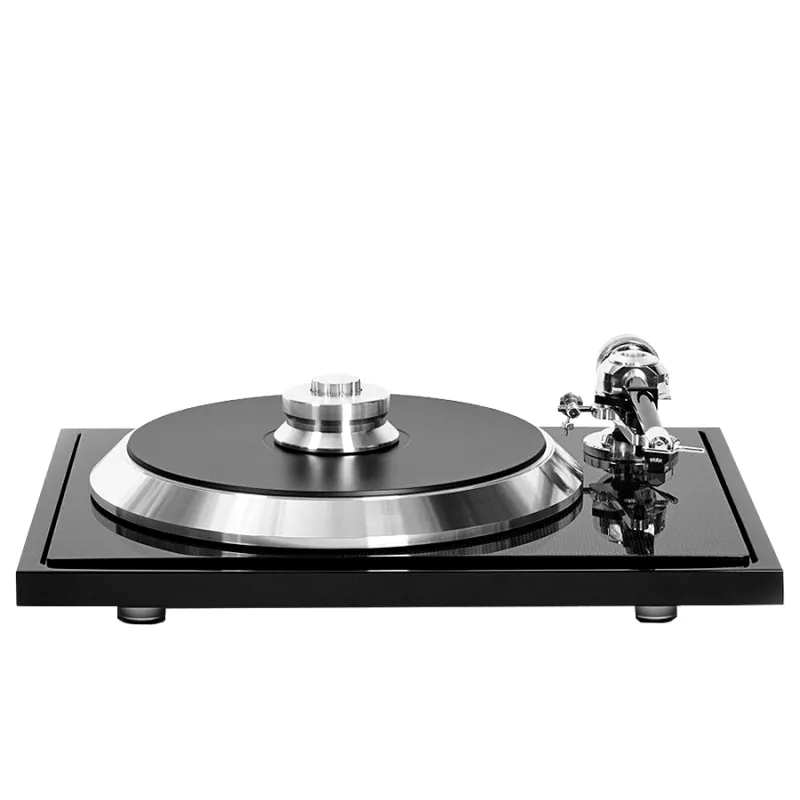

As a direct result of the commercial success of the stylish E-Flat turntable, the C-Sharp is an attractive and breakthrough turntable with absolute reference that further elevates the bar in terms of ultra-thin profile, aesthetic elegance and technological sophistication thanks to the use of new materials such as The carbon fiber and the thermoplastic rubbers or elastomers. Thus, the engine - a design with extremely low operating noise - is mounted inside an ultra-thin chassis made of very high density MDF, plus 10 sophisticated thermoplastic elastomer absorbent feet. On the other hand, TPE conical columns support a sandwich structure subframe that combines carbon fiber and MDF to form the no longer stiffness. As far as the crucial turning system is concerned, the C-Sharp incorporates an oversized shaft combined with an acoustically inert and resonant-free ceramic bearing at the top, a configuration which, once again, allows a robust -700 grams-point Of mass in order to absorb all the surplus energy present in the surroundings of the set. The new EAT reference turntable also features a special anti-static rubber strap as well as an absolutely innovative reading arm that combines all the advantages of a unipivot type with those of a gimbal type. Also note that the C-Sharp is accompanied by an external direct current power source based on an AC generator that allows to maximize the cleaning of the signal sent to the motors.
Technical characteristics:
Absolute reference turntable.
Ultra thin profile and very high rigidity construction.
Very low noise motor; Belt drive.
Carbon fiber subfloors and MDF.
Highly inert aluminum plate with TPE inserts.
Oversized shaft with ceramic bearing.
Microprocessor controlled speed of 33/45 rpm.
Mechanical signal-to-noise ratio of 40 dB and electric of 70 dB.
External continuous power supply.
Effective length of 254 mm.
Dimensions: 500x115x435 mm (W x H x D) including connectors.
Weight: 13.5 kg the turntable and 0.5 kg the separate control panel.
Optional with Ortofon MC-Quintet Blue cartridge.
